Description

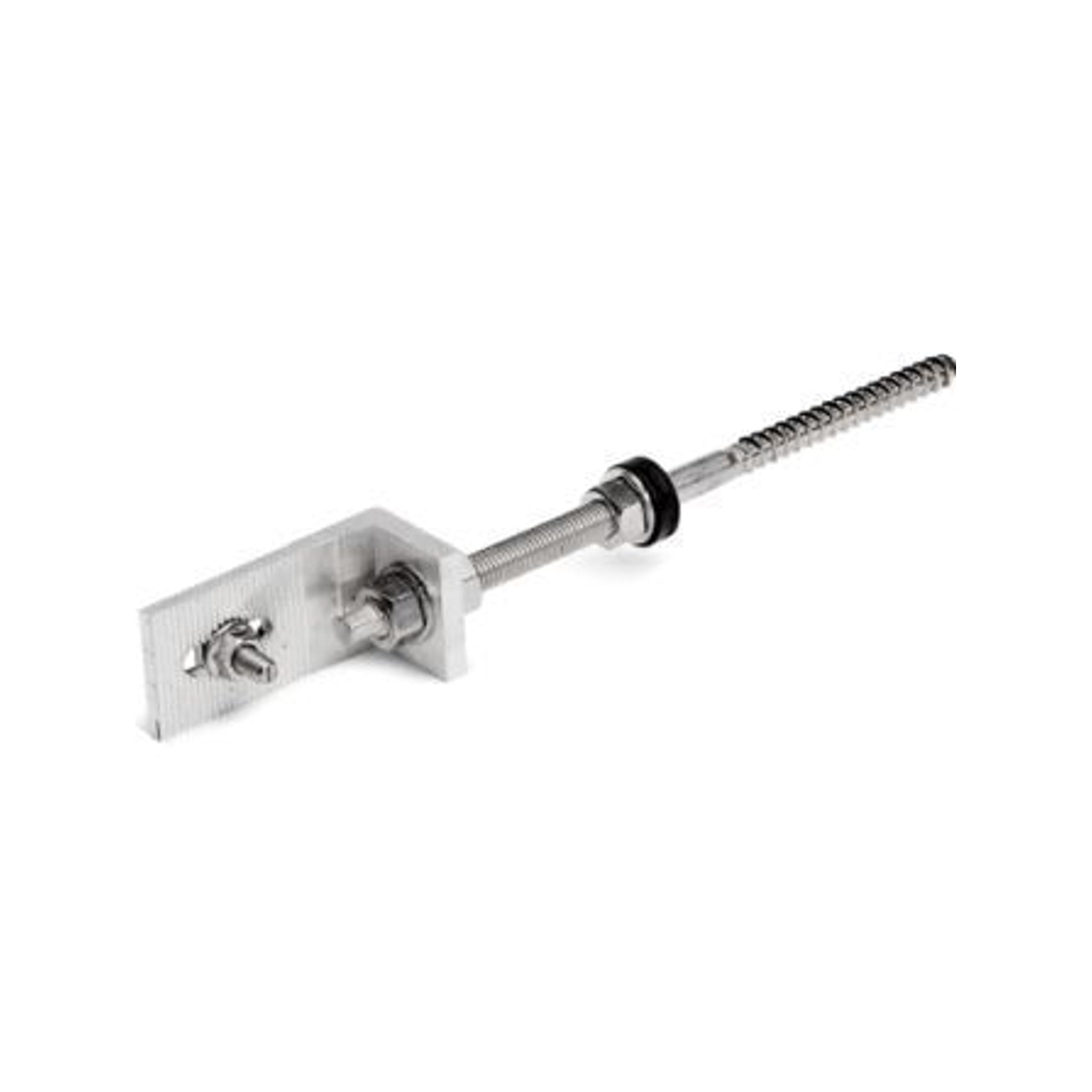

VarioSole Hanger Bolt M12 x 250 for Wood Substructure

This VarioSole Hanger Bolt is a robust and reliable component designed for the secure mounting of solar panel systems onto wooden substructures.

Key Features

• Durable Stainless Steel Construction: Made from high-quality A2 stainless steel for excellent corrosion resistance and longevity in outdoor environments.
• Integrated Sealing: Features a 25mm diameter sealing collar that is integrated to prevent water ingress, ensuring the integrity of the substructure.
• Versatile Threading: Offers an M12 metric thread and a wood thread specifically designed for secure attachment into wood, with a partial thread providing flexibility.
• Optimised for VarioSole and TriSole: Fully compatible with Renusol's VarioSole SE and TriSole product groups for seamless system integration.
• Adjustable Vertical Space: Provides 91mm of vertical adjustment space, allowing for easier installation and alignment on uneven surfaces.

Specifications

• Colour: Silver
• Type of Product: Solar Mounting Hardware
• Dimensions: 250 mm (Length) x 12 mm (Thread Diameter)
• Material: Stainless Steel A2
• Thread Diameter: M12 (11.0mm)
• Thread Type: Partial thread for Wood and Metric
• Thread Length: 100.0 mm
• Head Type: Hexagon head
• Minimum Screw Penetration: 60 mm
• Screw Tip: Wood top
• Sealing Collar Diameter: 25 mm
• Vertical Adjustment Space: 91.0 mm
• Assembly Without Pre-drilling: 8.4 mm
• Weight: 0.31 kg

Applications

Ideal for the installation of photovoltaic (PV) systems on roofs with wooden substructures. This hanger bolt is suitable for residential, commercial, and industrial solar installations where a secure and durable roof anchor is required.

What’s Included in the Box

• 1 x 900002 Hanger bolt M12 x 250
• 1 x 900007 Hammerhead bolt M8x25
• 1 x 900001 Hexag. nut DIN6923 - M8 A2-70 with FL & SZ
• 1 x 400012 Standard Bracket M12

Why Buy This Product

• High Energy Efficiency: While this is a mounting component, its robust design ensures the stability of the solar array, maximising energy capture by maintaining optimal panel positioning.
• Stylish Design: The clean, metallic finish of the stainless steel component integrates discreetly into the overall solar system aesthetic.
• Robust Durability: Constructed from A2 stainless steel, it offers excellent resistance to corrosion and weathering, ensuring a long service life for your solar installation.
• Sustainability: Contributes to sustainable energy generation by providing a reliable foundation for solar panels, reducing reliance on fossil fuels.
• Long Warranty: Renusol systems, including their mounting hardware, are designed for longevity and supported by manufacturer warranties, offering peace of mind.

Renusol mounting equipment is engineered for performance and reliability, ensuring your solar investment is secure and durable.

Documents

• Brochure Company Profile: Brochure Company Profile
• CE Declaration of Conformity Renusol Aluminium: CE Declaration of Conformity Renusol Aluminium
• CE Declaration of Conformity Steel Products: CE Declaration of Conformity Steel Products
• Data Sheet REN-860007: Data Sheet REN-860007
• Installation Manual Renusol hangerbolt: Installation Manual Renusol hangerbolt
• Installation Manual VarioSole Installation Instructions: Installation Manual VarioSole Installation Instructions
• Installation Manual With Images: Installation Manual With Images
• Installation Manual With Images for 2 Layer Installation: Installation Manual With Images for 2 Layer Installation
• MCS012 Certificate Renusol Issue 07 - August 2018: MCS012 Certificate Renusol Issue 07 - August 2018
• Technical Data for Renusol Products 09-2021 (English, German): Technical Data for Renusol Products 09-2021 (English, German)
• Test Certificate - TUV: Test Certificate - TUV
• Test Certificate TUV VarioSole: Test Certificate TUV VarioSole
• Warranty Renusol FS10-18, CS+, IS, VS+, MS+, TS+: Warranty Renusol FS10-18, CS+, IS, VS+, MS+, TS+
