Description

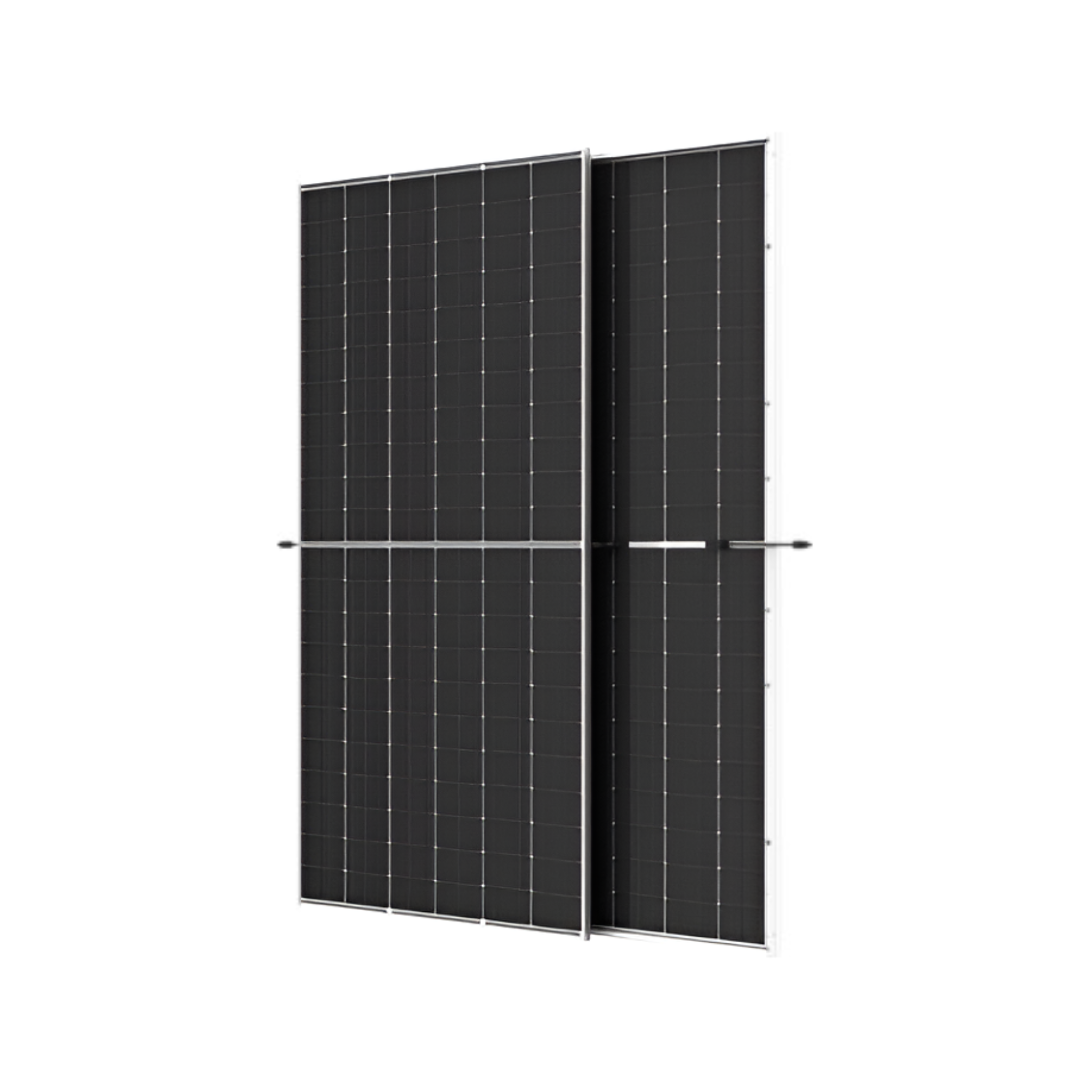

Trina 605W Vertex N Dual Glass N-Type i-TOPCon Silver Frame Bifacial Solar Panel

The Trina 605W Vertex N i-TOPCon bifacial panel combines cutting-edge N-type cell technology with dual-glass construction to deliver exceptional efficiency, reliability, and durability. Designed for high-performance applications, it offers superior energy yield, lower degradation, and resistance to harsh environmental conditions. This panel is a top choice for utility-scale, commercial, and high-spec residential projects seeking maximum long-term value.

Key Features

• High Power Output: Up to 605W with advanced N-type monocrystalline cells.

• Bifacial Design: Generates power from both front and rear sides, with up to 30% gain depending on albedo.

• i-TOPCon Technology: Higher efficiency and better temperature performance with -0.30%/°C coefficient.

• Dual Glass Durability: Increased resistance to micro-cracks, PID, and harsh environmental conditions.

• Long-Term Warranties: 12-year product warranty and 30-year linear power warranty with only 0.40% annual degradation after the first year.

• Optimised for Large-Scale Projects: Compatible with mainstream inverters, trackers, and mounting systems.

Applications

• Utility-scale solar farms

• Commercial and industrial rooftops

• Agricultural energy projects

• High-performance residential installations

Specifications

General Information

• Model: TSM-NEG19RC.20

• Cell Type: N-type monocrystalline, 132 cells

• Dimensions: 2384 × 1134 × 30 mm

• Weight: 33.7 kg

• Frame: 30 mm anodized aluminium alloy, silver finish

• Front Glass: 2.0 mm high-transmission, AR-coated heat-strengthened glass

• Back Glass: 2.0 mm heat-strengthened glass (white grid)

• Junction Box: IP68-rated

• Cables: 4 mm², length 350/280 mm (portrait), custom lengths available

• Connector: MC4 EVO2 / TS4 PLUS / TS4*

Electrical Specifications (STC)

• Maximum Power (Pmax): 605 W

• Maximum Power Voltage (Vmp): 40.5 V

• Maximum Power Current (Imp): 14.94 A

• Open-Circuit Voltage (Voc): 48.7 V

• Short-Circuit Current (Isc): 17.10 A

• Module Efficiency: 22.4%

• Power Tolerance: 0 ~ +5 W

• Bifacial Gain: Up to 30% depending on albedo

Electrical Specifications (NOCT)

• Maximum Power (Pmax): 461 W

• Vmp: 38.0 V

• Imp: 12.14 A

• Voc: 46.1 V

• Isc: 12.76 A

Operating Conditions

• Operating Temperature: -40°C to +85°C

• Maximum System Voltage: 1500 V DC (IEC/UL)

• Max Series Fuse Rating: 35 A

• Mechanical Load: Front 5400 Pa / Back 2400 Pa

• Nominal Operating Cell Temperature (NOCT): 43°C ± 2°C

Temperature Coefficients

• Pmax: -0.30%/°C

• Voc: -0.24%/°C

• Isc: +0.04%/°C

What’s Included in the Box

• 1 × Trina 605W Vertex N Dual Glass N-Type i-TOPCon Solar Panel

• Installation and safety documentation

Why Buy This Product

• Exceptional Efficiency: 22.4% efficiency ensures maximum energy generation from limited space.

• Bifacial Performance: Increases yield by harnessing reflected light from the rear side.

• Robust and Reliable: Built to withstand extreme temperatures, salt mist, ammonia, and sand.

• Long-Term Security: 30-year performance warranty with low annual degradation.

• Proven Technology: Backed by Trina Solar’s extensive R&D and global track record.

Disclaimer

All product information provided by Solareon UK is intended for general guidance only and may be subject to change or error. Solareon UK does not accept liability for any inaccuracies or omissions in the product specifications displayed. For accurate and detailed technical information, please refer to the manufacturer’s official datasheet available in the 'Downloads' section. We strongly advise confirming all critical details directly with the manufacturer prior to making purchasing or installation decisions.
