Description

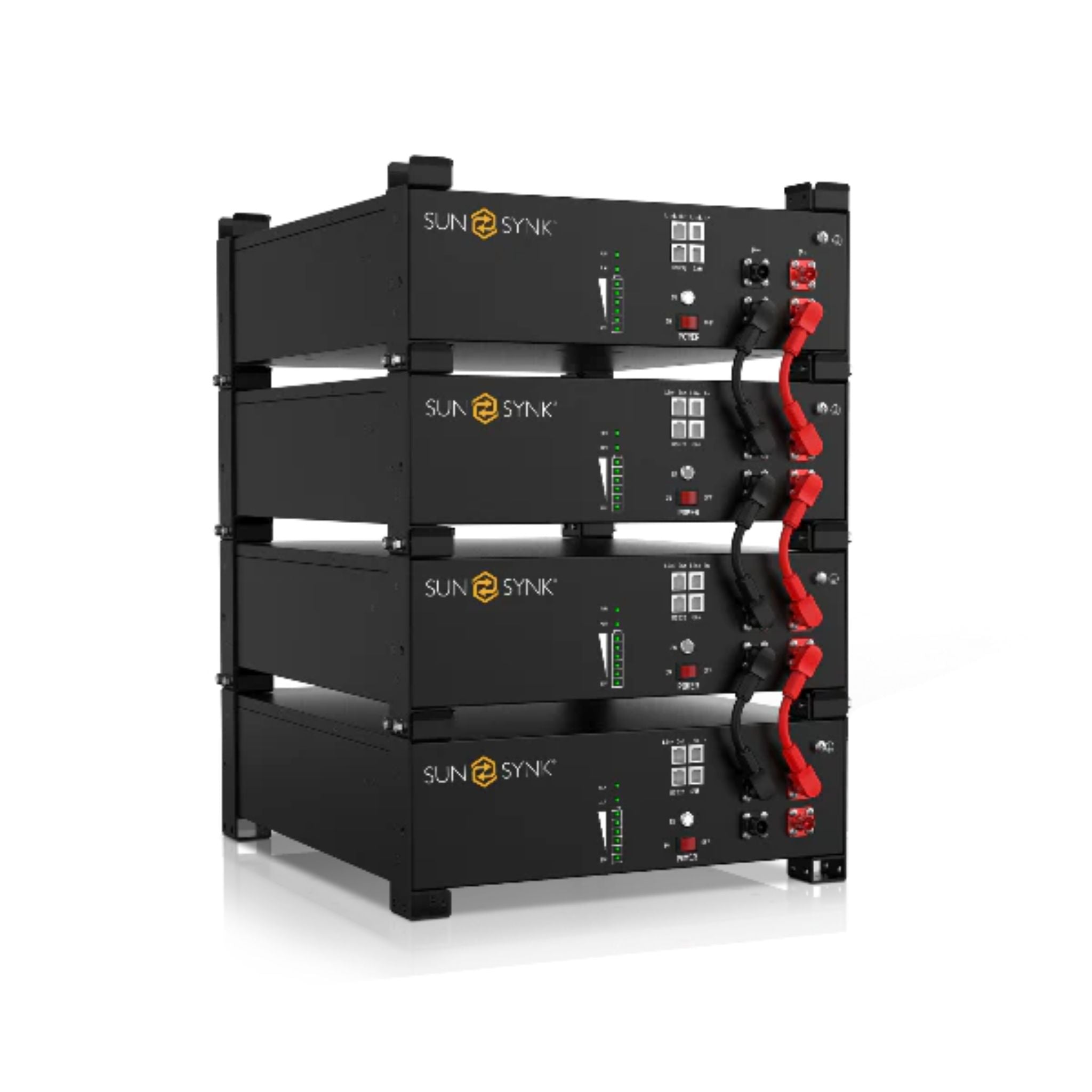

Reliable Power Storage with Sunsynk CATL Battery LFP 5.12kWh

The Sunsynk CATL Battery LFP 5.12kWh is a high-performance lithium iron phosphate (LFP) battery designed for residential and commercial energy storage applications. With a 100% depth of discharge (DoD), this battery ensures maximum energy utilization and long-lasting efficiency. Whether used for off-grid power, grid backup, or solar energy storage, the Sunsynk CATL Battery delivers reliable and sustainable power with advanced thermal stability and self-monitoring capabilities.

Key Features:

• High-performance CATL LFP battery cells – Enhanced safety, durability, and longevity.
• Expandable System – Connect up to 16 units (with the same firmware) in parallel for larger energy storage.
• Reliable and Efficient – 100% DoD ensures maximum energy output without compromising battery life.
• Smart Self-Monitoring – Built-in abnormality detection for safe and efficient operation.
• IP40 Rated – Offers protection against solid objects for increased durability.


Technical Specifications:

• Nominal Energy: 5,120 Wh
• Depth of Discharge (DoD): 100%
• Voltage: 48 V
• Continuous Discharge Rate (Normal Use): 2,400 W
• Maximum Discharge Rate (5 Minutes): 4,800 W
• Surge Discharge Rate (15 Seconds): 9,600 W
• Maximum Charge Rate (5 Minutes): 4,800 W

• Supplier Part No: Sunsynk CATL Battery LFP 5.12kWh
• Weight: 47.5 kg
• Battery Type: Lithium-Ion (LiFePO₄)
• Dimensions: 530 x 440 x 132mm

Additional Features:

• Up to 16 units with the same firmware can be paralleled for increased capacity.
• IP40 Rating – Designed for enhanced durability and protection against solid objects.
• Self-monitoring function – Automatically detects abnormalities for increased safety.
• Excellent thermal stability – Ensures reliable performance in various environmental conditions.
• Brackets not included – Please use SUN-WALL-BR brackets for installation.

What's Included in the Box:

• 1 x Sunsynk CATL Battery LFP 5.12kWh Unit
• 1 x Power and Communication Cable Set
• 1 x Installation Manual
• 1 x Warranty Card

Important Notice:

• These batteries contain CATL cells and are not intercompatible with other battery types.
• Proper installation and system compatibility should be verified before purchase.

This high-quality energy storage solution is perfect for homeowners and businesses looking to maximize energy independence, reduce electricity costs, and enhance backup power reliability.

Applications:

• Residential Energy Storage: Ideal for homeowners looking for a reliable backup power solution.
• Commercial Systems: Provides reliable energy storage and backup for commercial properties.
• Off-Grid Power Solutions: Perfect for off-grid installations where independent power supply is crucial.

Installation Requirements:

This product must be installed by a certified electrician or battery installer to ensure safety and compliance with local regulations.

Disclaimer:

All product information provided by Solareon UK is intended for general guidance only and may be subject to change or error. Solareon UK does not accept liability for any inaccuracies or omissions in the product specifications displayed. For accurate and detailed technical information, please refer to the manufacturer’s official datasheet available in the 'Downloads' section. We strongly advise confirming all critical details directly with the manufacturer prior to making purchasing or installation decisions.
