Description

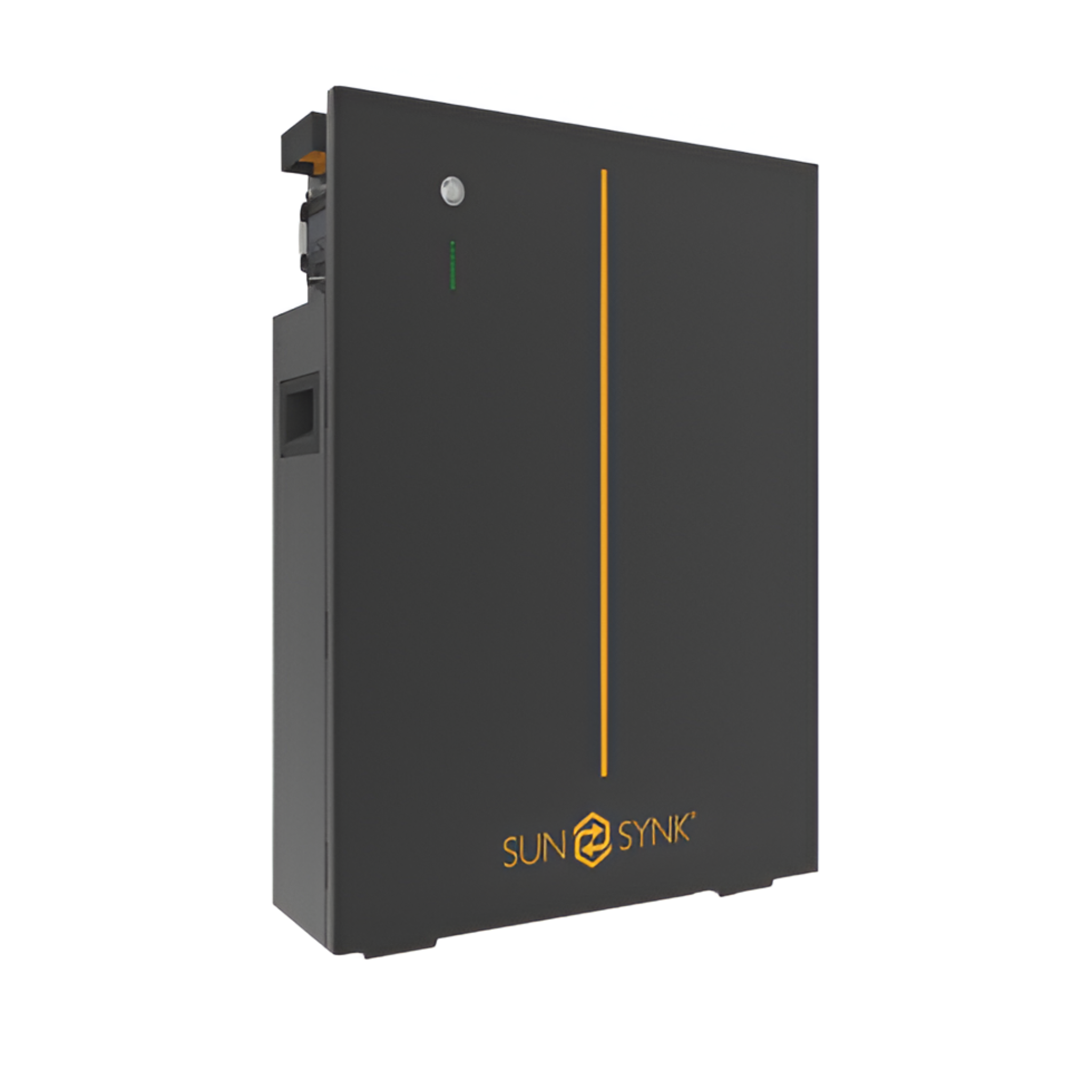

Sunsynk 10.64kWh IP65 W10.6 Battery Including Cable Sets

The Sunsynk 10.64kWh IP65 W10.6 Battery is a high-capacity lithium iron phosphate (LiFePO₄) energy storage unit designed for residential and commercial energy systems. With its robust IP65-rated enclosure, superior scalability, and smart diagnostics, this wall-mounted battery is engineered to deliver reliable, long-term performance in diverse environments. Ideal for solar-plus-storage applications, this battery comes complete with cable sets for a streamlined installation experience.

The Sunsynk W10.6 is a powerful and scalable solution built for serious energy storage demands. Whether used in a single-home setup or a large-scale energy application, it delivers efficiency, longevity, and seamless system integration.

Key Features:

• Large Capacity: 10.64kWh of energy storage with 208Ah capacity for high-demand systems
• Scalable Architecture: Connect up to 32 units in parallel to reach 340kWh of total capacity
• High Performance: Supports continuous discharge and charge rates of 5.12kW with a 7.68kW surge
• Long Battery Life: ≥6,000 cycles at 90% DoD with 70% End-of-Life capacity at 25±2°C
• Smart LED Monitoring: 5 LEDs for SOC (20%–100%) and 3 LEDs for operating, alert, and protection modes
• IP65-Rated Housing: Fully weatherproof and dust-tight design suitable for indoor or outdoor use
• Advanced Safety: Stable LiFePO₄ chemistry and protective design ensure safe long-term operation
• Flexible Mounting: Wall-mounted or 19-inch rack cabinet compatible for various installation types
• Including Long Cable Set

Specifications:

• Supplier Part No: SUNSYNK-W10.6

• Battery Type: Lithium Ion (LiFePO₄)

• Nominal Energy: 10.64kWh

• Usable Energy: 90% Depth of Discharge

• Capacity (Ah): 208

• Nominal Voltage: 51.2 V

• Operating Voltage Range: 43.2 V – 57.6 V

• Continuous Discharge Rate: 5,120 W

• Max Discharge Rate (5 min): 5,120 W

• Surge Discharge Rate (15 sec): 7,680 W

• Max Charge Rate (5 min): 5,120 W

• Scalability: Up to 32 units in parallel (up to 340kWh)

• Dimensions (W x H x D): 610 x 760 x 200 mm

• Weight: 105 kg

• IP Rating: IP65

• LED Indicators:

  • 5 LED for SOC (20%–100%)

  • 3 LED for working, alarming, and protecting

• Working Temperature:

  • Charge: -10°C to +55°C

  • Discharge: -20°C to +55°C

• Storage Temperature: 0°C to +35°C

• Humidity: 5% – 95%

• Altitude: ≤2000 m

• Cycle Life: ≥6,000 cycles (25±2°C, 90% DoD, 0.5C/1C, 70% EoL)

• Communication Port: CAN2.0, RS485

• Installation: Wall-mounted (supports 19-inch standard cabinet)

What’s Included in the Box:

• Sunsynk 10.64kWh Battery Module (IP65 Rated)

• Complete Cable Set for Installation

• Wall Mounting Kit and User Manual

Why Buy This Product?

The Sunsynk 5.32kWh W5.3 Battery is a robust and intelligent energy storage system engineered for longevity and ease of use. With high cycle endurance, scalable architecture, and a fully weather-sealed enclosure, it offers unmatched versatility for grid-tied or hybrid systems. Whether upgrading an existing setup or deploying a new one, this battery delivers safety, performance, and peace of mind.

Applications:

• Large-scale residential solar storage systems

• Commercial and industrial battery backup setups

• Off-grid and hybrid renewable energy systems

• Time-of-use energy shifting and peak shaving

• EV charging support and energy load balancing

• Remote or harsh environment energy storage

Designed with installers and end users in mind, the W10.6 offers plug-and-play integration with Sunsynk hybrid inverters and other compatible platforms via CAN2.0 or RS485 communication. Its IP65 rating ensures reliable operation in dusty, wet, or outdoor environments, while the modular design supports expansion up to 340kWh.
