Description

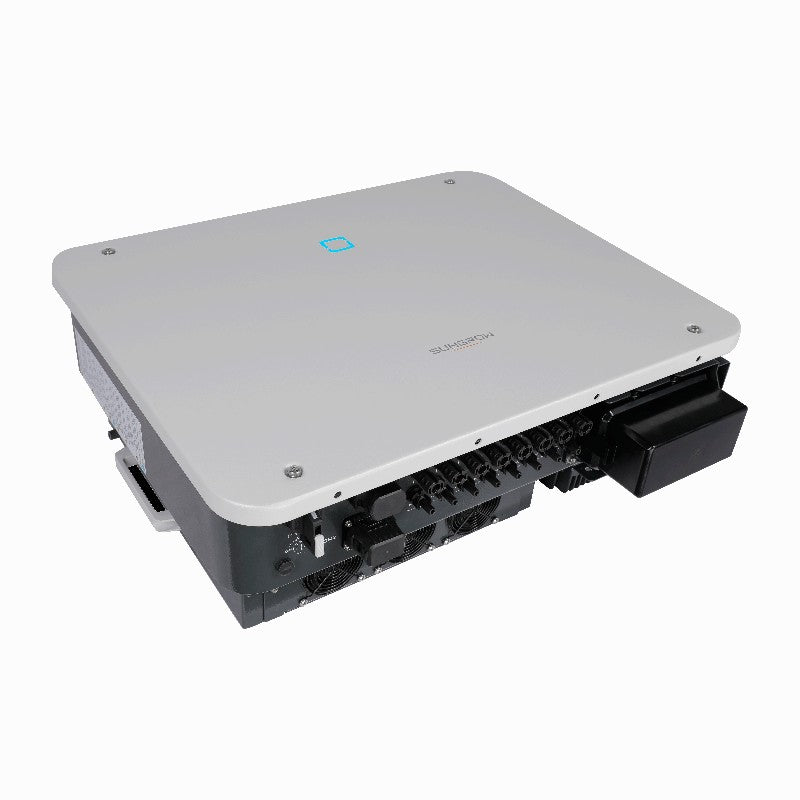

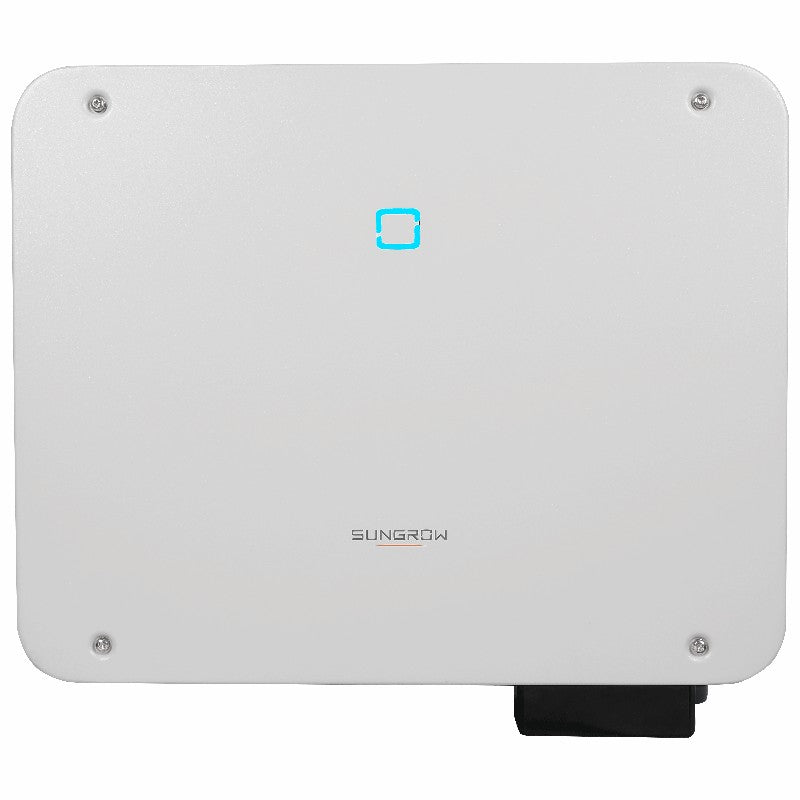

Sungrow SG75CX-P2 75kW 3-Phase String Inverter

The Sungrow SG75CX-P2 is a high-performance 75kW string inverter designed for commercial installations, offering advanced features for efficiency and safety.

Key Features

• High Yield Capability: Fully compatible with high-power PV modules (500Wp+) and features dynamic shading optimization for maximum energy harvest.
• Smart Operation & Maintenance: Includes key component diagnosis, protection, IV curve diagnosis, and grid fault record functions for proactive management.
• Reduced Installation Costs: Supports pre-assembly of AC cables with a drawer-style cable sealing plate and is compatible with large 240mm² AL AC cables.
• Enhanced Safety: Features IP66 protection, C5 anti-corrosion, DC Type I+II SPD, AC Type II SPD, and innovative AFCI 2.0 technology for superior safety.
• Flexible Design: Equipped with 8 MPPTs, allowing for more adaptable and efficient plant design.

Specifications

• Type of Product: Inverter
• Dimensions: 1020 x 795 x 360mm
• AC Max Power: 75kW
• AC Max Current: 113.9A
• Number of Phases: 3
• DC Max Power: 105kW
• MPPT Voltage Range: 180-1000V
• Number of MPPTs: 8
• Max Efficiency: 98.5%
• IP Rating: IP66
• Weight: 82kg

Applications

Ideal for commercial rooftop and ground-mount solar installations requiring a robust and high-capacity string inverter solution.

What's Included in the Box

• Sungrow SG75CX-P2 75kW 3-Phase String Inverter

Why Buy This Product

• High Energy Efficiency: Achieves up to 98.5% efficiency, maximizing energy conversion and return on investment.
• Stylish Design: While focused on performance, its compact and efficient design integrates well into commercial installations.
• Robust Durability: Built with IP66 protection and C5 anti-corrosion resistance for reliable operation in demanding environments.
• Sustainability: Contributes to clean energy generation, reducing carbon footprints and reliance on fossil fuels.
• Long Warranty: Backed by Sungrow's commitment to quality and reliability, ensuring long-term performance.

Sungrow is a global leader in clean power conversion technology, dedicated to providing innovative and reliable solar solutions worldwide.

Documents

• Data Sheet: Datasheet
• Installation Guide / User Manual: User Manual
• Configuration Guide: Configuration Guide
