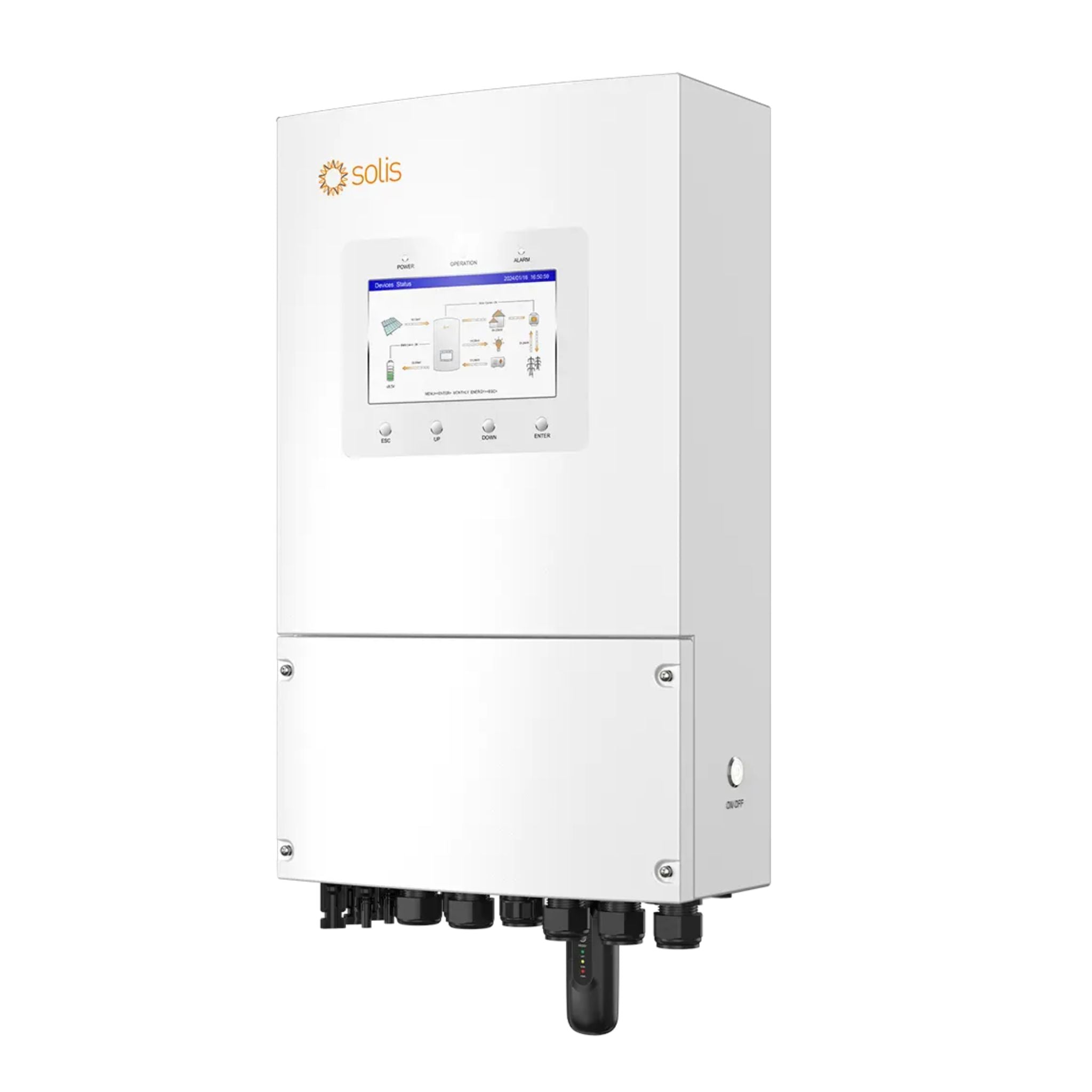

Solis S6 8kW Single Phase Hybrid Inverter (Low Voltage, AC-Coupled)

The Solis S6 8kW Single Phase Hybrid Inverter is a high-performance, low-voltage, AC-coupled solution designed for residential solar and battery storage systems. With advanced energy management capabilities, this inverter ensures optimal power conversion and storage, enhancing grid independence and self-consumption.

Featuring eight MPPT trackers, a compact design, and smart energy management, the Solis S6 efficiently integrates solar power, grid electricity, and battery storage, delivering maximum energy savings and backup support during outages.

Key Features

• 8kW Rated Power Output – Ideal for high-demand residential applications
• AC-Coupled Low Voltage – Seamless integration with existing solar systems
• Eight MPPT Trackers – Optimizes energy harvest from multiple roof orientations
• 16,000W Maximum DC Input – Supports large-scale solar arrays
• High PV Input Voltage (500V max) – Allows flexible system design
• Integrated DC Switch – Enhances system safety and compliance
• IP65 Protection Level – Durable and weather-resistant for outdoor and indoor installation
• Remote Monitoring Capability – Supports real-time tracking via SolisCloud
• 5-Year Warranty – Ensures long-term reliability and performance


Specifications

• Rated Power: 8,000 W
• Minimum PPT Voltage: 90 V
• Maximum PPT Voltage: 435 V
• DC Startup Voltage: 90 V
• DC Shutdown Voltage: 90 V
• Max Input Voltage: 500 V
• Max DC Power: 16,000 W
• Max AC Power (5 Minutes): 8,000 W
• Surge AC Power (1 Second): 8,001 W
• Max DC Current: 64 A
• Max DC Inputs: 8
• Has DC Fuses: No
• Euro Efficiency: 96.5%
• Transformer: None
• MPPT Quantity: 8
• Has Integrated DC Switch: Yes
• Connector Type: MC4
• Included Connectors: 3
• Protection Level: IP65 (Weather-resistant)
• Warranty: 5 years

• Weight: 22.2 kg
• Supplier Part No: S6-EH1P8K-L-PLUS


Applications

• Large-Scale Energy Storage Systems
• Commercial and Industrial Energy Solutions
• Microgrids and Off-Grid Systems
• Renewable Energy Integration
• Backup Power and Energy Resilience


What’s Included

• Solis S6 8kW Single Phase Hybrid Inverter
• MC4 Connectors (x3)
• Installation Manual & User Guide


The Solis S6 8kW Single Phase Hybrid Inverter is a powerful, efficient, and scalable solution for homeowners looking to maximize solar energy utilization and battery storage while ensuring long-term energy security.

Important Notice:

• Does not include a DC cable for connecting to battery storage.
• Designed to work with existing solar installations, allowing easy system upgrades with battery storage.
• Must be installed by a certified electrician or solar technician.
• Supports high PV input and multiple MPPTs for future system expansion.
• Compatible with SolisCloud for remote access and system optimization.

Need More Information?

For further details, please refer to the attached datasheet and user manuals for comprehensive specifications, installation guidelines, and troubleshooting information.
