Description

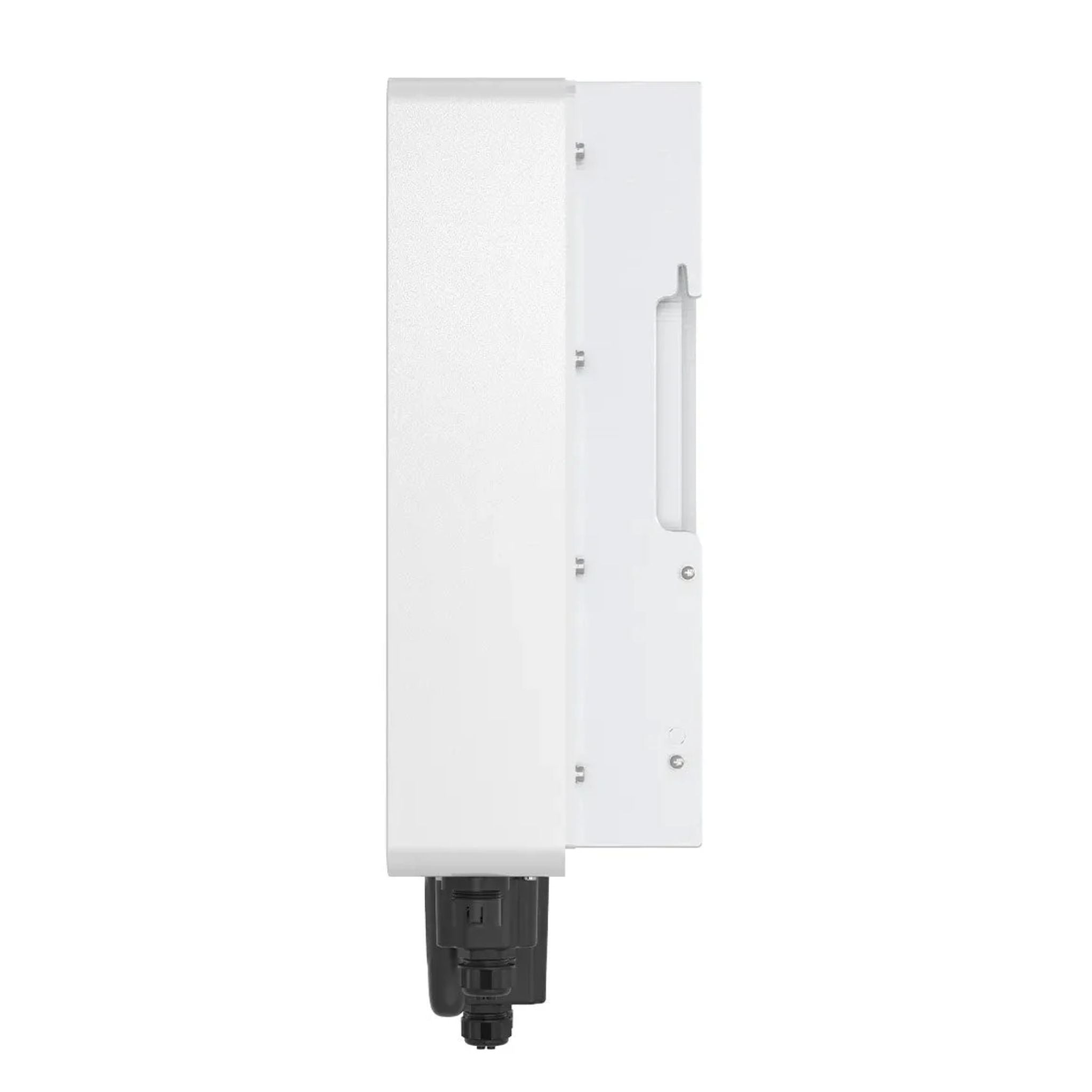

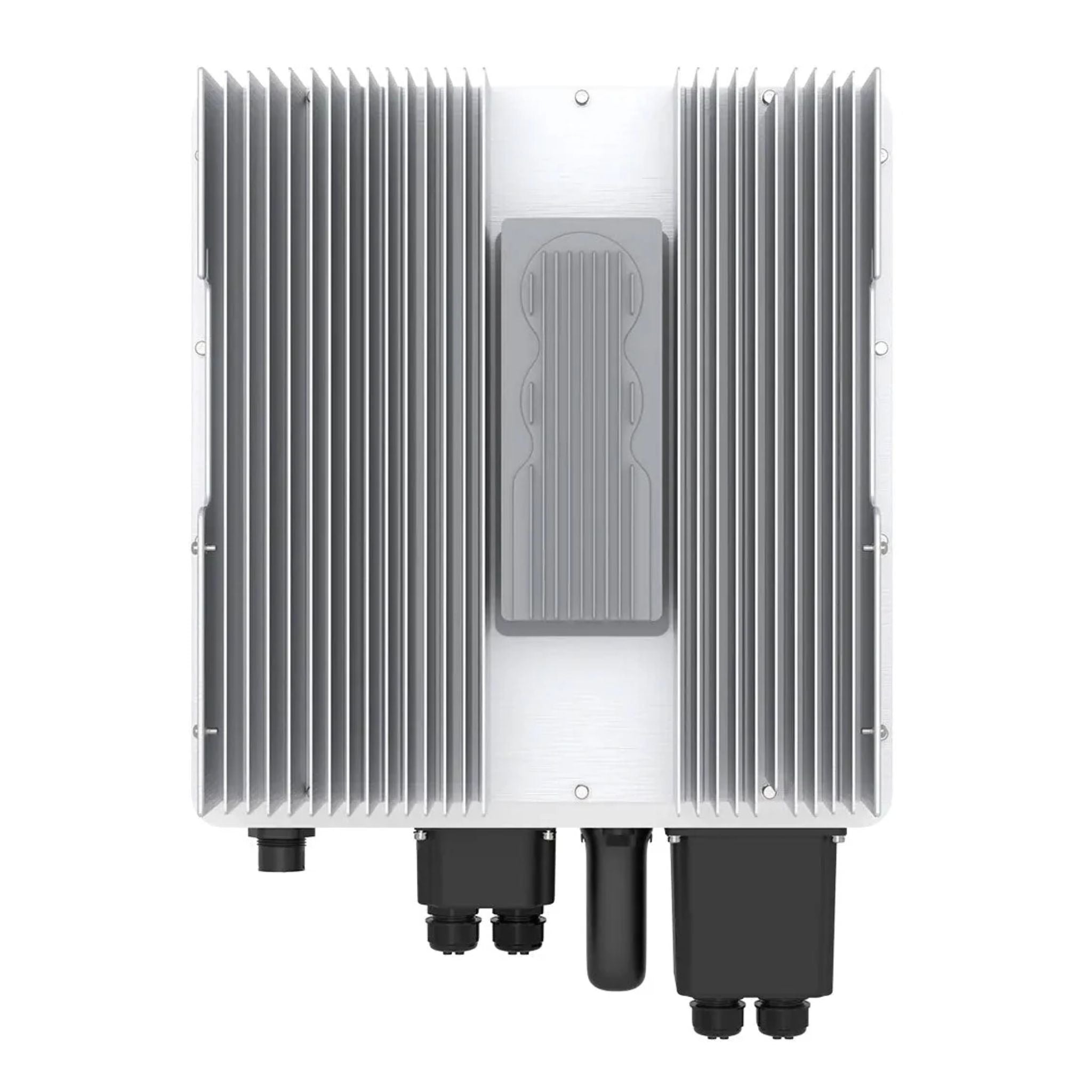

Solis S6 5kW Single Phase Hybrid Inverter (Low Voltage AC-Coupled)

The Solis S6 5kW Single Phase Hybrid Inverter is a high-performance and reliable solution for managing energy in residential solar systems. Designed for low-voltage AC-coupled applications, it allows users to efficiently store and use solar energy while ensuring energy security during grid outages.

This hybrid inverter is perfect for retrofitting battery storage to existing solar systems, delivering superior battery-to-AC efficiency (>93.5%), seamless grid connection, and comprehensive protection features for maximum safety and durability.

Key Features:

• 5,000 W rated output power for single-phase applications
• AC-coupled design for retrofitting battery storage to existing systems
• 125 A max charge/discharge current for fast and efficient battery management
• High battery-to-AC conversion efficiency (>93.5%)
• Comprehensive safety features: short circuit, temperature, and battery over/under voltage protection
• Compatible with most low-voltage lithium-ion batteries


Technical Specifications:

• Rated Output Power: 5,000 W
• Operation Phase: 1/N/PE (Single Phase)
• Rated Grid Voltage: 220 V / 230 V
• Grid Voltage Range: 187 – 253 V
• Rated Grid Frequency: 50 Hz / 60 Hz
• Power Factor: > 0.99 (0.8 leading – 0.8 lagging)
• THDi: < 3%
• Battery Type: Lithium-ion
• Battery Voltage Range: 40 – 60 V
• Max Charge/Discharge Current: 105 A
• Communication Protocol: CAN
• Max Input Current: 22.8 A / 21.8 A
• Frequency Range: 45 – 55 Hz / 55 – 65 Hz
• Efficiency (Battery to AC): > 93.5%
• Protection Class: I
• Over Voltage Category: DC II / AC III

Safety Features:

• Battery Reverse Protection
• Battery Over/Under Voltage Protection
• Short Circuit Protection
• Output Overcurrent Protection
• Temperature Protection

Physical Specifications:

• Dimensions (W × H × D): 440 × 465 × 192 mm
• Weight: 19.9 kg
• Supplier Part No: S6-EA1P5K-L

What’s Included in the Box:

• Solis S6 5kW Single Phase Hybrid Inverter
• Mounting bracket and installation kit
• User manual and quick start guide
• Communication cables (CAN) for battery integration
• Safety labels and hardware accessories


Applications:

• Residential Solar Systems: Store and manage solar energy for self-consumption.
• Retrofit Battery Storage: Easily integrates with existing PV systems for battery storage.
• Backup Power: Provides reliable backup energy during grid outages.
• Energy Cost Savings: Reduce grid reliance and lower energy bills by using stored energy.


Why Buy the Solis S6 5kW Single Phase Hybrid Inverter?

• High Efficiency: >93.5% battery-to-AC efficiency ensures you get the most from your stored energy.
• Comprehensive Safety Features: Protects against battery over/under voltage, short circuit, output overcurrent, and temperature issues.
• Flexible Battery Compatibility: Supports most low-voltage lithium-ion batteries.
• Compact and Lightweight: Easy to install with a space-saving design (19.9 kg).
• Reliable Brand: Solis is a globally recognized leader in solar inverter technology.

Installation Requirement

This product must be installed by a certified electrician or solar installer to ensure safe and compliant operation. Professional installation is essential for warranty coverage and system performance.

Whether you want to reduce your energy bills or increase energy independence, the Solis S6 is a smart, future-proof choice.
