Description

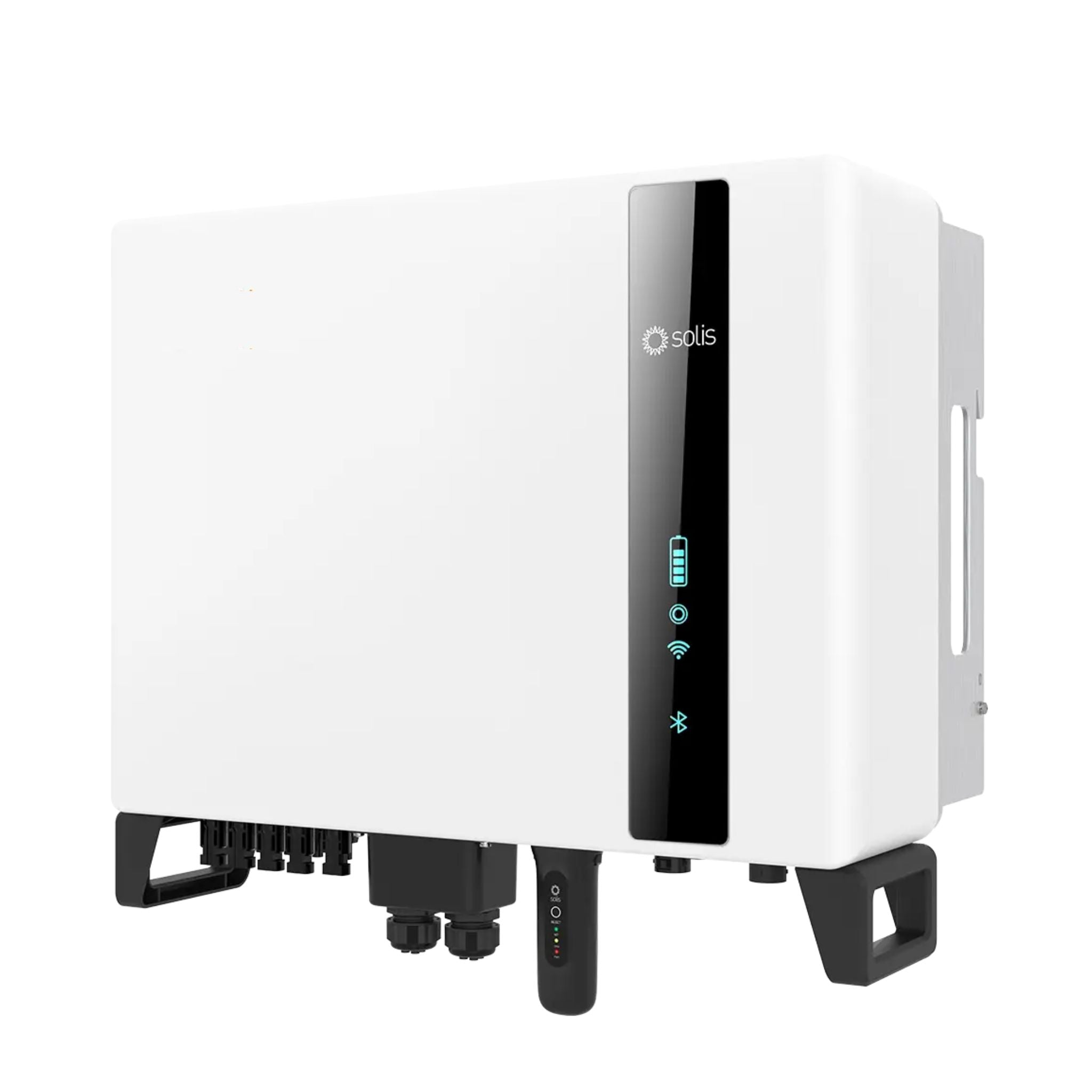

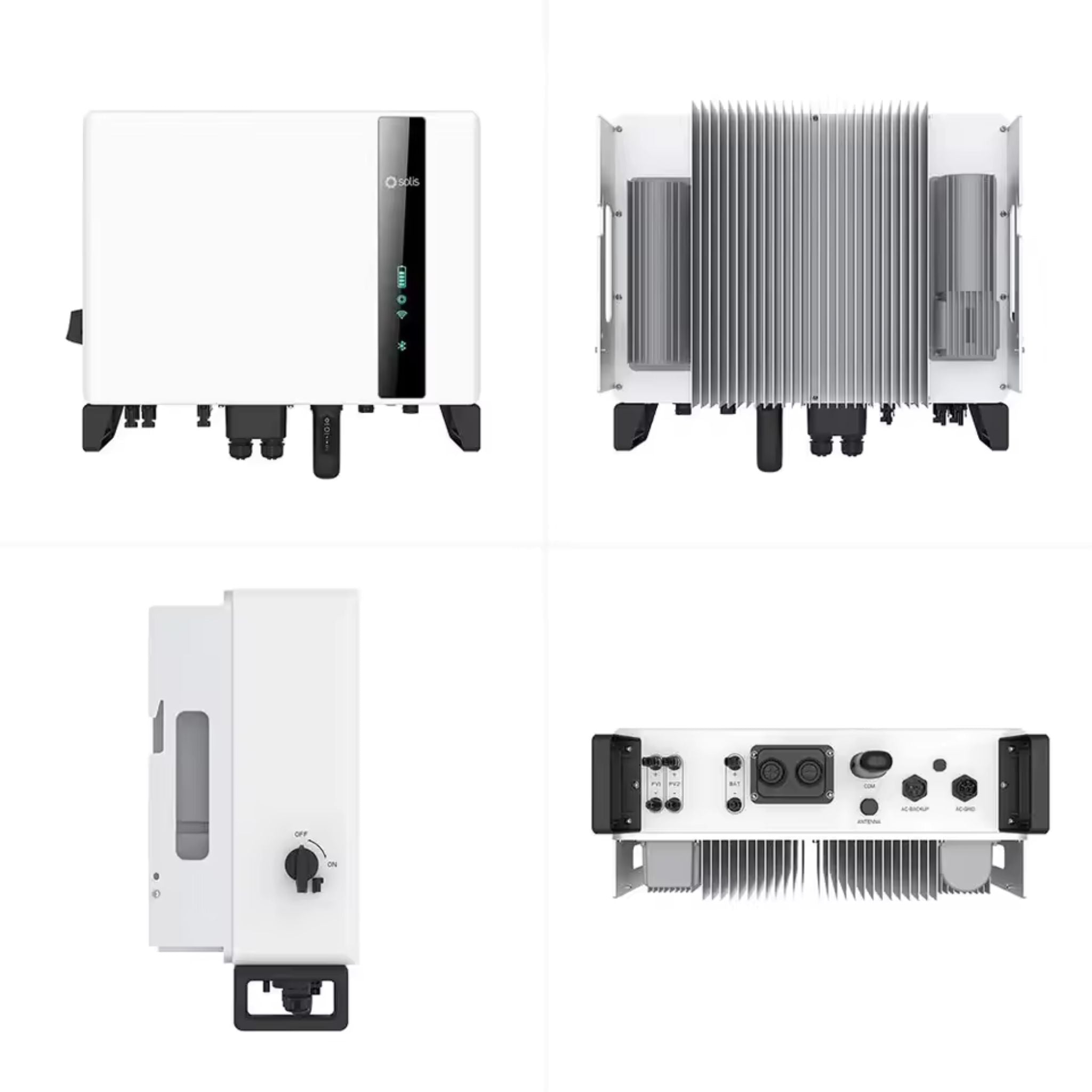

Powering Small-Scale Energy Solutions with Solis S6 5kW 3PH Hybrid Inverter with 3PH Meter

The Solis S6 5kW 3-Phase Hybrid Inverter is an advanced energy management solution designed for residential and small commercial solar installations. With a high-efficiency design and support for battery storage, this hybrid inverter allows seamless integration of solar power, grid electricity, and energy storage for maximum energy independence.

Equipped with three MPPT trackers and a three-phase smart meter, the Solis S6 ensures optimal energy utilization, offering superior flexibility and compatibility with various solar system configurations.

Key Features

• 5kW Rated Power Output – Suitable for residential and small commercial applications
• High PV Input Voltage (1,000V max) – Supports longer PV string configurations
• 3 MPPT Trackers – Maximizes energy harvest from different roof orientations
• 10,000W Maximum DC Input – Allows oversizing of the solar array for greater efficiency
• Integrated 3-Phase Meter – Enables real-time energy monitoring and export control
• Backup Power Capability – Ensures energy availability during grid outages
• High Efficiency (97.5%) – Reduces energy losses for greater savings
• Integrated DC Switch – Enhances system safety and compliance
• IP65 Protection – Weather-resistant for indoor or outdoor installation
• 5-Year Warranty – Ensures long-term reliability


Specifications

• Rated Power: 5,000 W
• Minimum PPT Voltage: 160 V
• Maximum PPT Voltage: 850 V
• DC Startup Voltage: 160 V
• DC Shutdown Voltage: 160 V
• Max Input Voltage: 1,000 V
• Max DC Power: 10,000 W
• Max AC Power (5 Minutes): 5,500 W
• Surge AC Power (1 Second): 6,000 W
• Max DC Current: 48 A
• Max DC Inputs: 3
• Has DC Fuses: No

• Connector Type: MC4
• Included Connectors: 4
• Protection Level: IP65 (Suitable for outdoor and indoor installation
• Euro Efficiency: 97.5%
• Transformer: None
• MPPT Quantity: 3
• Has Integrated DC Switch: Yes
• Warranty: 5 years
• Certifications: CE, IEC, G98/G99 compliant

• Weight: 31.8 kg
• Part No: SOL-S6-EH3P-5.0K-H-UK

Applications

• Small Commercial and Industrial Energy Systems
• Solar Energy and Storage Solutions
• Backup Power Solutions
• Off-Grid and Microgrid Systems

What’s Included

• Solis S6 5kW 3PH Hybrid Inverter
• User Manual & Installation Guide
• MC4 Connectors
• Integrated 3PH Meter
• The inverter is supplied including the S2-WL-ST data logger stick (WiFi & LAN) and a 3PH meter from Eastron

Why You Should Buy the Solis S6 5kW 3PH Hybrid Inverter with 3PH Meter

• High Efficiency: With a Euro efficiency rating of 97.5%, this inverter ensures low power loss, making it ideal for smaller commercial applications.
• Enhanced Monitoring: The integrated 3-phase meter allows for comprehensive energy usage tracking, helping you optimize your energy management and reduce overall costs.
• Flexibility in Energy Storage: Compatible with high-voltage battery storage solutions, it offers long-term scalability as your energy needs grow.
• Superior Solar Harvesting: Three MPPTs maximize solar energy capture, ensuring optimal performance even under less-than-ideal conditions.
• Durable and Safe: With IP65 weatherproofing and integrated safety features, this inverter is designed for reliable performance in various environments.
• Future-Proof: With a 5-year warranty, you can be assured that this inverter will continue to meet your energy needs for years to come.

Certifications

• G99 Certified – Ensures compliance with UK grid connection standards for large-scale systems.
• EN 50549-1 – Grid connection requirements for generating units in low-voltage installations.
• CE Certification – Conforms to European safety, health, and environmental protection standards.
• IEC 62109-1 / IEC 62109-2 – Safety standards for power converters in renewable energy systems.

The Solis S6 5kW 3-Phase Hybrid Inverter is a powerful, efficient, and flexible solution for solar energy management, offering high performance, grid independence, and long-term reliability for homeowners and businesses.

Important Notes

• Battery Compatibility – Can integrate with compatible high-voltage battery storage systems for energy storage and backup.
• Professional Installation Required – Must be installed by a certified electrician or solar technician.
• System Expansion – Supports larger PV arrays with up to 10,000W of DC power input for future scalability.
• Real-Time Monitoring – Compatible with SolisCloud for remote monitoring and system optimization.

Need More Information?

For detailed specifications, installation guidelines, and troubleshooting support, please refer to the attached datasheet and user manuals.
