Description

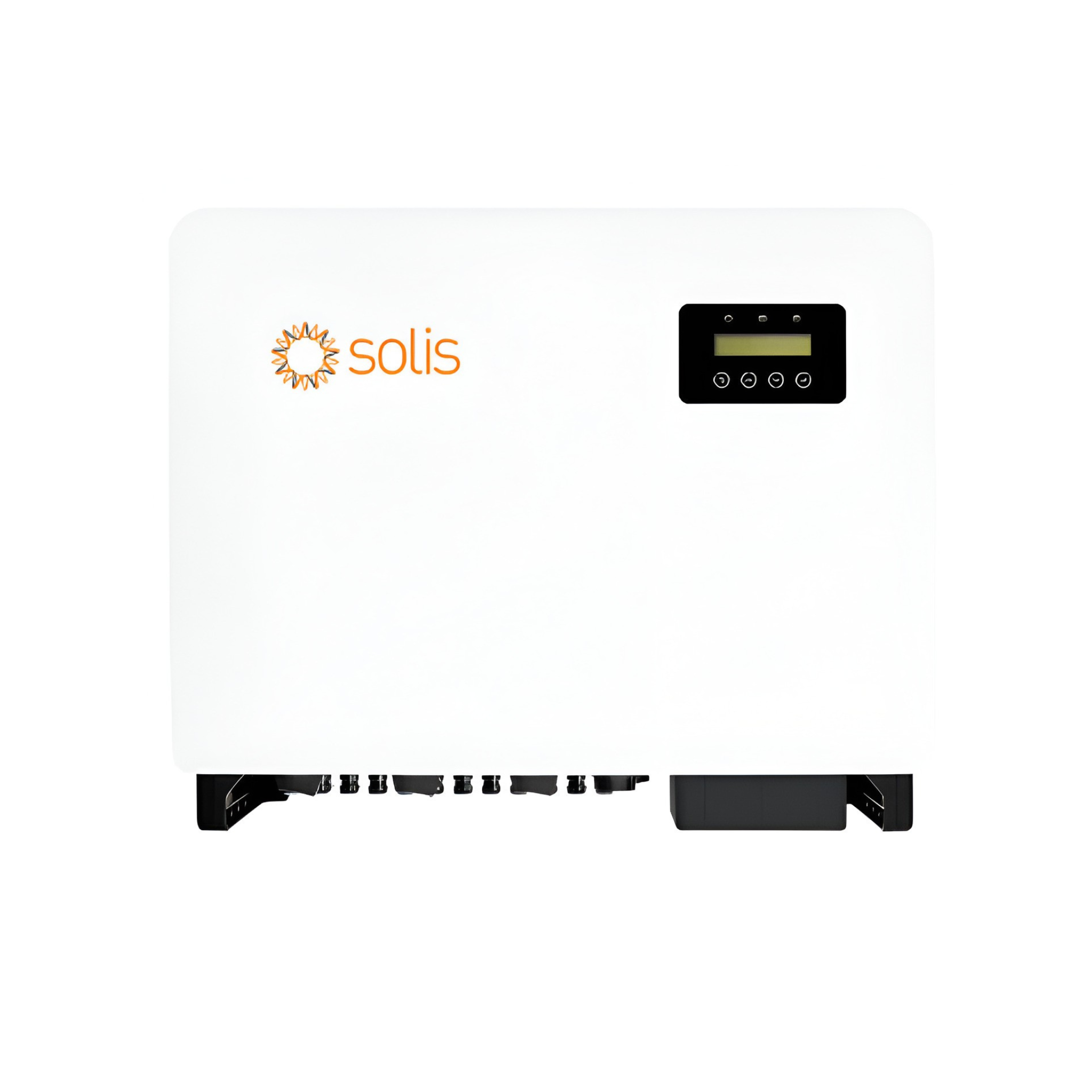

Solis S5 50kW Three Phase 5x MPPT Inverter with DC

The Solis S5 50kW Three Phase Inverter offers exceptional performance for medium to large-scale solar PV systems. With five independent MPPTs, high efficiency, and a maximum DC input of 75,000W, it delivers optimal energy harvesting and system design flexibility. Ideal for commercial rooftops and ground-mount projects.

Key Features

• 50kW rated power with 55kW max output (5 minutes)

• 5 MPPTs for precise energy tracking and string configuration flexibility

• Supports up to 75,000W of PV input

• Maximum DC voltage of 1,100V

• Integrated DC switch for enhanced safety

• Euro efficiency of 98.3%

• IP66 rated for outdoor installations

• MC4 connectors included (20)

• Fanless, transformerless design reduces maintenance

• Backed by a 5-year manufacturer warranty

Specifications

• Rated AC Power: 50,000 W

• Max DC Input Power: 75,000 W

• MPPT Voltage Range: 195 – 1,000 V

• DC Startup Voltage: 195 V

• DC Shutdown Voltage: 180 V

• Max DC Voltage: 1,100 V

• Max DC Current: 160 A

• Number of MPPTs: 5

• Max DC Inputs: 10

• Max AC Power (5 Min): 55,000 W

• Surge AC Power (1 Sec): 55,000 W

• Euro Efficiency: 98.3%

• Integrated DC Switch: Yes

• Connectors Included: 20 × MC4

• Transformer: None

• Weight: 55 kg

• Warranty: 5 years

• Dimensions: 691 x 578 x 338 mm

Applications

• Commercial rooftop systems

• Large-scale industrial solar plants

• Agricultural installations

• Ground-mounted PV projects

Why Choose This Product

• Superior conversion efficiency for high-yield performance

• Flexible configuration with 5 MPPTs and 10 DC inputs

• Robust design for outdoor and indoor environments

• Reliable brand with proven results in utility and commercial markets

• Simplified installation with integrated protection and user-friendly design

What’s Included in the Box

• 1 × Solis S5 50kW Three Phase Inverter

• 20 × MC4 DC connectors

• Integrated DC switch

• Installation and user documentation
