Description

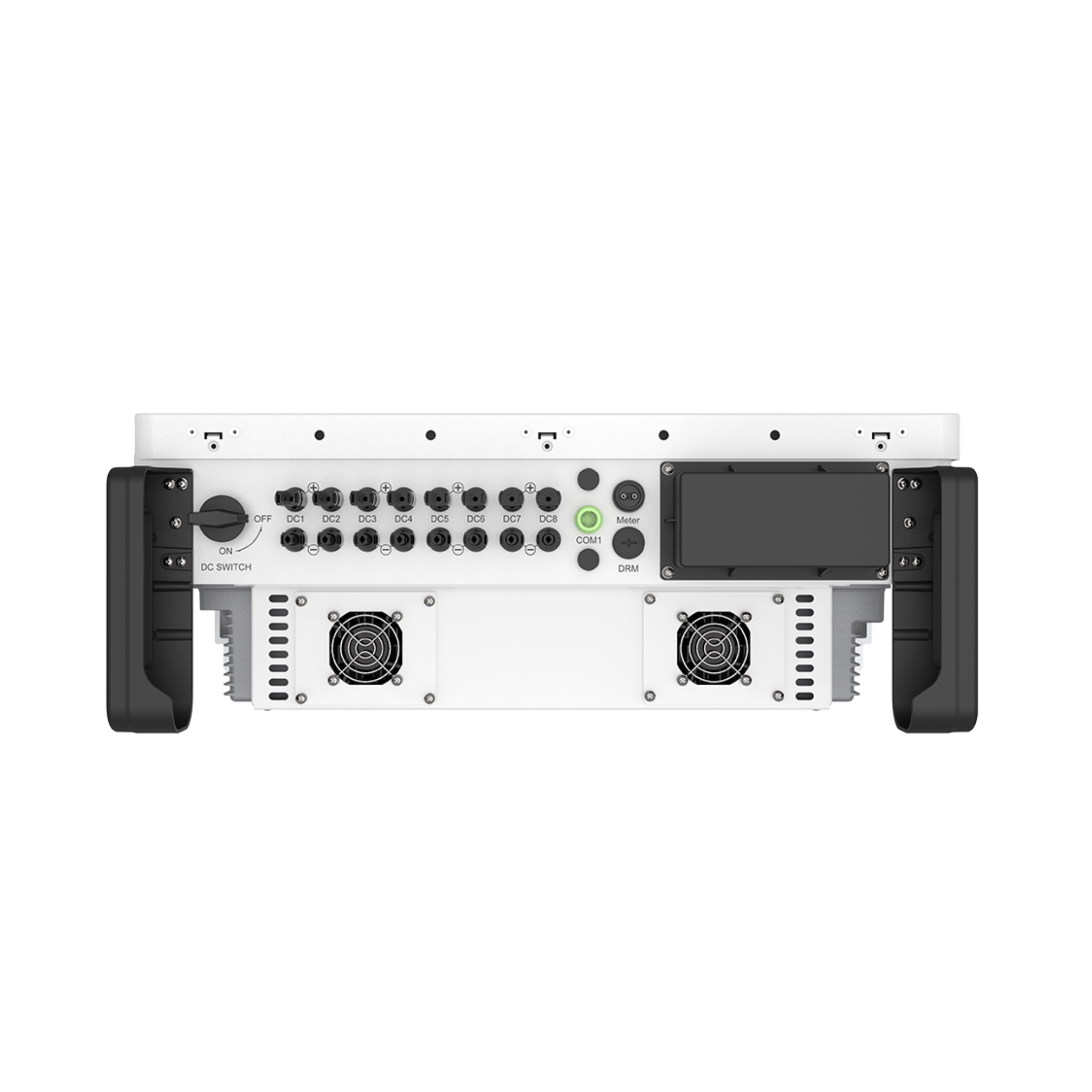

Solis S5 40kW Three Phase Quad MPPT Inverter with DC

The Solis S5 40kW Three Phase Inverter delivers exceptional performance for commercial and industrial solar energy systems. Designed with four MPPTs and an impressive 60kW DC input capacity, it offers great flexibility in system design and efficient energy conversion. Its compact size and high protection class make it suitable for challenging environments.

Key Features

• 40kW rated power with 44kW max output (5 minutes)

• 4 independent MPPTs for advanced energy tracking

• Supports up to 60,000W of PV input

• Ultra-high efficiency up to 98.3% (Euro)

• IP66 rated for outdoor installations

• Integrated DC switch and surge protection

• Lightweight and compact for easier installation

• No transformer for reduced losses and quiet operation

• Backed by a 5-year manufacturer warranty

Specifications

• Rated AC Power: 40,000 W

• Max DC Input Power: 60,000 W

• MPPT Voltage Range: 200 – 1,000 V

• DC Startup Voltage: 200 V

• DC Shutdown Voltage: 180 V

• Max DC Voltage: 1,100 V

• Max DC Current: 128 A

• Number of MPPTs: 4

• Max DC Inputs: 8

• Max AC Power (5 Min): 44,000 W

• Surge AC Power (1 Sec): 44,000 W

• Euro Efficiency: 98.3%

• Integrated DC Switch: Yes

• Connectors Included: 16 × MC4

• Transformer: None

• Weight: 46 kg

• Warranty: 5 years

• Dimensions: 647 x 629 x 252 mm

Applications

• Commercial rooftop solar installations

• Ground-mounted PV systems

• Agricultural and industrial solar plants

• Grid-tied large-scale energy projects

Why Choose This Product

• High power output and efficiency for demanding commercial systems

• Flexible design options with 4 MPPTs

• Easy installation and maintenance

• Reliable performance in harsh outdoor conditions

• Excellent value backed by Solis’ proven reputation

What’s Included in the Box

• 1 × Solis S5 40kW Three Phase Inverter

• 16 × MC4 DC connectors

• Integrated DC switch

• User manual and installation documentation

Additional Information – G99 Certified
This product is G99 Certified and must be installed by a qualified electrician/technician in accordance with local wiring regulations and standards. SegenSolar will not be liable for any malfunctions resulting from incorrect installation.

Please note: This inverter does not include a data logger, CT, meter, or export power manager. For export power control of one inverter, use the SOL-METER-3PH-CT3 (requires a data logging stick). For more than one inverter, use the EPM3-5G-PLUS, which has a built-in data logger. All accessories are sold separately.
