Description

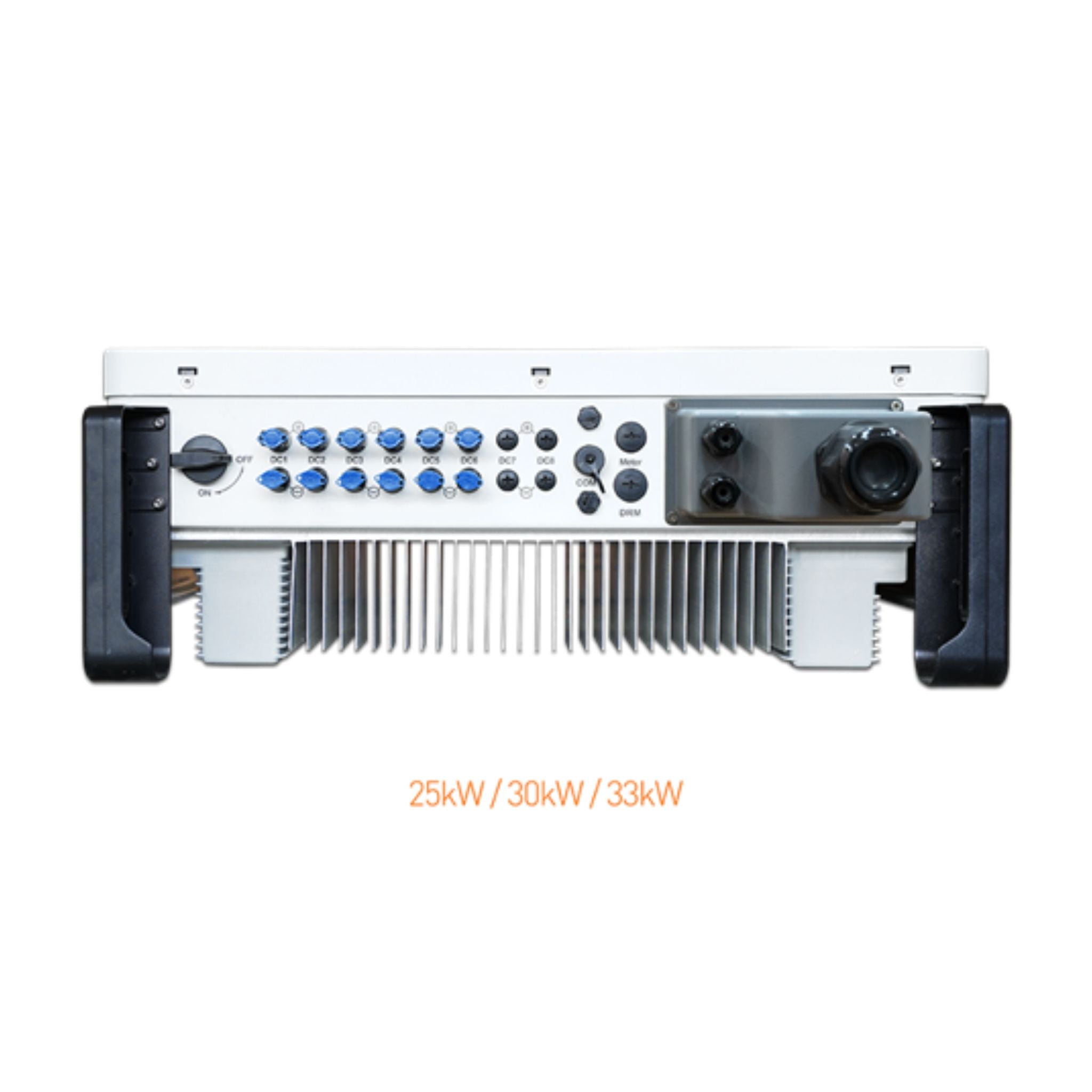

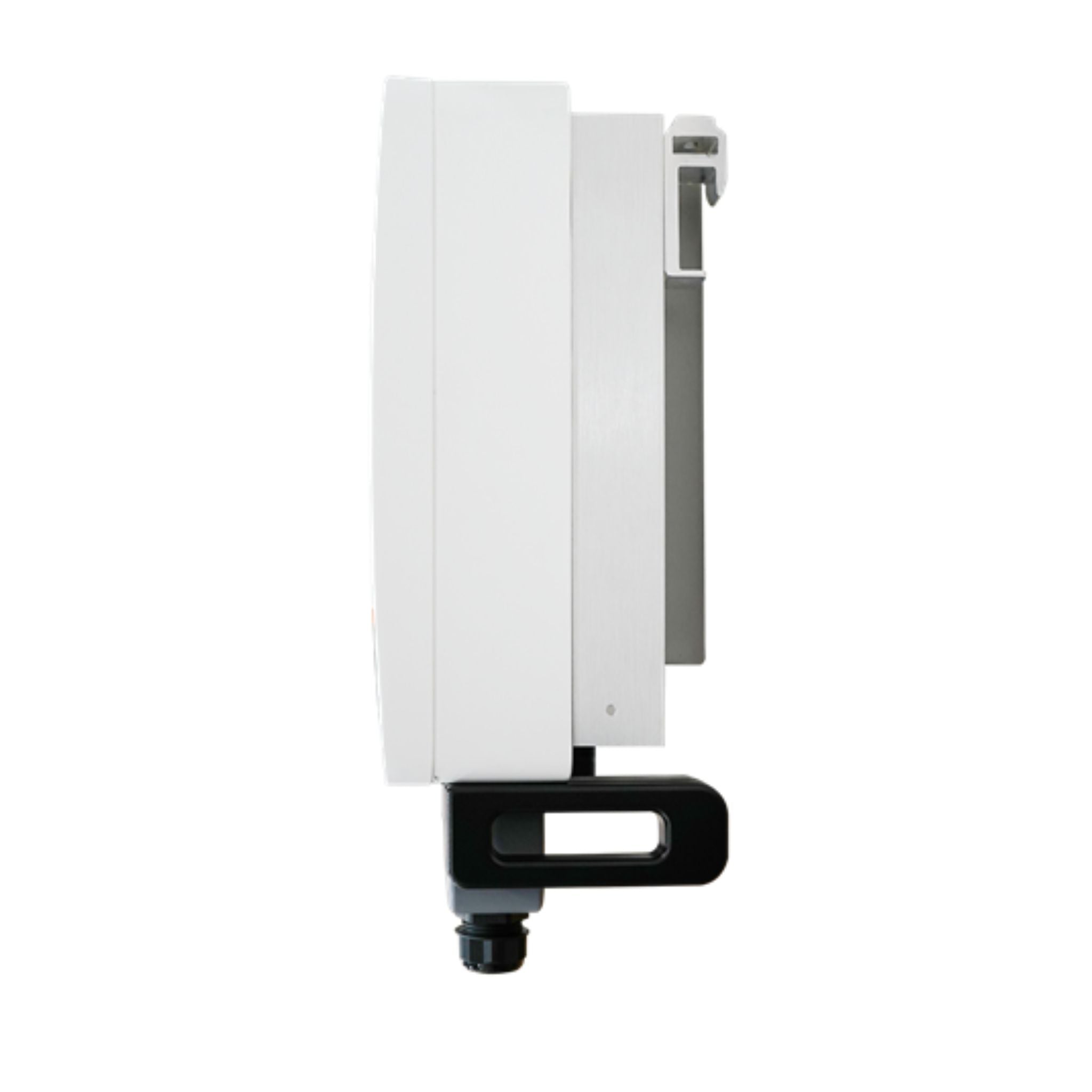

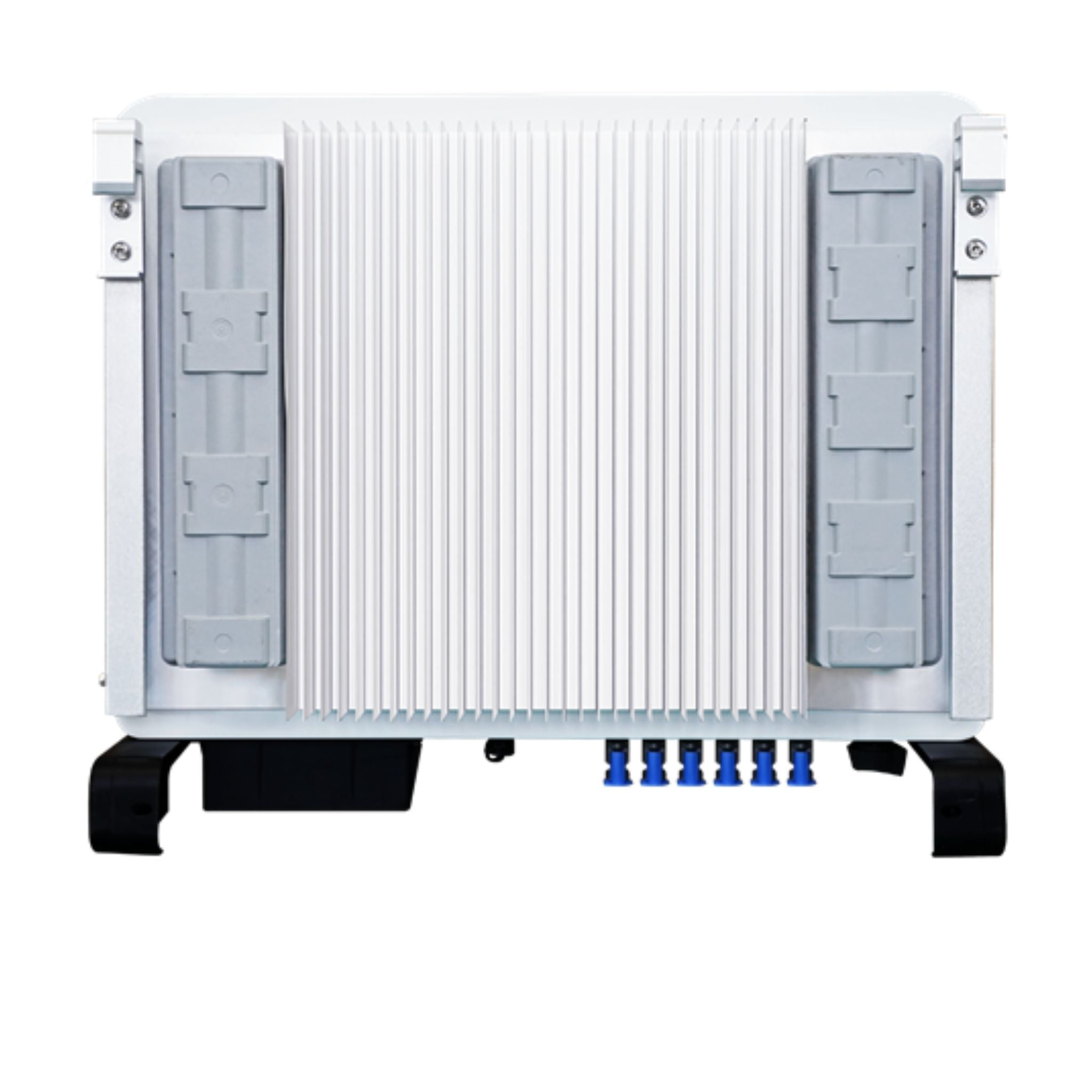

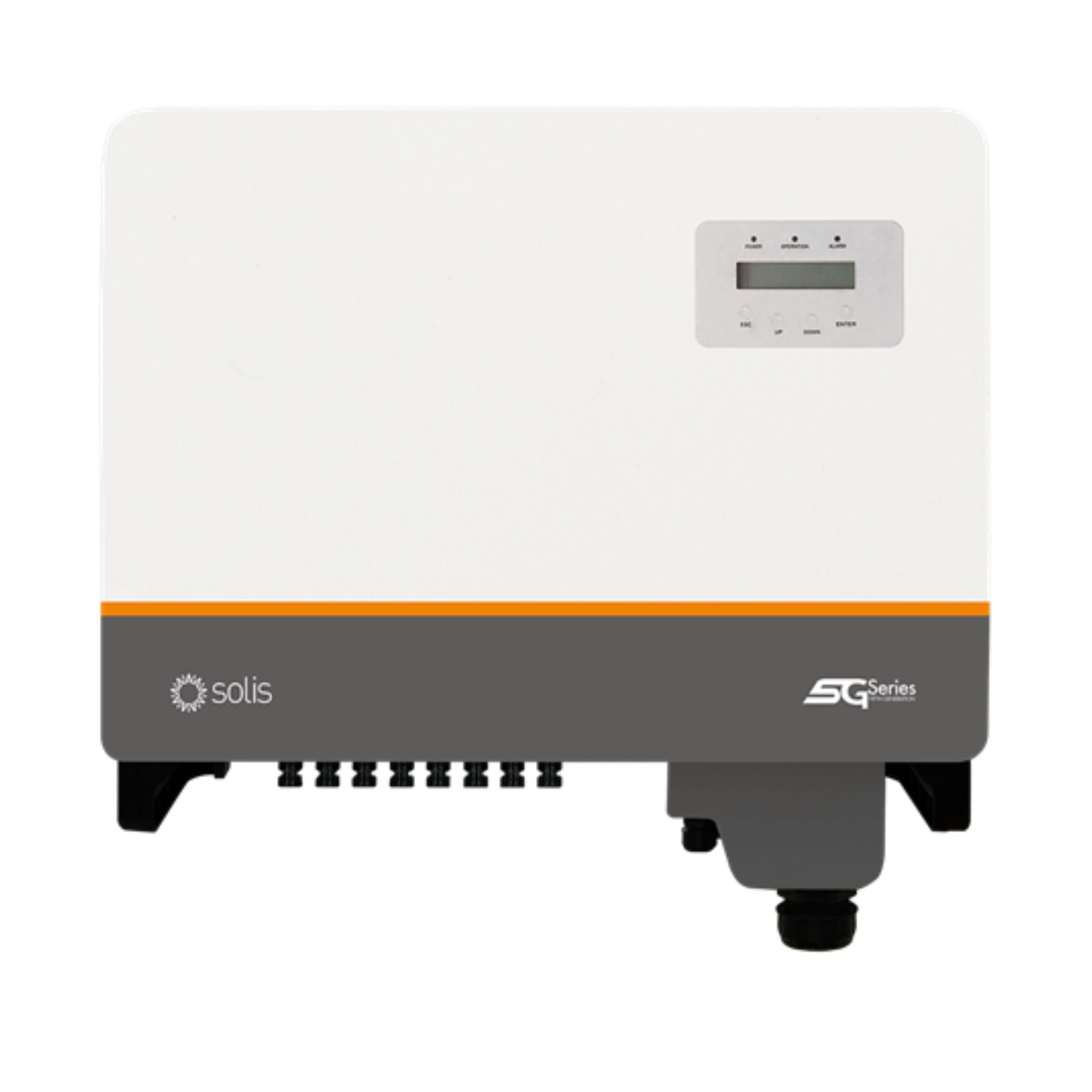

Solis S5 30kW Three Phase Triple MPPT Inverter with DC Switch

The Solis S5 30kW Three Phase Inverter is a high-efficiency solar inverter designed for commercial and large-scale residential systems. With triple MPPT functionality and advanced grid management features, it delivers reliable and intelligent energy conversion for modern PV installations.

Product Features:

• Triple MPPT design for optimal energy harvesting across multiple strings

• High DC input voltage range from 200V to 1,000V for flexible system design

• Supports a maximum DC input power of up to 45,000W

• Integrated DC switch enhances system safety and simplifies installation

• High Euro efficiency of 98.1% ensures excellent performance and energy yield

• Compact and robust design with 6 independent DC inputs and 12 MC4 connectors

• IP65 rated for outdoor installation in diverse environmental conditions

• Backed by a 5-year warranty for peace of mind


Specifications:

• Supplier Part No: S5-GC30K

• Weight: 43 kg

• Length: 0.72 m

• Rated Power: 30,000 W

• Min PPT Voltage: 200 V

• Max PPT Voltage: 1,000 V

• DC Startup Voltage: 200 V

• DC Shutdown Voltage: 180 V

• Max Input Voltage: 1,100 V

• Max DC Power: 45,000 W

• Max AC Power (5 Minutes): 30,000 W

• Surge AC Power (1 Second): 33,000 W

• Max DC Current: 96 A

• Max DC Inputs: 6

• Has DC Fuses: No

• Connector Type: MC4

• Included Connectors: 12

• Euro Efficiency: 98.1%

• Transformer: None (Transformerless)

• MPPT Quantity: 3

• Integrated DC Switch: Yes

• Warranty: 5 years

What’s Inside the Box?

• 1x Solis S5 30kW Three Phase Triple MPPT Inverter

• Pre-installed DC Switch
• 12 x MC4 Connectors
• User Manual & Installation Guide
• Mounting Bracket & Hardware Kit
• Warranty Registration Card


Ideal for commercial or industrial solar systems, the Solis S5 30kW Inverter supports up to 45,000W of DC input and maintains grid stability with rapid MPPT tracking. With multiple string inputs and a broad MPPT voltage range, this inverter is engineered for complex array configurations and maximum energy production.
