Description

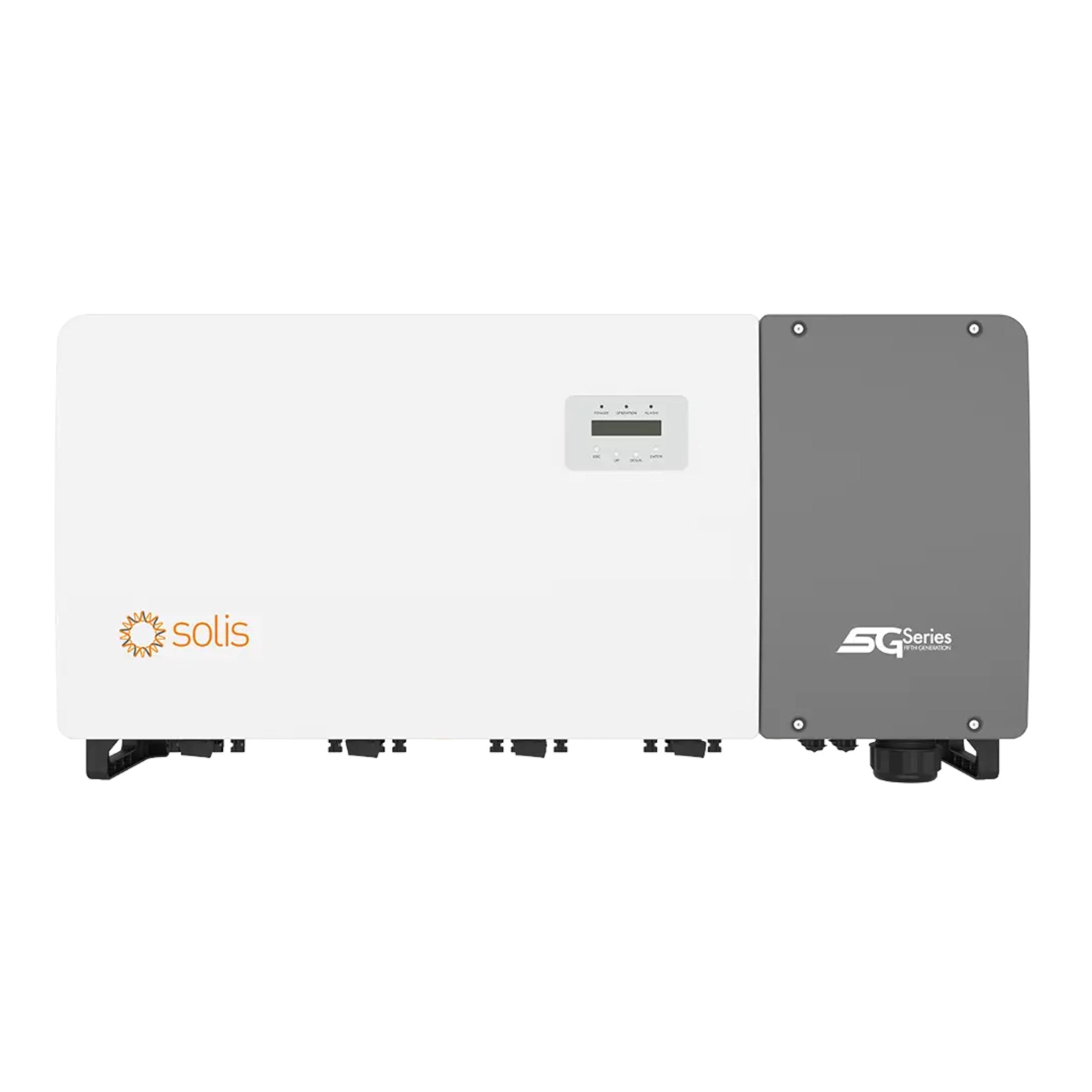

Solis 5G PRO 110kW Three Phase Inverter with 8x MPPT

The Solis 5G PRO 110kW Three Phase Inverter is a high-performance solution engineered for utility-scale and large commercial solar PV installations. With 8 independent MPPTs and 16 DC inputs, this inverter offers outstanding design flexibility and maximum energy harvesting. Its advanced features, robust protection, and exceptional efficiency make it a reliable choice for demanding applications.

Key Features

• 110kW rated power with up to 121kW surge (1 second)

• 8 MPPTs with 16 DC inputs for optimised performance

• Wide MPPT voltage range (180–1000V) for better string design

• Euro efficiency up to 98%

• Max DC input power of 165,000W

• Built-in DC switch and MC4-compatible connectors (16 included)

• Transformerless design with advanced cooling

• IP65-rated for outdoor and industrial environments

• 5-year manufacturer warranty

Specifications

• Rated AC Power: 110,000 W

• Max DC Input Power: 165,000 W

• Min/Max MPPT Voltage: 180 V / 1,000 V

• Startup Voltage: 180 V

• Shutdown Voltage: 160 V

• Max DC Voltage: 1,100 V

• Max DC Current: 272 A

• MPPTs: 8

• DC Inputs: 16

• Surge AC Power (1 sec): 121,000 W

• Euro Efficiency: 98%

• Integrated DC Switch: Yes

• Connectors Included: 16 × MC4

• Weight: 93 kg

• Transformer: None

• Warranty: 5 years

Applications

• Commercial rooftop PV systems

• Large-scale solar power stations

• Utility-scale grid-tied installations

• Industrial renewable energy projects

Why Choose This Product

• Built for high-output systems with exceptional reliability

• Versatile design supports a wide range of configurations

• High efficiency for reduced energy loss and better ROI

• Durable IP65-rated housing for challenging environments

• Simplified maintenance and monitoring capabilities

What’s Included in the Box

• 1 × Solis 5G PRO 110kW Three Phase Inverter

• 16 × MC4 DC input connectors

• Integrated DC switch

• User manual and installation accessories

Notes:

• Pro 5G Solis 110kW models include integrated DC isolators but not the AC option — an AC isolator is required for installation.

• Please be advised: SOL-110K-5G-PRO-DC is currently awaiting full documentation from the supplier.

• Stock may be supplied with either 36A/32A or 40A/32A MPPTs.
