Description

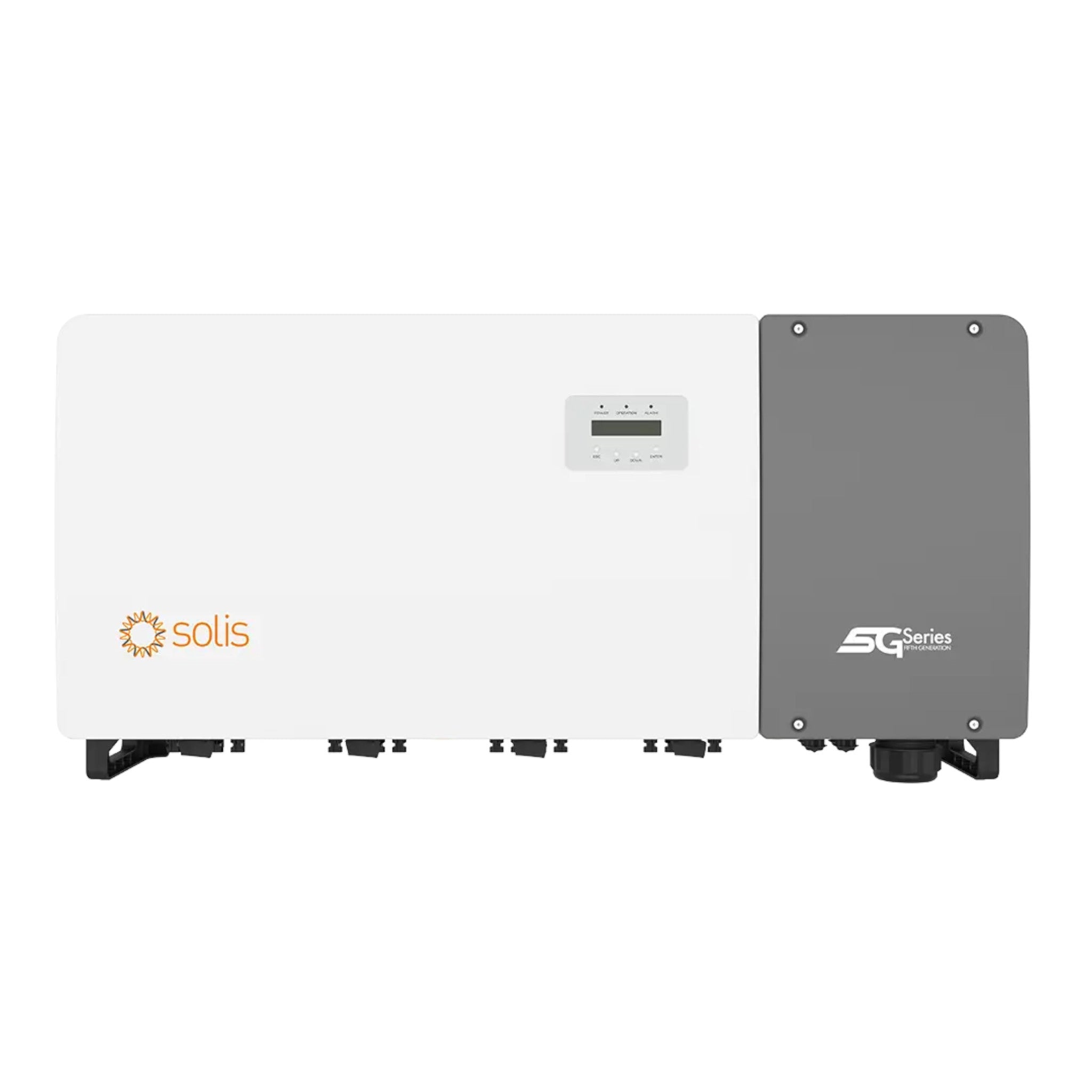

Solis 5G PRO 100kW Three Phase Inverter with 8x MPPT

The Solis 5G PRO 100kW Three Phase Inverter is a robust and efficient inverter engineered for high-capacity commercial and industrial solar installations. With 8 independent MPPTs and up to 16 DC inputs, this unit maximises energy yield even in systems with varying orientations or shading. Designed for reliability and optimal performance, it combines advanced grid compliance with intelligent features and rugged build quality.

Key Features

• High output power: 100kW continuous, 110kW surge (1 second)

• Wide MPPT voltage range (160–1000V) for greater string design flexibility

• 8 MPPTs with 16 DC inputs to optimise generation

• Integrated DC switch for streamlined installation and safety

• Compatible with MC4 connectors (16 included)

• Euro efficiency of 98%

• IP65-rated design for outdoor and industrial use

• Supports intelligent monitoring and remote diagnostics

• 5-year warranty included

Specifications

• Rated AC Power: 100,000 W

• Max DC Input Power: 150,000 W

• Min/Max MPPT Voltage: 160 V / 1,000 V

• Startup Voltage: 180 V

• Shutdown Voltage: 160 V

• Max DC Voltage: 1,100 V

• Max DC Current: 272 A

• MPPTs: 8

• DC Inputs: 16

• Surge AC Power (1 sec): 110,000 W

• Euro Efficiency: 98%

• Integrated DC Switch: Yes

• Connectors Included: 16 × MC4

• Weight: 93 kg

• Transformer: None

• Warranty: 5 years

Applications

• Commercial rooftop PV systems

• Large-scale solar power plants

• Utility-grade and ground-mounted installations

• Industrial energy systems requiring high efficiency and reliability

Why Choose This Product

• Ideal for high-capacity solar installations

• Exceptional flexibility with 8 MPPTs and 16 inputs

• Built to perform in harsh environments with IP65 enclosure

• Outstanding efficiency ensures rapid return on investment

• Easy to integrate and maintain with remote monitoring support

What’s Included in the Box

• 1 × Solis 5G PRO 100kW Three Phase Inverter

• 16 × MC4 DC input connectors

• Integrated DC switch

• Installation guide and accessories

Notes:

• Pro 5G Solis 100kW models include integrated DC isolators but not the AC option — an AC isolator is required for installation.

• Please be advised: SOL-100K-5G-PRO-DC is currently awaiting full documentation from the supplier.

• Stock may be supplied with either 36A/32A or 40A/32A MPPTs.

Disclaimer

All product information provided by Solareon UK is intended for general guidance only and may be subject to change or error. Solareon UK does not accept liability for any inaccuracies or omissions in the product specifications displayed. For accurate and detailed technical information, please refer to the manufacturer’s official datasheet available in the 'Downloads' section. We strongly advise confirming all critical details directly with the manufacturer prior to making purchasing or installation decisions.
