Description

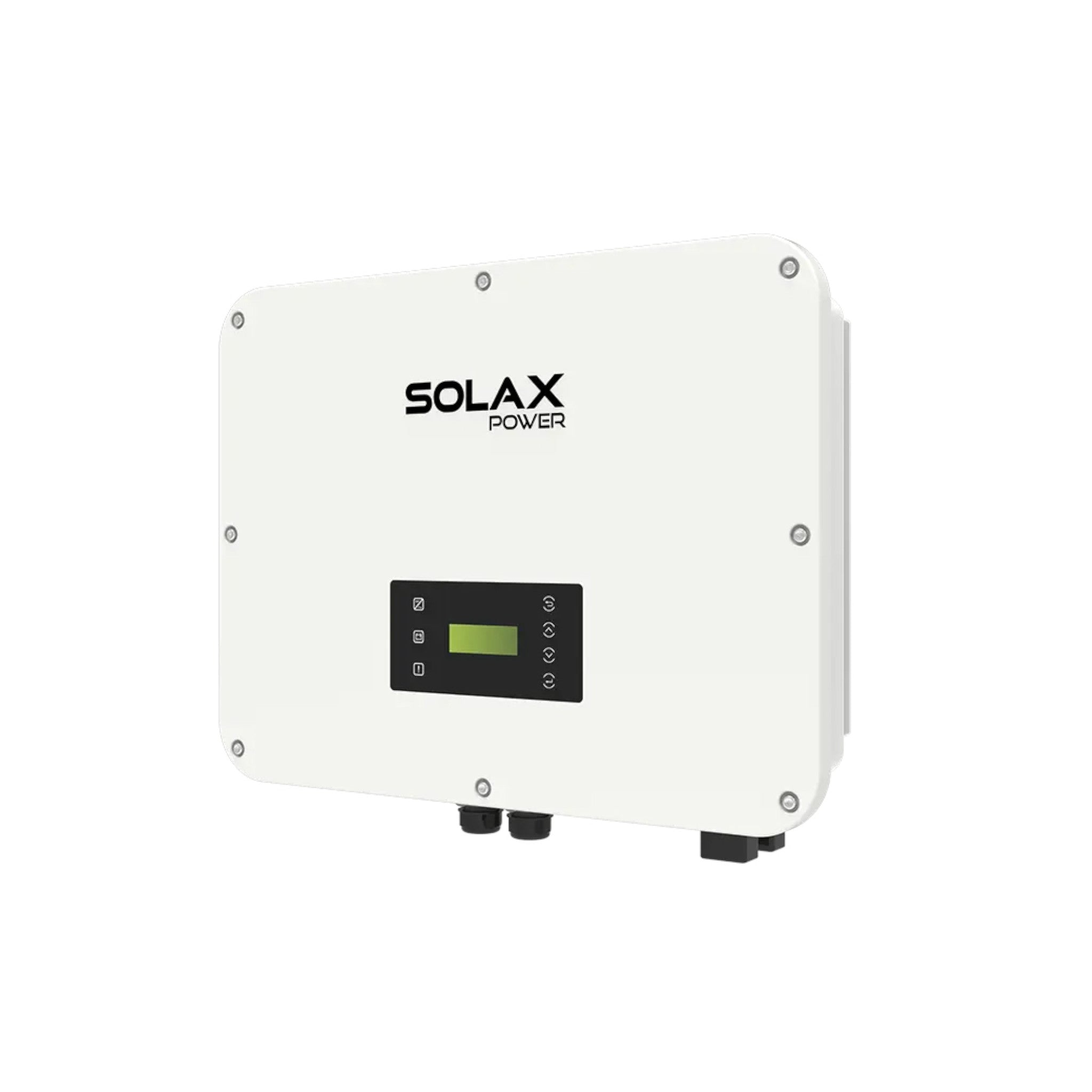

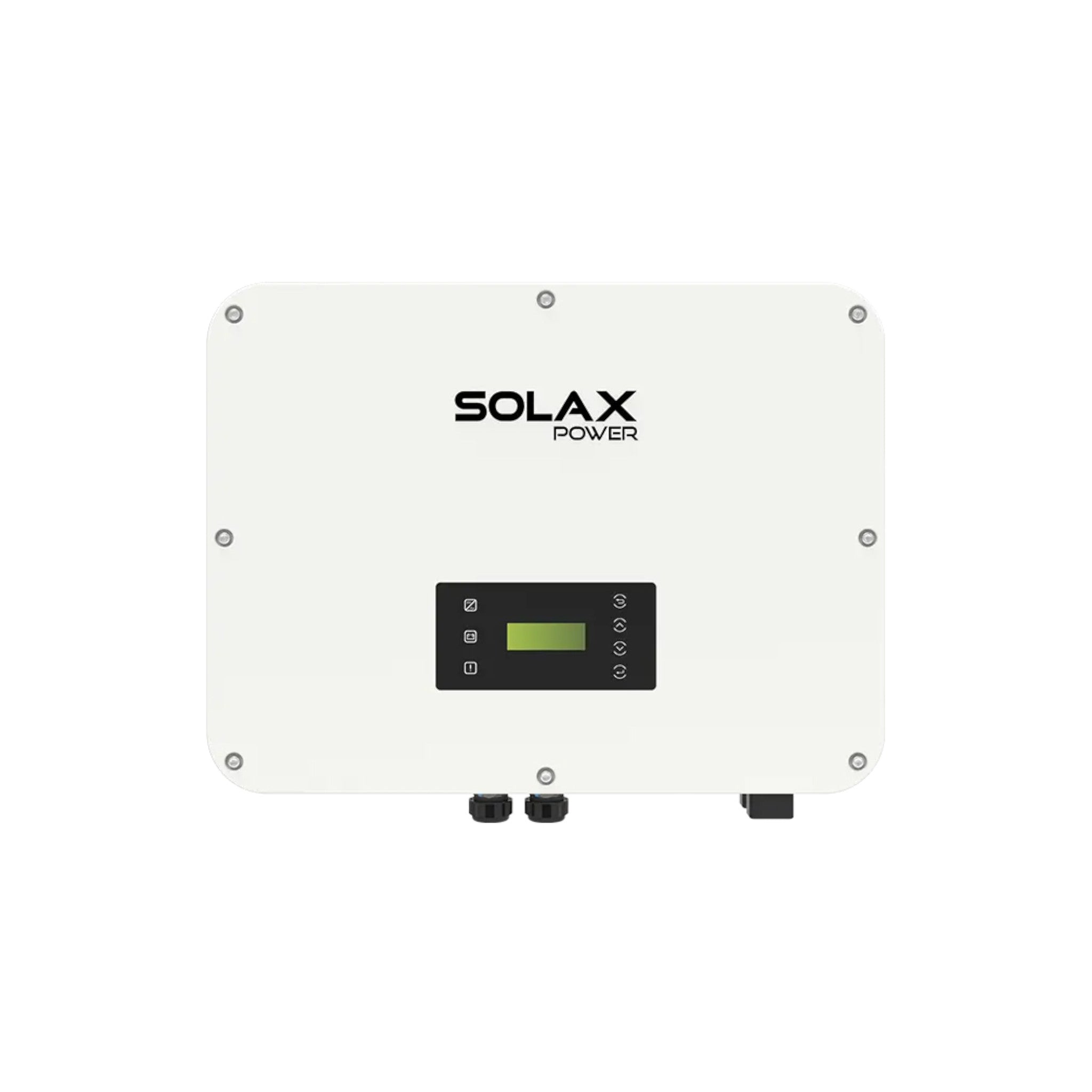

SolaX X3 Ultra 30kW Hybrid Three Phase Inverter with WiFi

The SolaX X3 Ultra 30kW Hybrid Three Phase Inverter with WiFi is a premium hybrid inverter engineered for demanding solar energy systems in both residential and commercial environments. Supporting up to 60kW of PV input and delivering 30kW of AC output, it offers high flexibility with 3 MPPTs and 6 strings, enabling efficient energy harvesting in complex solar layouts. With AI-based management, whole-home backup capabilities, and full smart grid integration, it’s designed for robust performance, scalability, and long-term reliability.

Key Features

• Max. 36A DC input per MPPT

• 3 MPPTs with 6 strings total

• 100% unbalanced output supported

• AI-driven energy management and solar forecasting

• VPP-ready with support for 2030.5 and OpenADR via SolaX Cloud

• Smart scene function for intelligent device control (e.g., heat pump, EV charger)

• Compatible with on-grid/off-grid microgrid setups

• EPS output up to 200% for 10 seconds

• EPS functionality available without battery

• 24/7 programmable scheduling

• IP66 protection for outdoor installation

• Type II AC & DC surge protection

• Transformerless, high-efficiency design

• Smart cooling system

Specifications

• Nominal AC output: 30,000 W

• Max. AC current: 39.9 A

• Number of phases: 3 (3P4W, 400/230V, 50/60Hz)

• MPPT voltage range: 160–950 V

• Start-up voltage: 200 V

• Max. DC input power: 60,000 W

• Max. DC voltage: 1000 V

• MPPTs / Strings: 3 MPPTs, 6 strings total

• Max. input current per MPPT: 36 A

• Max. efficiency: 98.0%

• IP rating: IP66

• Communication: RS485, 5× DI, 2× DO

• Cooling: Smart cooling

• Dimensions: 696 × 526 × 240 mm

• Weight: 47 kg

Applications

• High-demand residential or commercial PV installations

• Projects with complex panel layouts requiring 3 MPPTs

• Full-home backup systems with quick EPS switchover

• Energy networks integrating AI and VPP platforms

• Advanced automation with smart devices and scene control

Why Choose This Product

• 60kW PV input capacity for maximum solar harvest

• Fully supports microgrid operation and EPS without battery

• Reliable backup with <10ms switchover time

• Future-proof features: VPP integration, AI, and smart energy control

• Durable outdoor-ready build with IP66 rating

• Ideal for complex multi-string solar configurations

What's Included in the Box

• SolaX X3 Ultra 30kW inverter

• Built-in WiFi module

• User manual

• Mounting kit

• Connectors and screws

Disclaimer

All product information provided by Solareon UK is intended for general guidance only and may be subject to change or error. Solareon UK does not accept liability for any inaccuracies or omissions in the product specifications displayed. For accurate and detailed technical information, please refer to the manufacturer’s official datasheet available in the 'Downloads' section. We strongly advise confirming all critical details directly with the manufacturer prior to making purchasing or installation decisions.
