Description

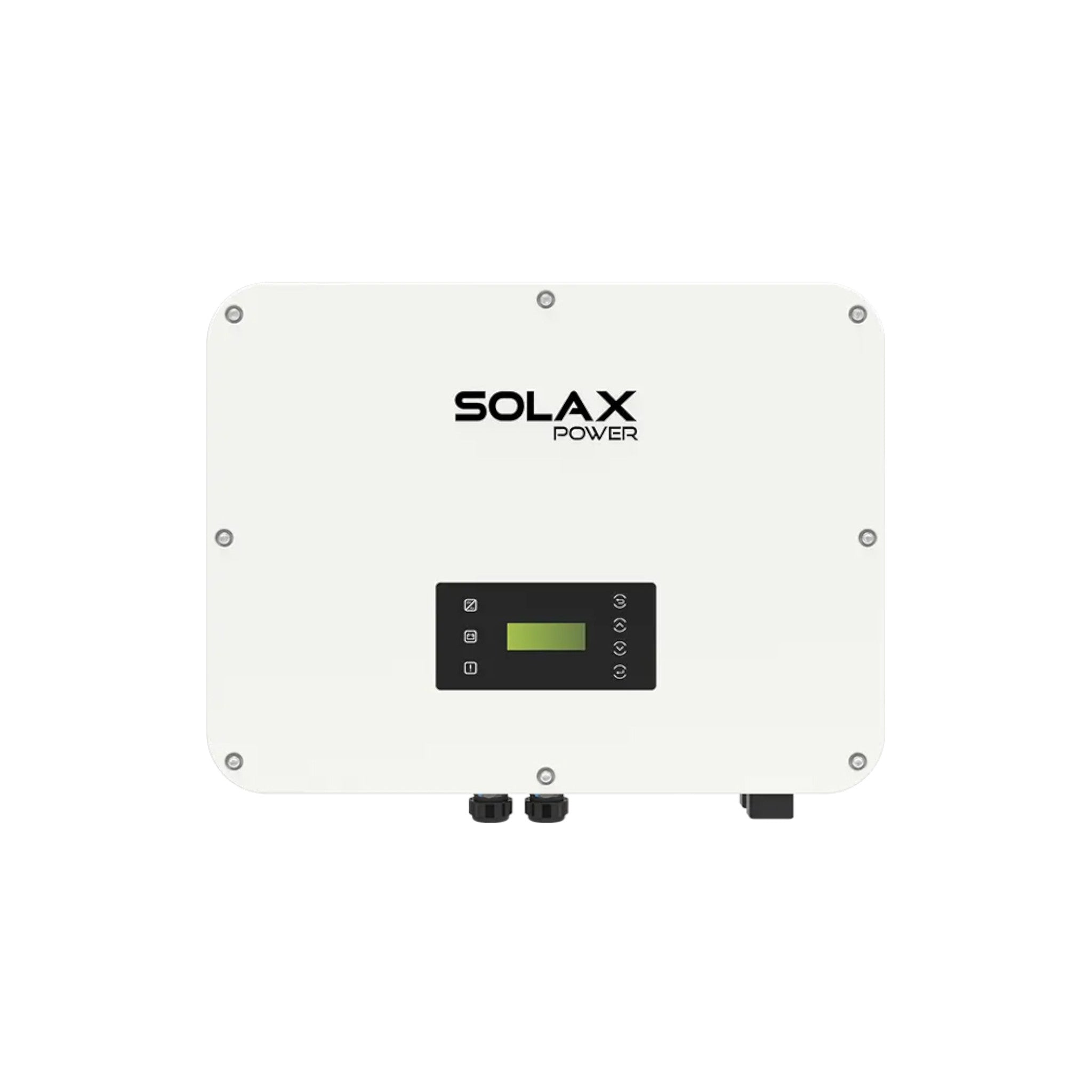

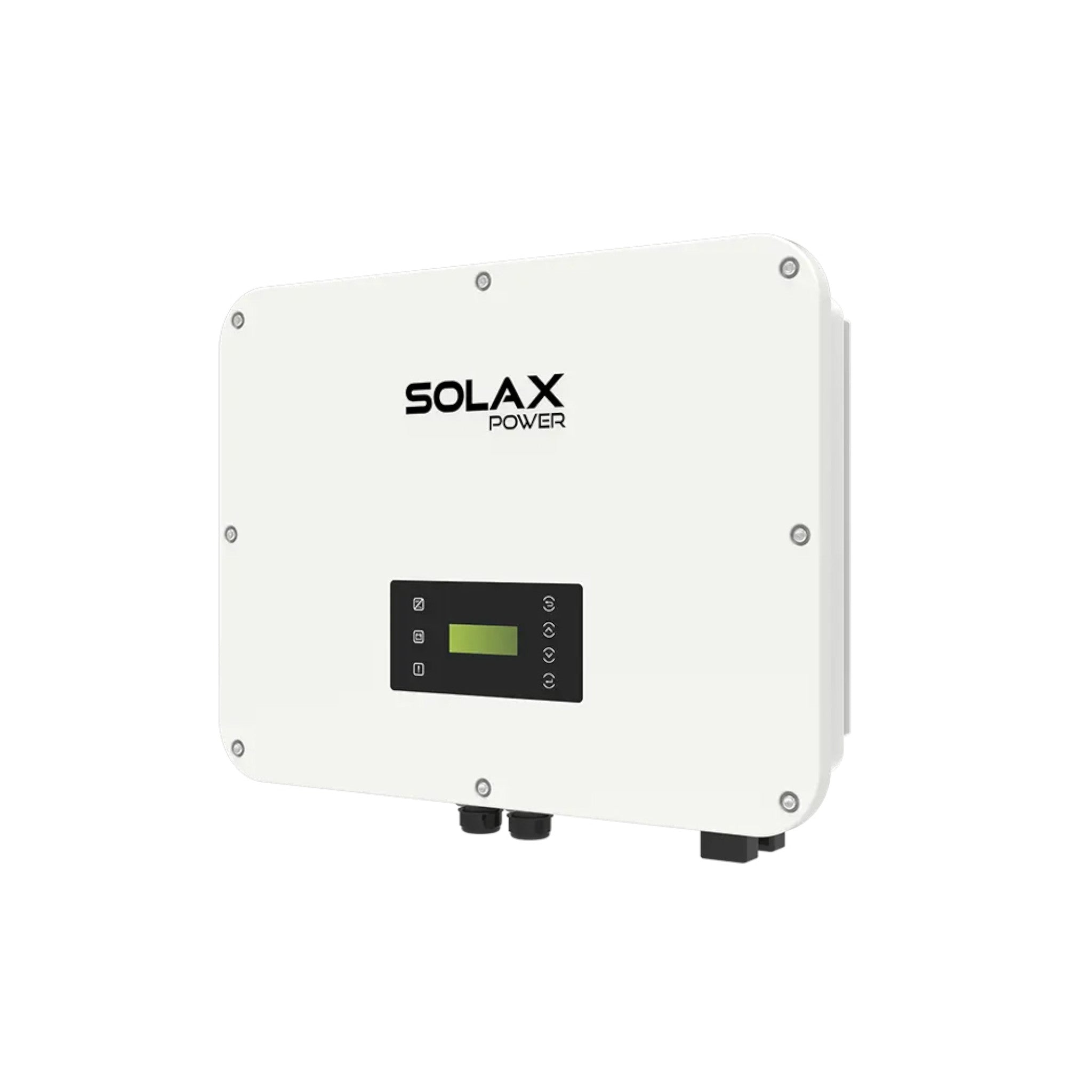

SolaX X3 Ultra 15kW Hybrid Three Phase Inverter with WiFi

The SolaX X3 Ultra 15kW Hybrid Three Phase Inverter with WiFi is a high-performance hybrid inverter engineered for residential and commercial use where efficiency, reliability, and intelligent energy management are essential. Designed to operate in both on-grid and off-grid environments, it features two independent MPPTs, supports up to 30kW of DC input, and delivers up to 16.5kW of AC output. With built-in AI capabilities, advanced connectivity, and whole-home backup support, the X3 Ultra is future-ready and optimized for smart energy ecosystems.

Key Features

• Max. 36A DC input per MPPT

• 2 MPPTs with 4 strings total

• 100% unbalanced output supported

• AI-driven energy management system

• VPP ready via SolaX Cloud (2030.5, OpenADR)

• Smart scene support for devices like heat pumps and EV chargers

• Microgrid-ready for seamless on-grid/off-grid operation

• Supports 24/7 scheduling mode

• Zero injection solution

• EPS output up to 200% for 10 seconds

• EPS functionality even without battery

• IP66-rated for outdoor durability

• Type II surge protection for both AC & DC

• Smart cooling system

• Transformerless architecture

Specifications

• Nominal AC output: 15,000 W

• Max. AC output: 16,500 W

• Max. AC current: 24 A

• Number of phases: 3 (3P4W, 400/230V, 50/60Hz)

• MPPT voltage range: 160–950 V

• Start-up voltage: 200 V

• Max. DC input power: 30,000 W

• Max. DC voltage: 950 V

• MPPTs / Strings: 2 MPPTs, 4 strings total

• Max. efficiency: 98.0%

• Cooling: Smart cooling system

• Communication: RS485, 5× DI, 2× DO

• IP rating: IP66

• Dimensions: 696 × 526 × 240 mm

• Weight: 47 kg

Applications

• Residential systems with high energy demands

• Medium to large solar installations

• Whole-home backup setups with fast EPS switching

• Intelligent energy networks with AI-based load forecasting

• Compatible with EV chargers, heat pumps, and VPP aggregators

Why Choose This Product

• Supports up to 200% PV oversizing

• Intelligent, AI-ready energy management

• Seamless switching between grid-connected and off-grid modes

• Reliable EPS with switchover time under 10ms

• Advanced connectivity and automation features

• Built for harsh environments with IP66 protection

What's Included in the Box

• SolaX X3 Ultra 15kW inverter

• Built-in WiFi module

• User manual

• Mounting kit

• Connectors and screws
