Description

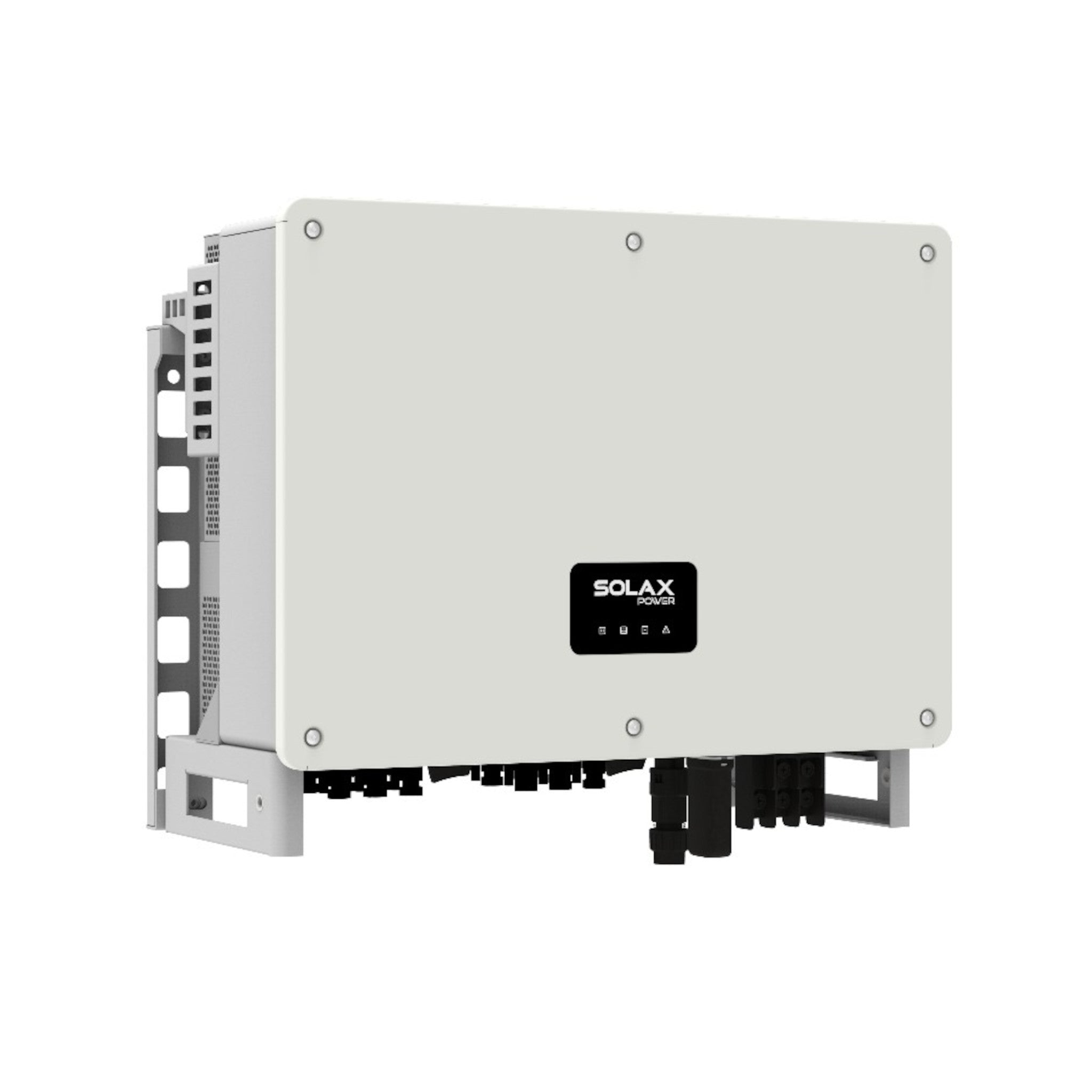

SolaX X3 MEGA G2 60kW Three Phase Inverter

The SolaX X3 MEGA G2 60kW is a high-capacity three-phase inverter designed for utility-scale and large commercial photovoltaic systems. Engineered for maximum performance and safety, this inverter supports up to 90kW of input power and integrates intelligent grid support features, AFCI safety, and robust environmental protection. With built-in export power control and a compact form factor, it is optimized for flexibility and long-term reliability in demanding installations.

Key Features

• 60kW nominal output with up to 90kW maximum input power

• Wide MPPT operating voltage range of 180–1000V

• AFCI (Arc Fault Circuit Interrupter) for enhanced electrical safety

• Comprehensive system protection: overcurrent, over/under voltage, and temperature

• Built-in export power control to comply with grid requirements

• IP66-rated for complete dust and water ingress protection

• Start-up voltage of 200V for early morning energy capture

Specifications

• Max Rated Power: 60,000W

• Max DC Input Power: 90,000W

• Max Output Current: 87A

• Max DC Short-Circuit Current (Isc): 46A

• Phases: 3 (Three-phase)

• MPPT Voltage Range: 180–1000V

• Start-Up Voltage: 200V

• Max DC Input Voltage: 1100V

• Max Efficiency: 98.4%

• IP Rating: IP66

• Weight: 44.5kg

• Dimensions (H × W × D): 630 × 521 × 286 mm

Applications

• Utility-scale solar plants

• Large commercial and industrial PV systems

• Grid-connected installations requiring export limitation

• Harsh outdoor environments with stringent safety standards

Why Choose This Product

• Ideal for large-scale energy production with 90kW input handling

• High conversion efficiency (98.4%) ensures maximum energy harvest

• Built-in AFCI and advanced protection for safe, compliant operation

• Integrated export control reduces the need for external devices

• IP66 durability supports long-term outdoor use

What’s Included in the Box

• SolaX X3 MEGA G2 60kW Inverter

• Installation hardware and mounting accessories

• User and safety manual

• Warranty documentation

Disclaimer

All product information provided by Solareon UK is intended for general guidance only and may be subject to change or error. Solareon UK does not accept liability for any inaccuracies or omissions in the product specifications displayed. For accurate and detailed technical information, please refer to the manufacturer’s official datasheet available in the 'Downloads' section. We strongly advise confirming all critical details directly with the manufacturer prior to making purchasing or installation decisions.
