Description

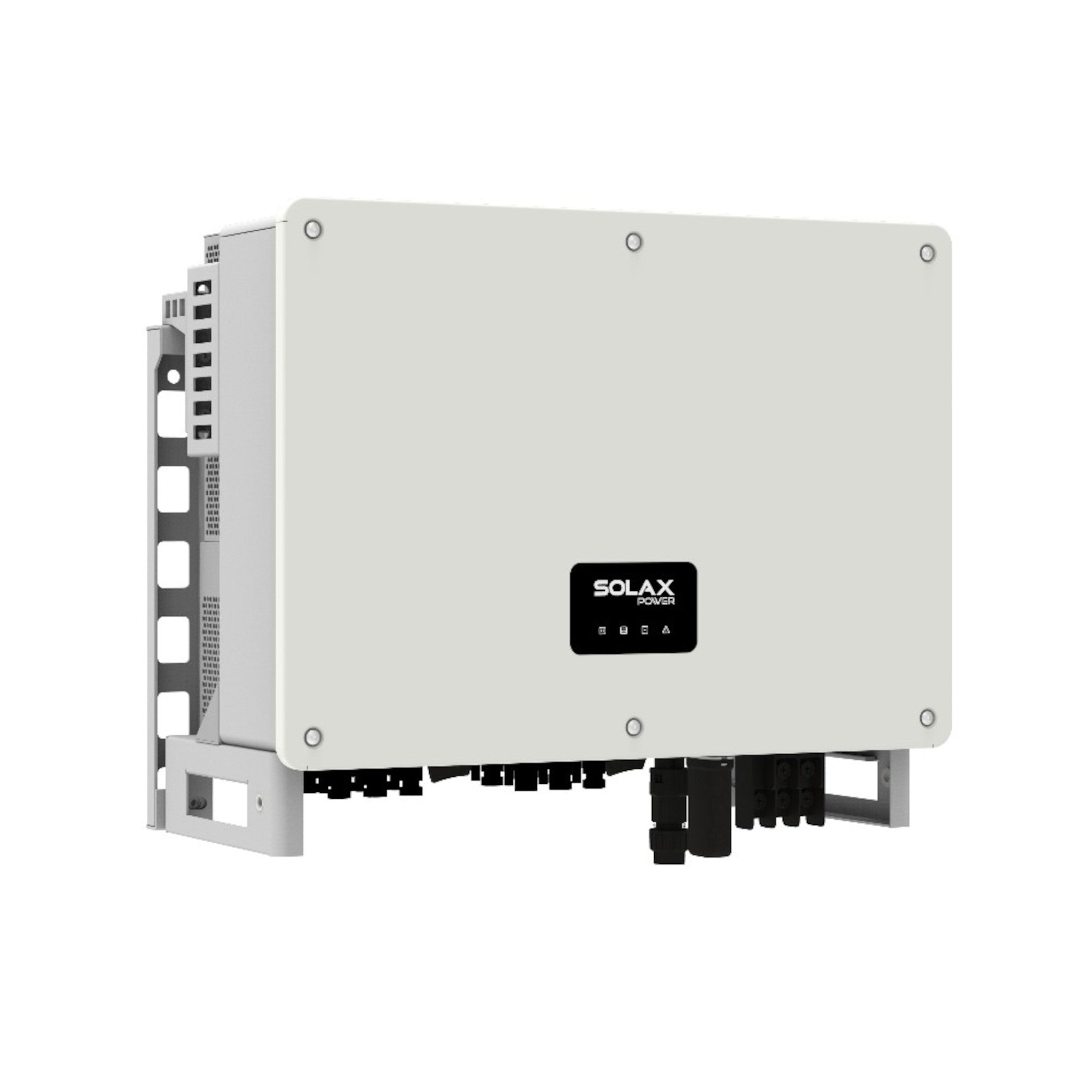

SolaX X3 MEGA G2 50kW Three Phase Inverter

The SolaX X3 MEGA G2 50kW is a premium-grade three-phase inverter tailored for large commercial and industrial-scale solar installations. Built to deliver outstanding performance with a maximum input power of 75kW and an ultra-wide MPPT range, this inverter ensures optimal energy production in diverse environments. With full-scale protection features and integrated export control, the X3 MEGA G2 50kW is engineered for high reliability and grid compliance.

Key Features

• 50kW nominal output with up to 75kW maximum input power

• Wide MPPT voltage range (180–1000V) for flexible array design

• AFCI (Arc Fault Circuit Interrupter) for enhanced fire safety

• Comprehensive protection against overcurrent, over/under voltage, and temperature

• Built-in export power control for grid regulation compliance

• Start-up voltage of 200V for early energy production

• IP66-rated weatherproof design

• 5-year standard manufacturer warranty

Specifications

• Max Rated Power: 50,000W

• Max DC Input Power: 75,000W

• Max Output Current: 72.5A

• Max DC Short-Circuit Current (Isc): 46A

• Phases: 3 (Three-phase)

• MPPT Voltage Range: 180–1000V

• Start-Up Voltage: 200V

• Max DC Input Voltage: 1100V

• Max Efficiency: 98.4%

• IP Rating: IP66

• Weight: 44.5kg

• Dimensions (H × W × D): 630 × 521 × 286 mm

• Warranty: 5 years

Applications

• Industrial and large commercial PV systems

• Grid-connected solar plants requiring export limitation

• Harsh environment installations needing IP66 protection

• Projects requiring advanced fire and safety compliance

Why Choose This Product

• High capacity design ideal for large-scale solar installations

• Outstanding 98.4% efficiency for maximum energy return

• AFCI protection enhances safety in high-voltage arrays

• Pre-integrated export control reduces need for external devices

• Durable, compact form factor for simplified mounting and installation

What’s Included in the Box

• SolaX X3 MEGA G2 50kW Inverter

• Mounting accessories and hardware

• Installation and safety manual

• Warranty documentation

Disclaimer

All product information provided by Solareon UK is intended for general guidance only and may be subject to change or error. Solareon UK does not accept liability for any inaccuracies or omissions in the product specifications displayed. For accurate and detailed technical information, please refer to the manufacturer’s official datasheet available in the 'Downloads' section. We strongly advise confirming all critical details directly with the manufacturer prior to making purchasing or installation decisions.
