Description

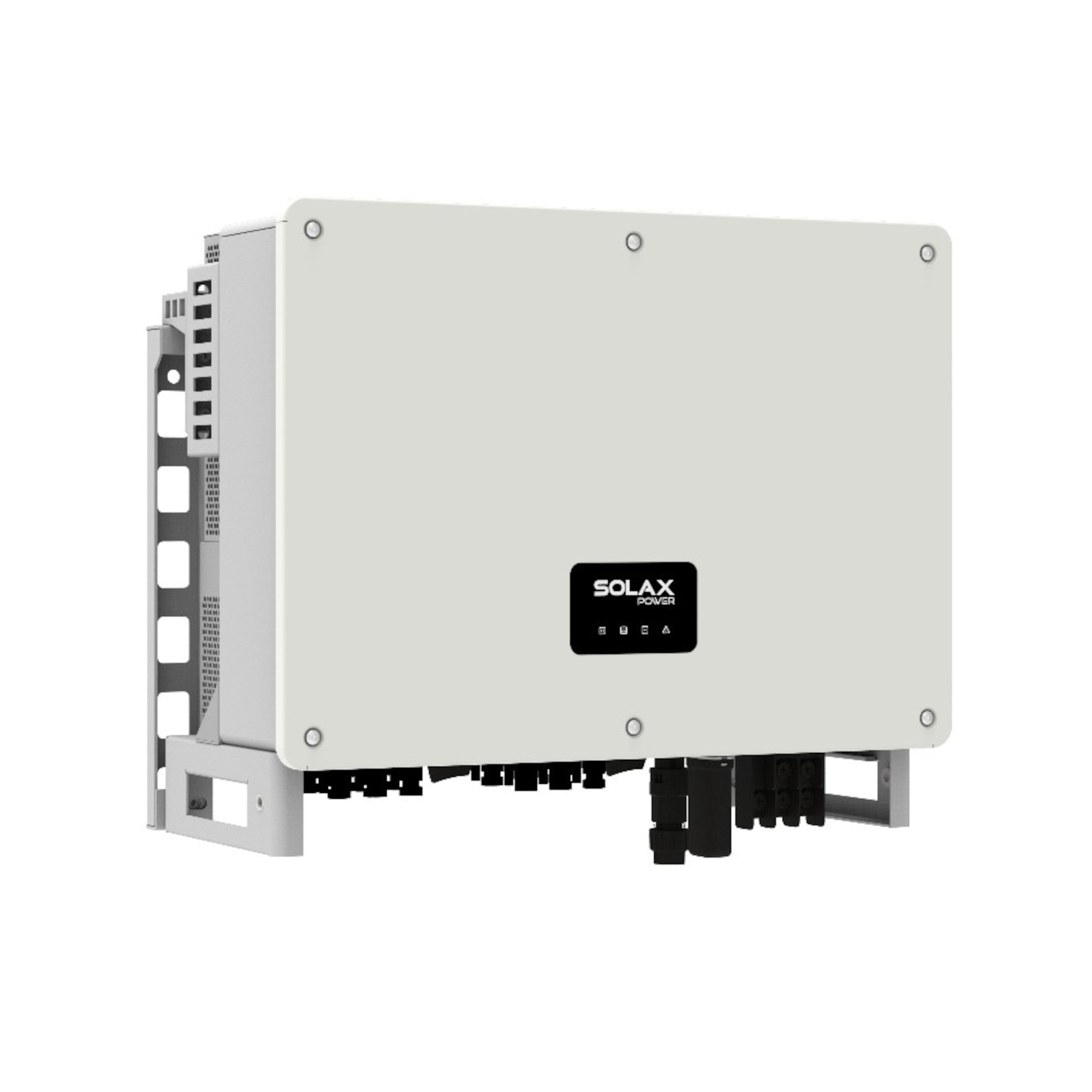

SolaX X3 MEGA G2 40kW Three Phase Inverter

The SolaX X3 MEGA G2 40kW is a robust and high-capacity three-phase inverter engineered to meet the demands of large-scale commercial and industrial solar installations. With a maximum power handling capacity of 60kW, exceptional conversion efficiency, and comprehensive safety features, this inverter is ideal for maximizing energy yield while ensuring operational reliability. Its IP66-rated enclosure and integrated export power control make it perfectly suited for diverse environments and complex grid requirements.

Key Features

• 40kW nominal output power, supporting up to 60kW of input

• Wide MPPT voltage range (180–1000V) for optimal energy harvesting

• Advanced AFCI (Arc Fault Circuit Interrupter) protection

• Built-in overcurrent, temperature, and voltage protection systems

• Export power control included for grid compliance

• Start-up voltage of 200V ensures early morning operation

• Max input voltage up to 1100V

• IP66-rated weather-resistant design for outdoor use

Specifications

• Max Rated Power: 40,000W

• Max DC Input Power: 60,000W

• Max Output Current: 58A

• Max DC Short-Circuit Current (Isc): 46A

• Phases: 3 (Three-phase)

• MPPT Voltage Range: 180–1000V

• Start-Up Voltage: 200V

• Max DC Input Voltage: 1100V

• Max Efficiency: 98.4%

• IP Rating: IP66

• Weight: 44.5kg

• Dimensions (H × W × D): 630 × 521 × 286 mm

• Protection Features: AFCI, overcurrent, over/under voltage, and overtemperature

Applications

• Commercial PV systems with high energy demands

• Industrial-scale solar installations

• Grid-tied systems with export limitation

• Outdoor installations requiring durable protection

Why Choose This Product

• High power handling (up to 60kW) supports large arrays

• Intelligent protection systems ensure safe, reliable operation

• Built-in export control simplifies grid compliance

• High efficiency (98.4%) reduces operational losses

• Durable IP66 housing for long-term performance in any environment

What’s Included in the Box

• SolaX X3 MEGA G2 40kW Inverter

• Mounting and installation hardware

• Safety and installation manual

• Warranty documentation
