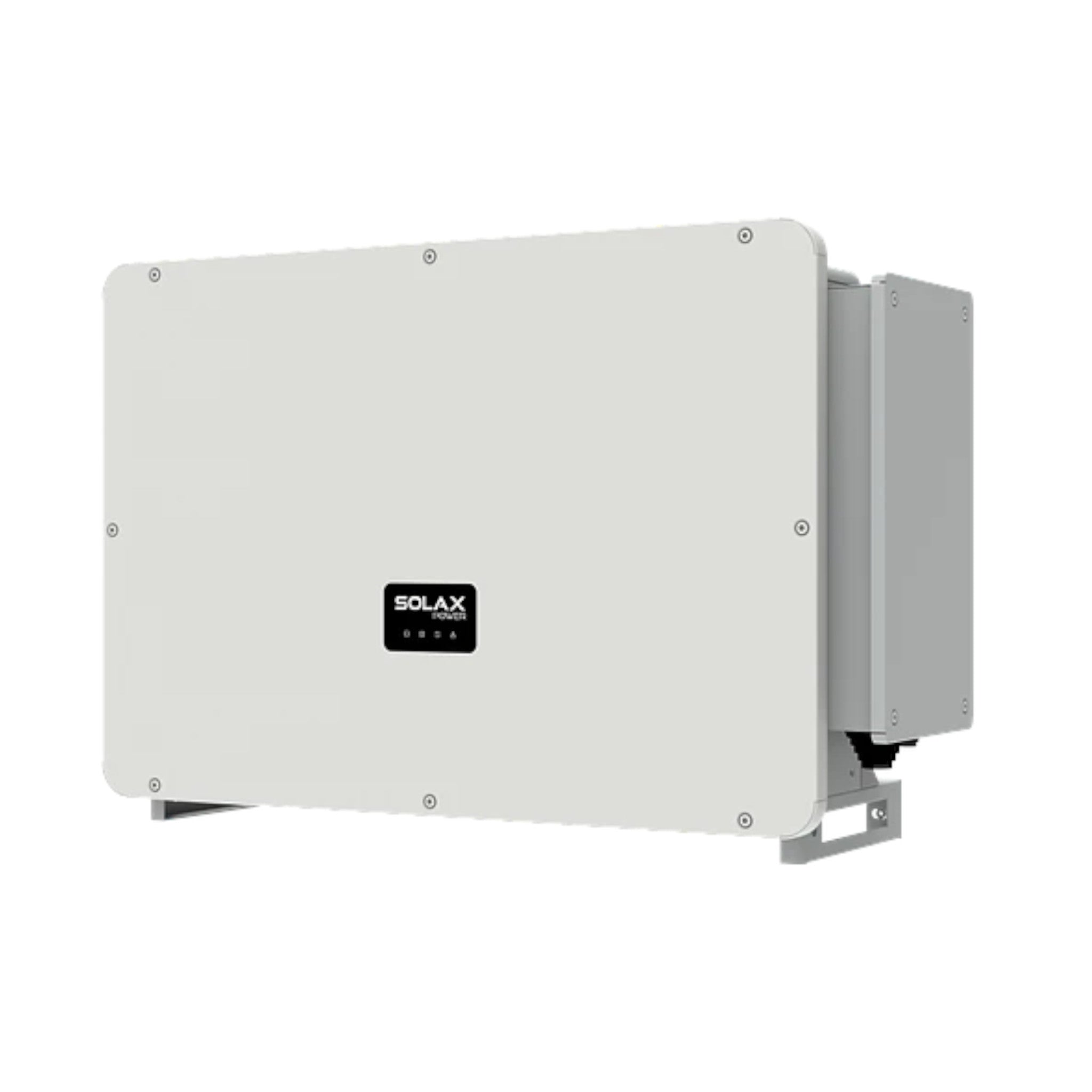

Solax X3 FORTH 125kW Inverter

High-performance 125kW three-phase inverter from SolaX's FORTH series, engineered for large-scale commercial and industrial PV installations. Equipped with up to 12 MPPTs, 150% PV oversizing, integrated Type II SPD protection, and intelligent features like Smart I-V Curve Diagnosis and night-time reactive power compensation, the X3 FORTH ensures maximum yield, flexibility, and safety in the most demanding energy environments.

Key Features

• 125kW rated power for commercial and industrial-scale applications

• Up to 12 MPPTs with 2 strings per tracker for optimized string management

• Supports 150% PV oversizing and 110% output overloading

• Wide MPPT range of 180–1000 VDC

• Max. 32A input per MPPT, suitable for high-current modules

• Type II DC & AC SPD protection (Type I+II optional)

• Built-in export power control and night-time reactive power support

• Remote firmware updates and configuration

• Smart I-V Curve Diagnosis for efficient maintenance

• IP66-rated housing with smart fan cooling for durability

• Optional ARC fault protection, PLC, and aluminium AC cabling

Specifications

• Power Output: 125000W

• MPPT Voltage Range: 180–1000 VDC

• Max PV Input Voltage: 1100 V

• Nominal Input Voltage: 580/600 V

• Start-up Voltage: 200 V

• No. of MPPTs: 12

• Strings per MPPT: 2

• Max. Input Current per MPPT: 32 A

• Isc PV per MPPT: 46 A

• Nominal AC Voltage: 220/380V, 230/400V, 3/N/PE

• Nominal AC Frequency: 50/60 Hz ±5

• Max. Efficiency: 99.0%

• MPPT Efficiency: 99.9%

• Power Factor Range: 0.8 leading ~ 0.8 lagging

• Cooling: Smart fan cooling

• Operating Temperature: -30°C to +60°C (derating above 45°C)

• Ingress Protection: IP66

• Max Altitude: 4000 m (derating above 3000 m)

• Communication: RS485, USB, DRM, optional PLC

• Display: Optional LCD (16×2) or 4×LED

• Certification: IEC/EN 62109-1/2, EN 50549, VDE4105, AS4777.2, etc.

• SKU: X3-FTH-125K

Applications

• Utility-scale PV installations

• Large industrial or commercial solar farms

• Distributed energy systems with export power control

• Projects requiring high MPPT granularity and monitoring

• Environments demanding rugged, IP66-rated equipment

Why Choose This Product

• High Efficiency: Achieves 99.0% peak efficiency with 99.9% MPPT tracking

• Scalability: 12 MPPTs and 150% oversizing ensure compatibility with future expansions

• Safety Built-in: Type II surge protection, AFCI (optional), and advanced diagnostics

• Smart Grid Ready: Supports VPP participation, reactive power at night, remote configuration

• Industrial Durability: Rugged design, smart cooling, and wide environmental tolerance

What’s Included in the Box

• 1x Solax X3 FORTH 125kW Inverter

• Integrated wiring and installation terminals

• Quick-start guide and documentation

• Optional communication interfaces and LCD display
