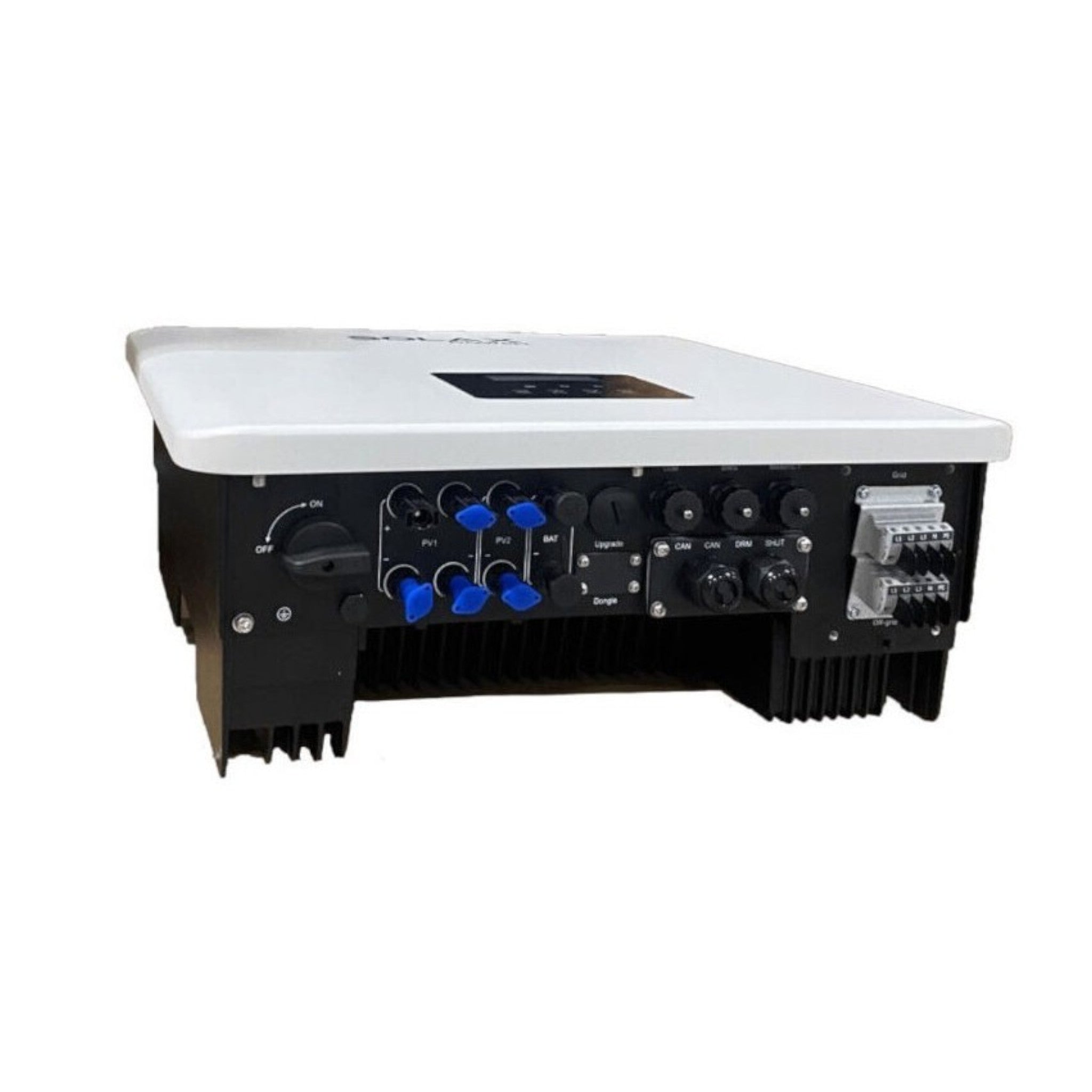

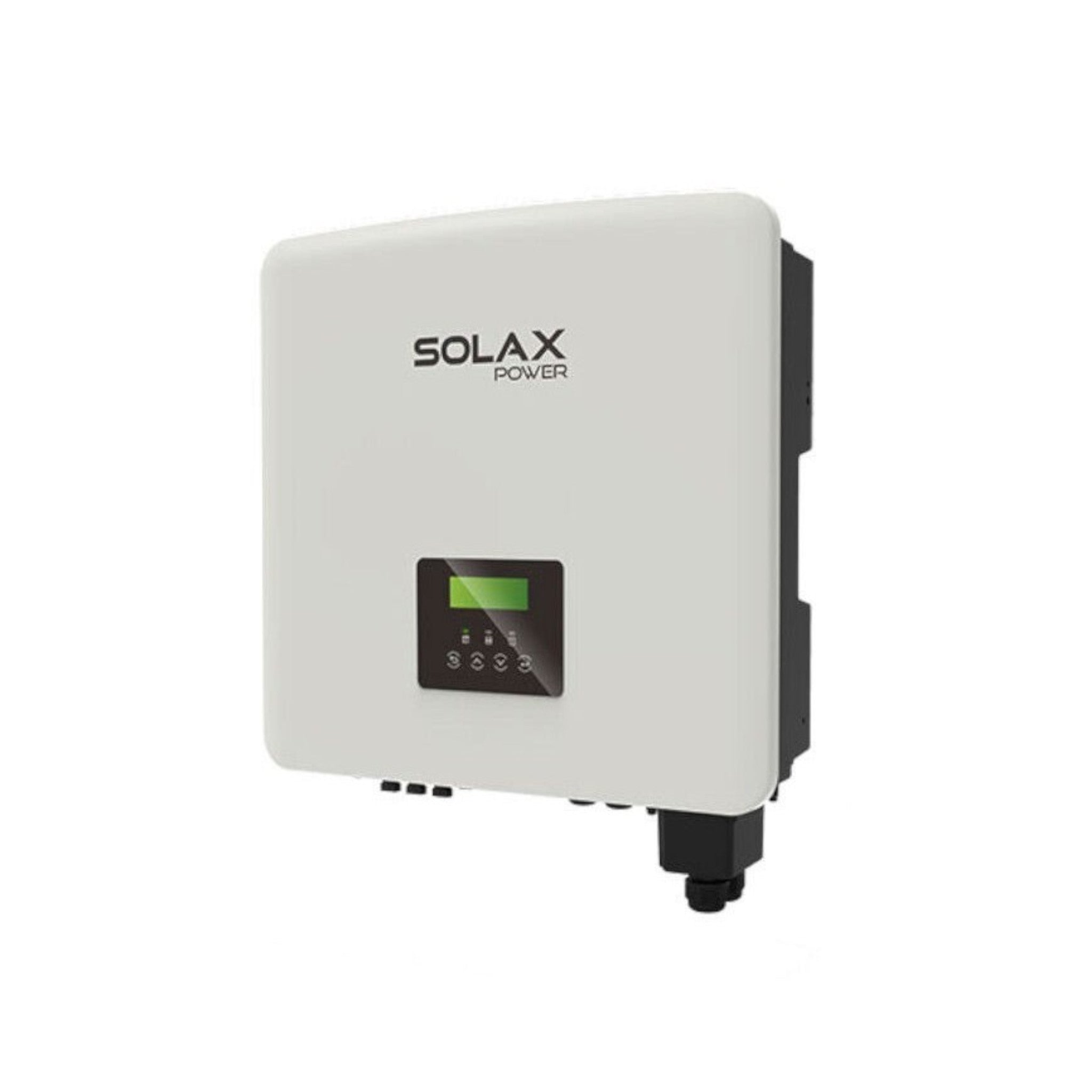

SolaX X3 12kW G4 V2 Hybrid Three Phase Inverter with WiFi

The SolaX X3 12kW G4 V2 Hybrid Three Phase Inverter with WiFi is a highly efficient and intelligent solar inverter designed for modern residential and commercial energy systems. With support for both on-grid and off-grid operation, integrated EPS functionality, and robust 30A charge/discharge capacity, this inverter delivers exceptional flexibility and reliability. It supports up to 150% PV oversizing and performs flawlessly in extreme temperatures down to -35°C, making it ideal for high-demand and variable environments.

Key Features

• In-built EPS changeover switch with switchover time <10ms

• Supports up to 150% PV oversizing

• Full capacity operation down to -35°C

• 30A charge/discharge capability

• Operates in both on-grid and off-grid modes

• Includes built-in WiFi dongle

• Compatible with lithium-ion and lead-acid batteries

• VPP ready for ancillary services in the power market

• Intelligent load management with response time under 0.3s

• Super-backup ready: EPS operation even without batteries

• 200% PV oversizing and 110% AC overload supported

• Dual MPPT with shadow tracking for optimized performance

• Type II AC & DC surge protection

• IP65 protection for indoor and outdoor installation

Specifications

• Nominal AC output power: 12,000 W

• Max. AC output power: 13,200 VA

• Max. AC current: 19.3 A

• Max. PV input power: 18,000 W

• Max. PV input voltage: 950 V

• Start-up voltage: 200 V

• MPPT voltage range: 180–950 V

• Max. short circuit current: 20 A

• Battery voltage range: 180–800 V

• Max. charge/discharge current: 30 A

• Max. efficiency: 98.0%

• IP rating: IP65

• Operating temperature: -35°C to +60°C

• Dimensions: 503 × 503 × 199 mm

• Weight: 30 kg

• Communication: RS485, CT/Meter, USB, WiFi (LAN/4G optional)

• Cooling: Natural convection

Applications

• Residential systems with energy storage and EPS needs

• Hybrid installations in extreme cold or hot climates

• Projects using lithium-ion or lead-acid batteries

• Sites requiring rapid switchover for backup systems

• Smart homes and VPP-integrated energy solutions

Why Choose This Product

• Superior efficiency in both PV-to-battery and battery-to-grid operation

• Operates without derating at subzero temperatures

• Full-feature hybrid inverter with integrated backup control

• Ready for grid services and advanced energy management

• Easy to install and compatible with a wide range of batteries

• Compact and lightweight with natural cooling

What's Included in the Box

• SolaX X3 12kW G4 V2 inverter

• Built-in WiFi dongle

• User manual

• Mounting kit

• Connectors and screws
