Description

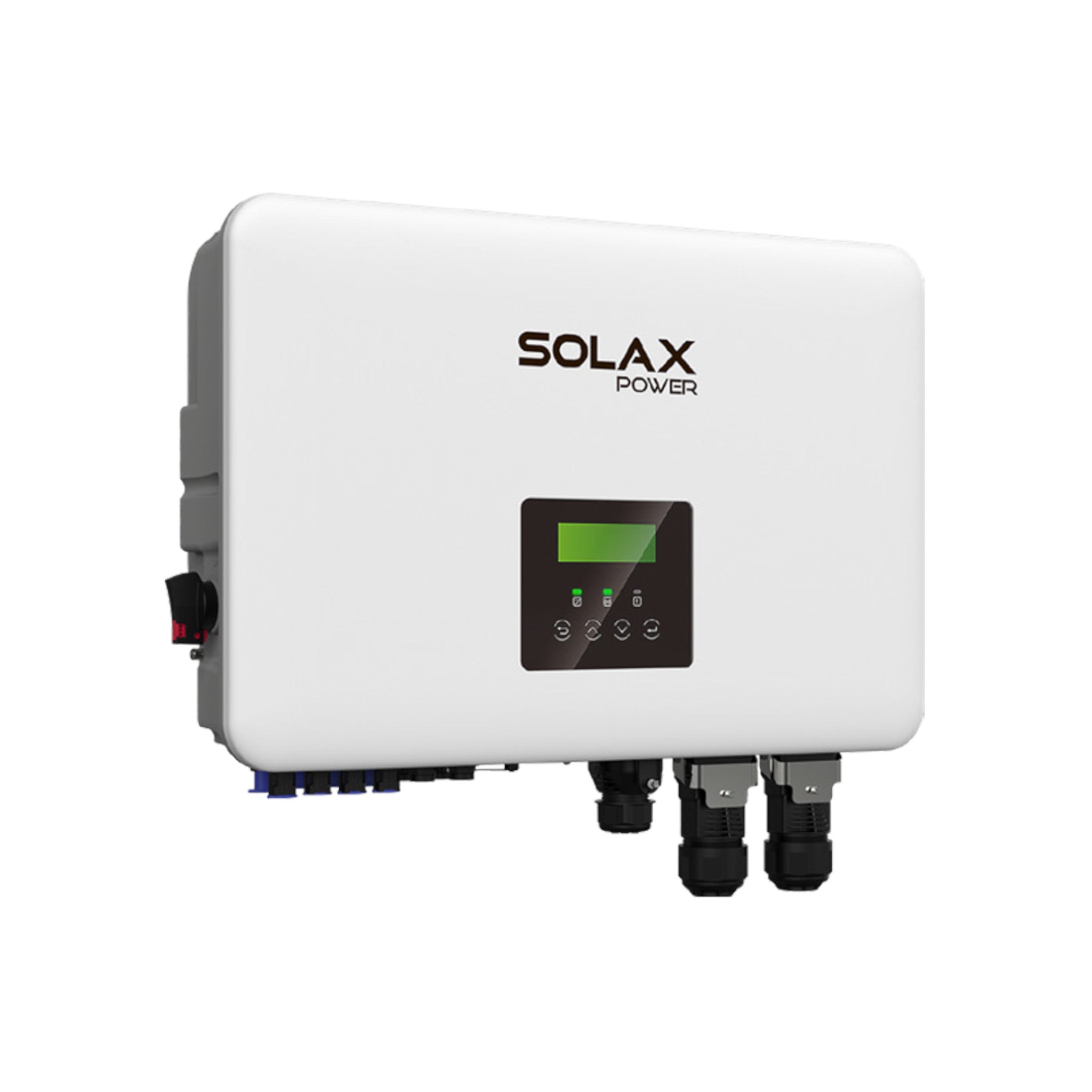

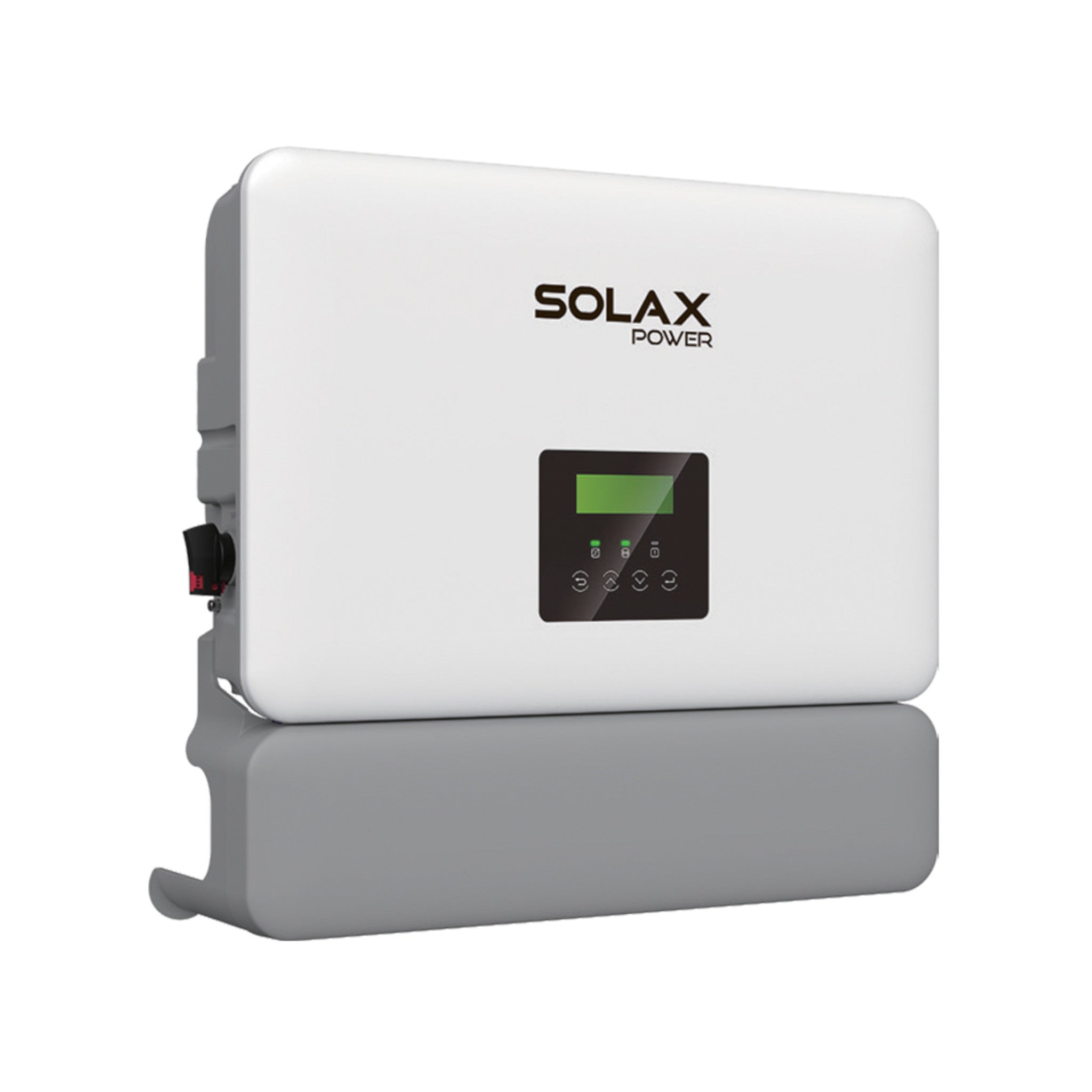

Solax X1 VAST 8.0kW Hybrid Inverter

High-capacity 8.0kW single-phase hybrid inverter designed for advanced residential solar systems. With support for dual battery ports, 200% PV oversizing, and high-efficiency power conversion, the X1 VAST delivers exceptional energy management, grid backup, and smart home compatibility in one robust, IP66-rated device.

Key Features

• 8kW hybrid inverter with 4 MPPTs and 200% PV oversizing

• Dual battery ports with up to 50A combined charge/discharge current

• EPS output supports up to 2× rated power for 10 seconds

• UPS-level switchover time under 10ms

• Compatible with generators and microgrid installations

• IP66-rated enclosure and natural cooling (fanless)

• Advanced smart features: Smart Scene, TOU schedules, VPP-ready

• DC & AC surge protection (Type II)

• Optional AFCI for enhanced safety

• Supports V2G/V2H (upgradable)

Specifications

• Power Output: 8000W

• Cell Type: Lithium battery compatible

• Dimensions (W × H × D): 590 × 400 × 180 mm

• Weight: 28 kg

• Max Efficiency: 97.6%

• Nominal AC Voltage/Frequency: 230 V, 50 Hz / 60 Hz

• Operating Temperature: -35°C ~ 60°C

• Ingress Protection: IP66

• Battery Voltage Range: 80 ~ 480 V

• Max Battery Current: 50A (25A × 2)

• Max PV Input Voltage: 600 V

• MPPT Voltage Range: 40 ~ 560 V

• Start-up Voltage: 50 V

• No. of MPPTs: 4 (1 string per tracker)

• Max Input Current per MPPT: 20A

• EPS Output: 8000W (16 kW peak for 10s)

• Switchover Time: <10ms

• Communication Interfaces: RS485, Dongle, CT/Meter (optional), DRM

• Cooling: Natural cooling (fanless)

• Certifications: EN/IEC62109, AS/NZS 4777, G99, EN 50549, etc.

• Protection: DC isolation, reverse-polarity, over-temp, residual current

• SKU: SX-X1-VAST-8K

Applications

• Residential solar energy systems with storage

• Smart home setups including EV charging and load control

• Off-grid or microgrid compatible installations

• Virtual Power Plant (VPP) integration

• Backup power for sensitive electronics with rapid switchover

Why Choose This Product

• Flexible Design: Dual battery support and 4 MPPTs for complex system layouts

• High Performance: Handles up to 200% PV input with 97.6% efficiency

• Resilient Backup: EPS mode delivers 2× output for 10s with <10ms switchover

• Smart Features: VPP, TOU, and home automation support

• Rugged Build: Built to operate in harsh climates with no moving parts

What’s Included in the Box

• 1x SolaX X1 VAST 8.0kW Hybrid Inverter

• Integrated wiring cover

• Installation manual

• Communication port (RS485/Dongle) interface
