Description

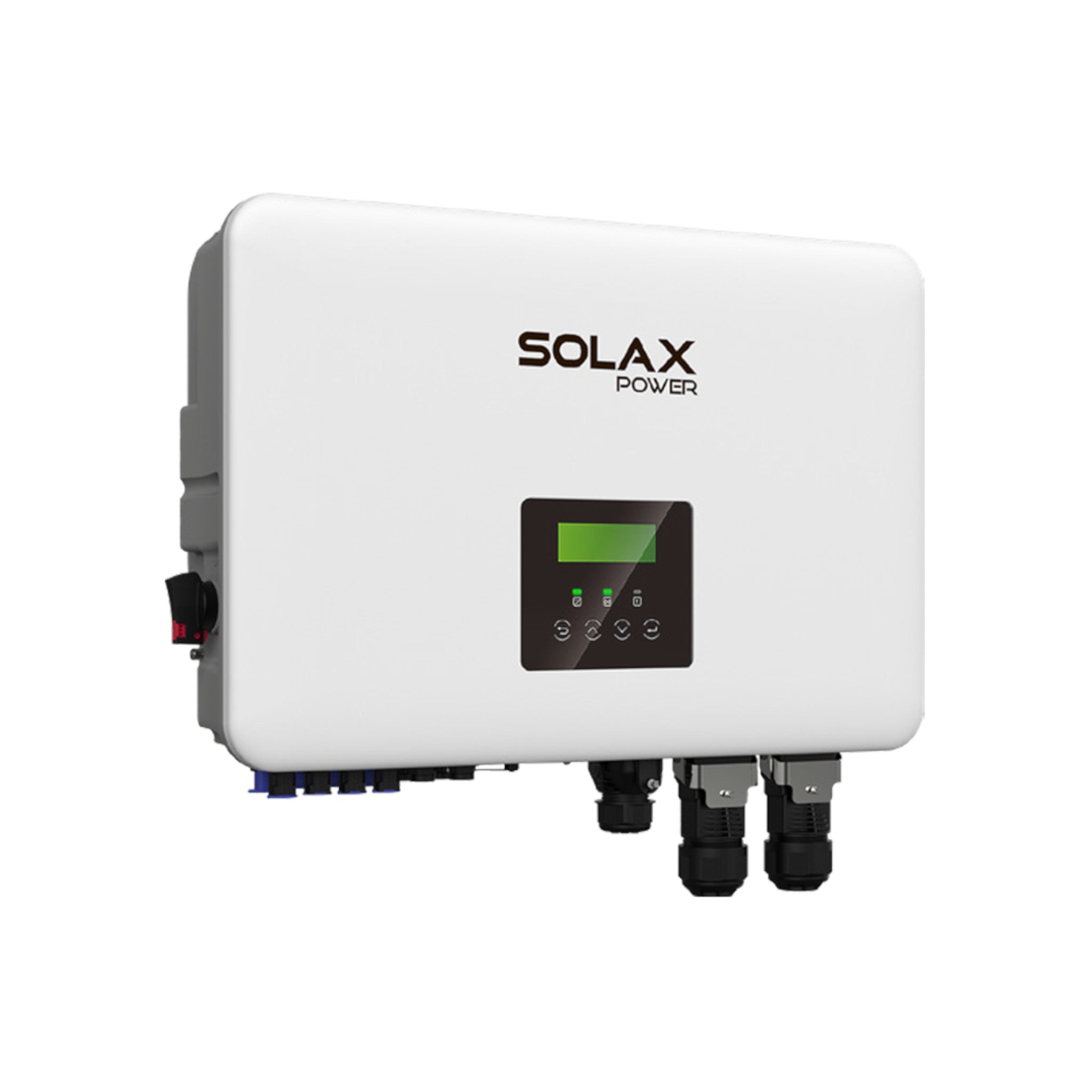

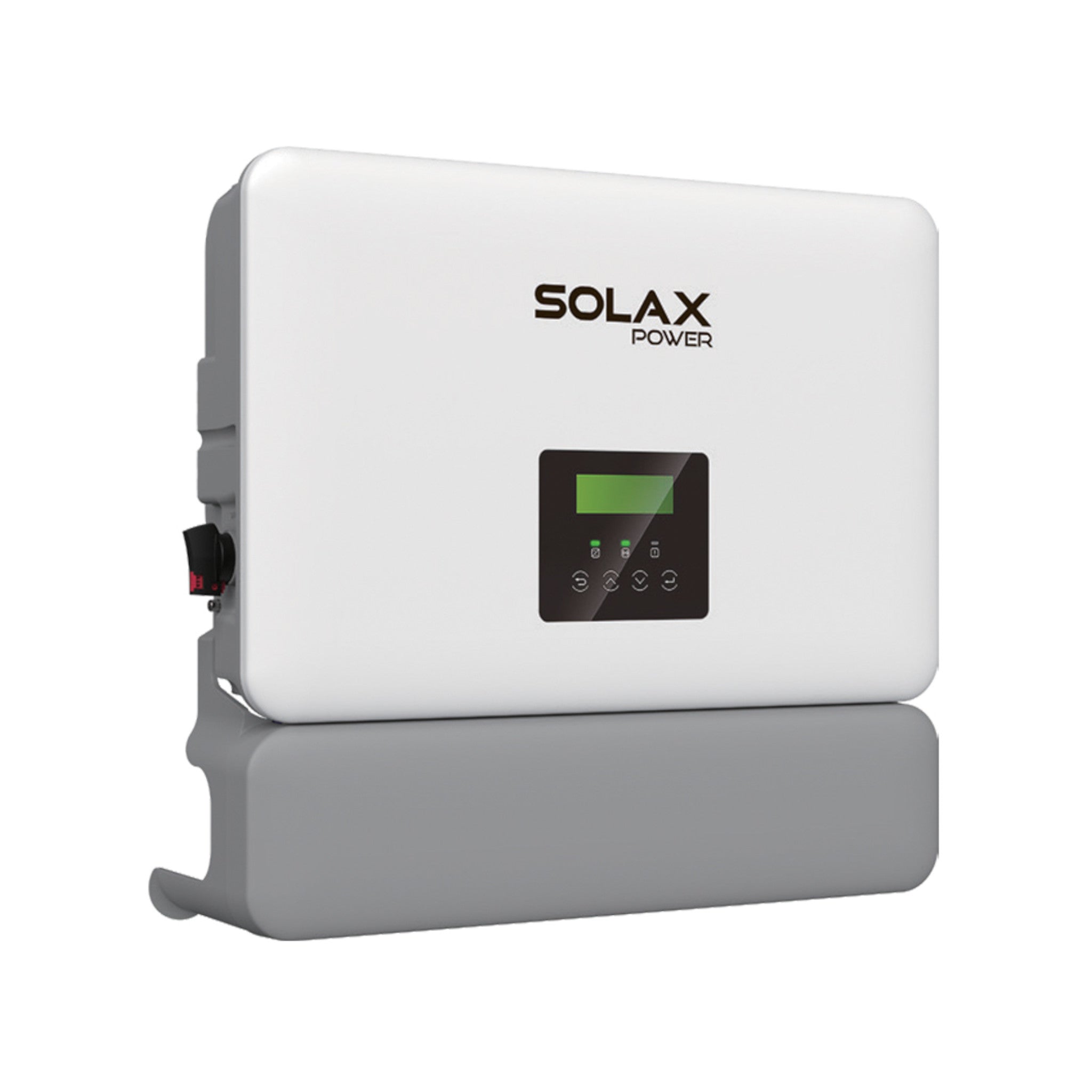

Solax X1 VAST 10.0kW Hybrid Inverter

Robust 10.0kW single-phase hybrid inverter designed for high-capacity residential solar systems. The X1 VAST 10kW supports dual battery ports, 200% PV oversizing, and advanced energy features such as smart load scheduling, EPS output with rapid switchover, and full VPP compatibility—all within a compact, IP66-rated enclosure.

Key Features

• 10kW hybrid inverter with 4 MPPTs and support for 200% PV oversizing

• Dual battery ports allow for flexible storage expansion (up to 50A combined current)

• EPS output supports up to 2× rated power for 10 seconds

• UPS-level switchover time <10ms for critical load support

• Type II DC and AC surge protection

• Optional AFCI protection for arc fault interruption

• Smart features: TOU schedules, Smart Scene, and V2G/V2H readiness

• VPP integration with standards such as OpenADR, IEEE2030.5

• Fanless, natural cooling design with IP66 enclosure

• Generator and microgrid compatible

Specifications

• Power Output: 10000W

• Cell Type: Hybrid

• Dimensions (W × H × D): 590 × 400 × 180 mm

• Weight: 28 kg

• Max Efficiency: 97.6%

• Battery Voltage Range: 80 ~ 480 V

• Max Battery Current: 50A (25A × 2)

• Max PV Input Voltage: 600 V

• MPPT Voltage Range: 40 ~ 560 V

• Start-up Voltage: 50 V

• No. of MPPTs: 4 (1 string per tracker)

• Max Input Current per MPPT: 20A

• EPS Output: 10000W (20 kW peak for 10s)

• Switchover Time: <10ms

• Nominal AC Voltage/Frequency: 230 V, 50 Hz / 60 Hz

• Operating Temperature: -35°C to 60°C

• Ingress Protection: IP66

• Communication Interfaces: RS485, CT/Meter (optional), Dongle, DRM

• Cooling: Natural cooling (fanless)

• Certifications: EN/IEC62109, AS/NZS 4777, G99, EN 50549, etc.

• Protections: Reverse polarity, residual current, over-temp, DC isolation

• SKU: SX-X1-VAST-10K

Applications

• High-capacity residential solar systems with battery storage

• Off-grid and microgrid installations

• Smart homes with EV charging and automated load control

• VPP-enabled installations using demand-response strategies

• Critical infrastructure needing reliable UPS-grade backup

Why Choose This Product

• Scalable Power: 10kW output with 4 MPPTs and 200% PV oversizing for demanding systems

• Smart Home Ready: Advanced load control, V2G/V2H, and VPP integration

• Backup Capability: Seamless EPS switchover in under 10ms for sensitive electronics

• Durability: Natural cooling and IP66 protection ensure long-term reliability

• Future-Proof: Open protocol support and upgrade paths for evolving energy needs

What’s Included in the Box

• 1x SolaX X1 VAST 10.0kW Hybrid Inverter

• Integrated wiring cover

• Installation manual

• Communication port (RS485/Dongle) interface

Disclaimer

All product information provided by Solareon UK is intended for general guidance only and may be subject to change or error. Solareon UK does not accept liability for any inaccuracies or omissions in the product specifications displayed. For accurate and detailed technical information, please refer to the manufacturer’s official datasheet available in the 'Downloads' section. We strongly advise confirming all critical details directly with the manufacturer prior to making purchasing or installation decisions.
