Description

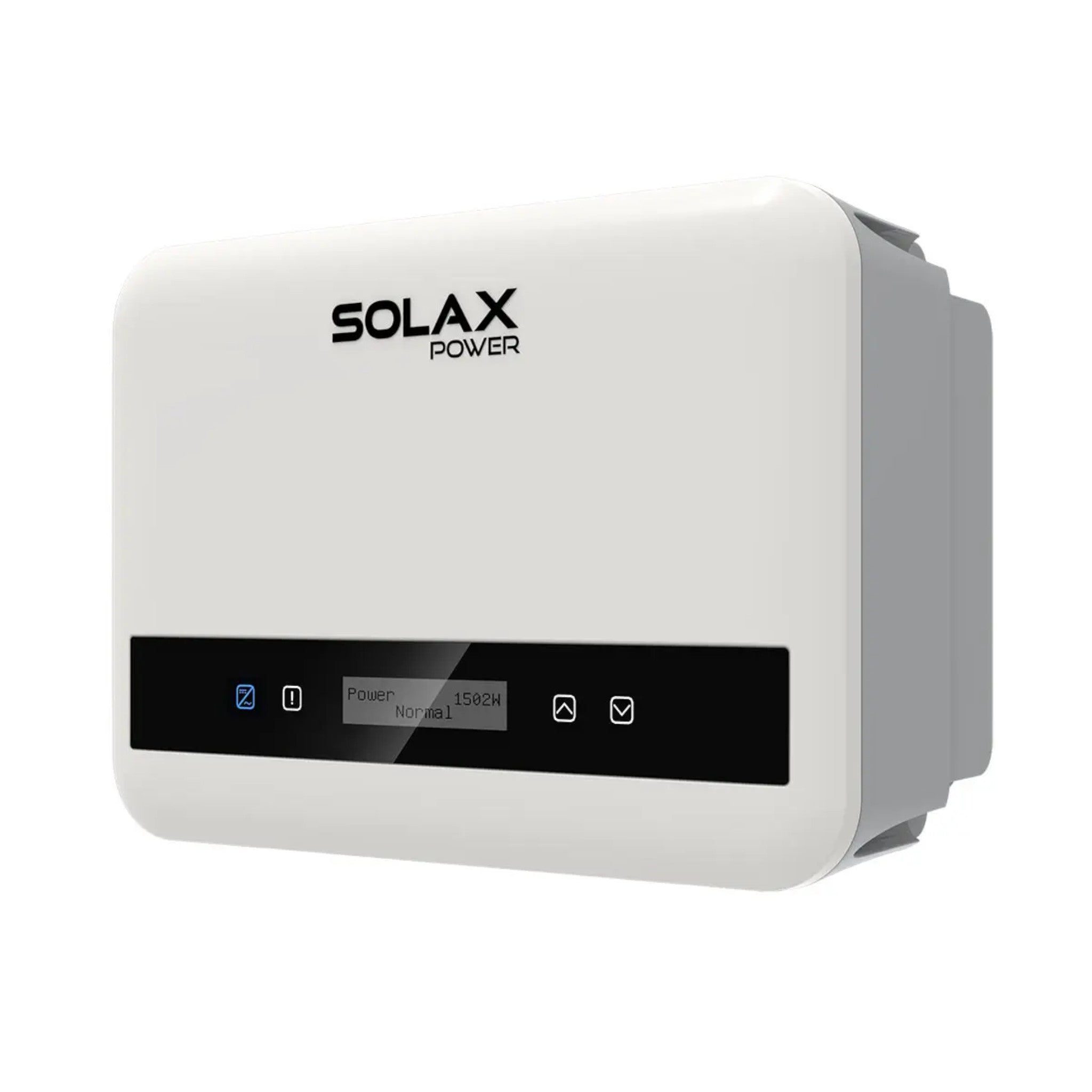

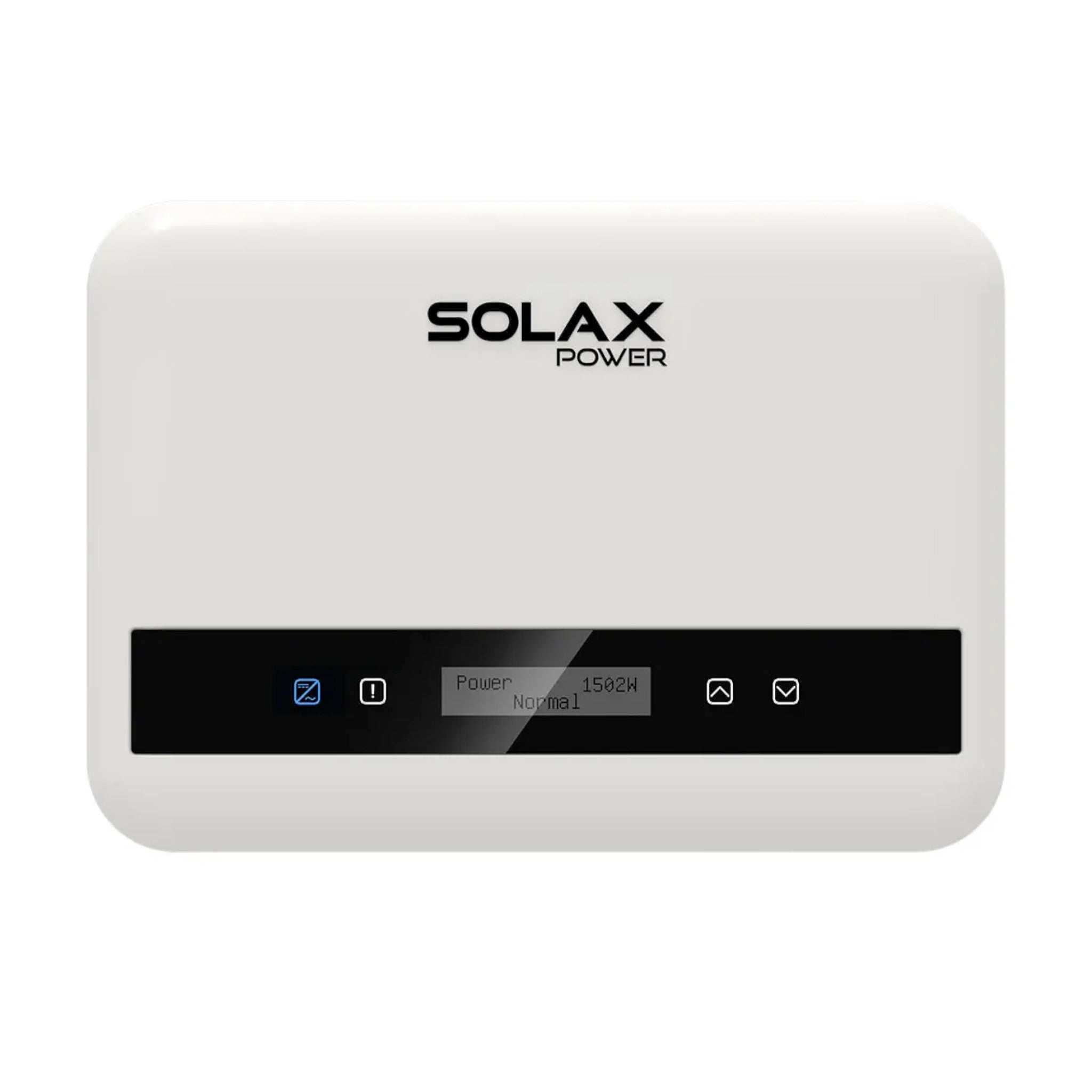

Solax X1 Mini G4 3.3kW String Inverter incl. WiFi and DC

Powerful and compact 3.3kW single-phase on-grid inverter engineered for residential solar applications. The X1 Mini G4 delivers up to 200% PV oversizing with a wide MPPT voltage range (40~550V) and smart features like I-V curve diagnostics, real-time monitoring, and built-in export control. With optional AFCI, advanced safety protections, and parallel inverter support, it’s a future-ready solution for efficient and reliable energy conversion.

Key Features

• 3.3kW rated AC output power

• MPPT voltage range: 40~550V

• Supports up to 200% PV oversizing

• Built-in export control functionality

• Optional AFCI and Rapid Shutdown compatibility

• I-V curve diagnostics and real-time cloud monitoring

• Type II SPD on AC and DC sides

• Smart EV charger and heat pump integration

• Operates at up to 4000m altitude with IP66 protection

• Natural cooling with fanless design

Specifications

• Power Output: 3300W

• Cell Type: String

• Dimensions (W x H x D): 290 × 206 × 120 mm

• Weight: 5.5 kg

• Maximum Efficiency: 98.0%

• European Efficiency: 97.0%

• Operating Temperature Range: -25°C to 60°C

• Protection Class: Mains: III, PV: II

• Ingress Protection: IP66

• Max. PV Input Voltage: 550V

• MPP Tracker Voltage Range: 40~550V

• Max. PV Input Current: 14.4A

• Nominal AC Voltage: 220 / 230 / 240 V

• Nominal Frequency: 50 / 60 Hz

• AC Frequency Range: 50 ± 5 Hz / 60 ± 5 Hz

• Cooling: Natural cooling

• Communication Interfaces: RS485, DRM, optional Meter/CT

• Night Power Consumption: < 1W

• SKU: SX-X1-3.3-S-D

Applications

• Residential rooftop solar systems

• EV charger-integrated energy setups

• Small-scale solar installations with smart load control

• Parallel inverter systems (up to 5 inverters)

• Off-grid or grid-tied hybrid energy systems

Why Choose This Product

• Maximum Output Efficiency: Up to 98% conversion and wide input range

• Enhanced Safety: Includes protections like RCD, overvoltage, and AFCI (optional)

• Monitoring Ready: Real-time insights via SolaX Cloud with 10s refresh rate

• Durable and Weatherproof: IP66-rated casing with fanless passive cooling

• Future-Ready Integration: Smart home compatibility with EV chargers and heat pumps

What’s Included in the Box

• 1x Solax X1 Mini G4 3.3kW String Inverter

• Built-in WiFi interface (monitoring dongle – optional)

• LCD + LED status display

• User and installation manual
