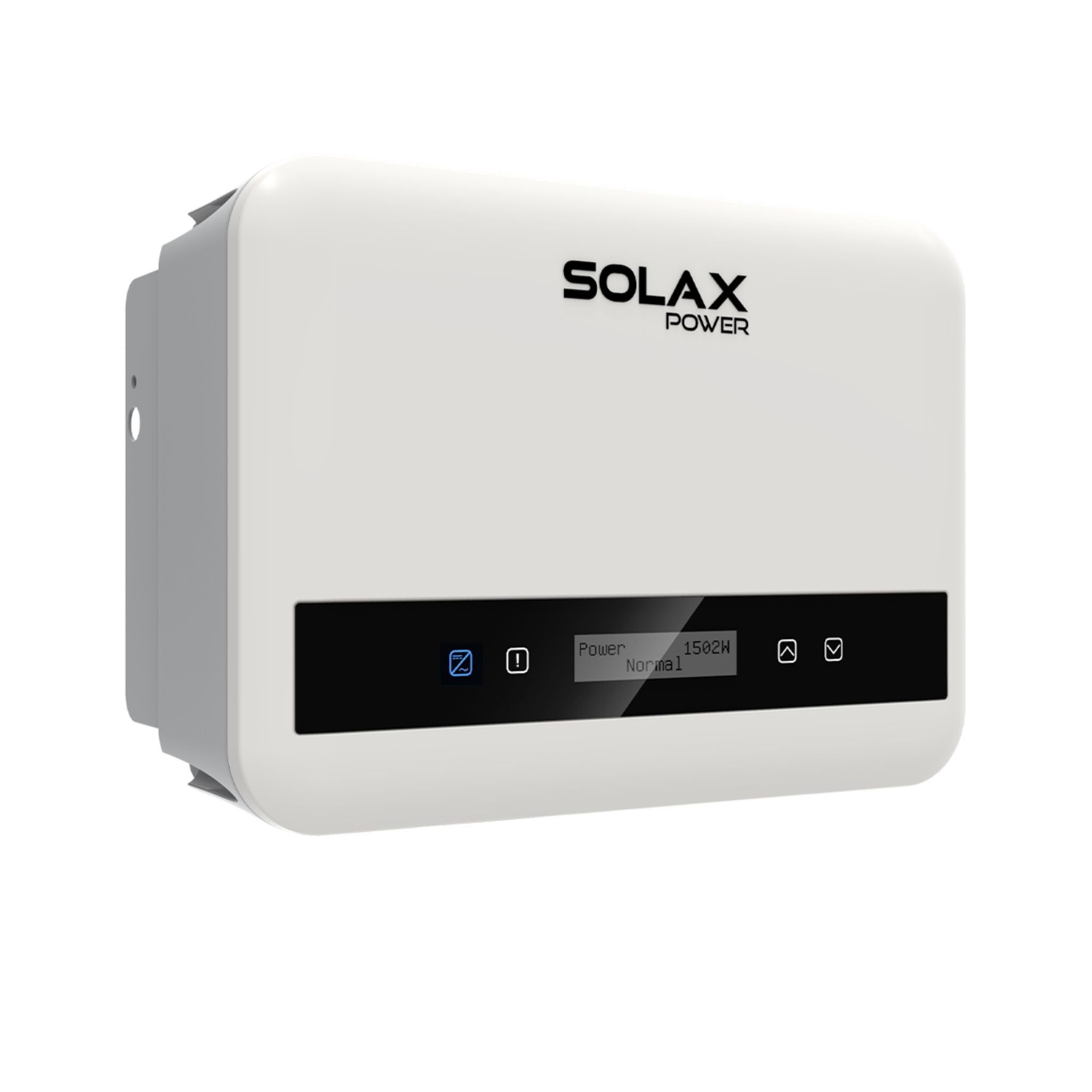

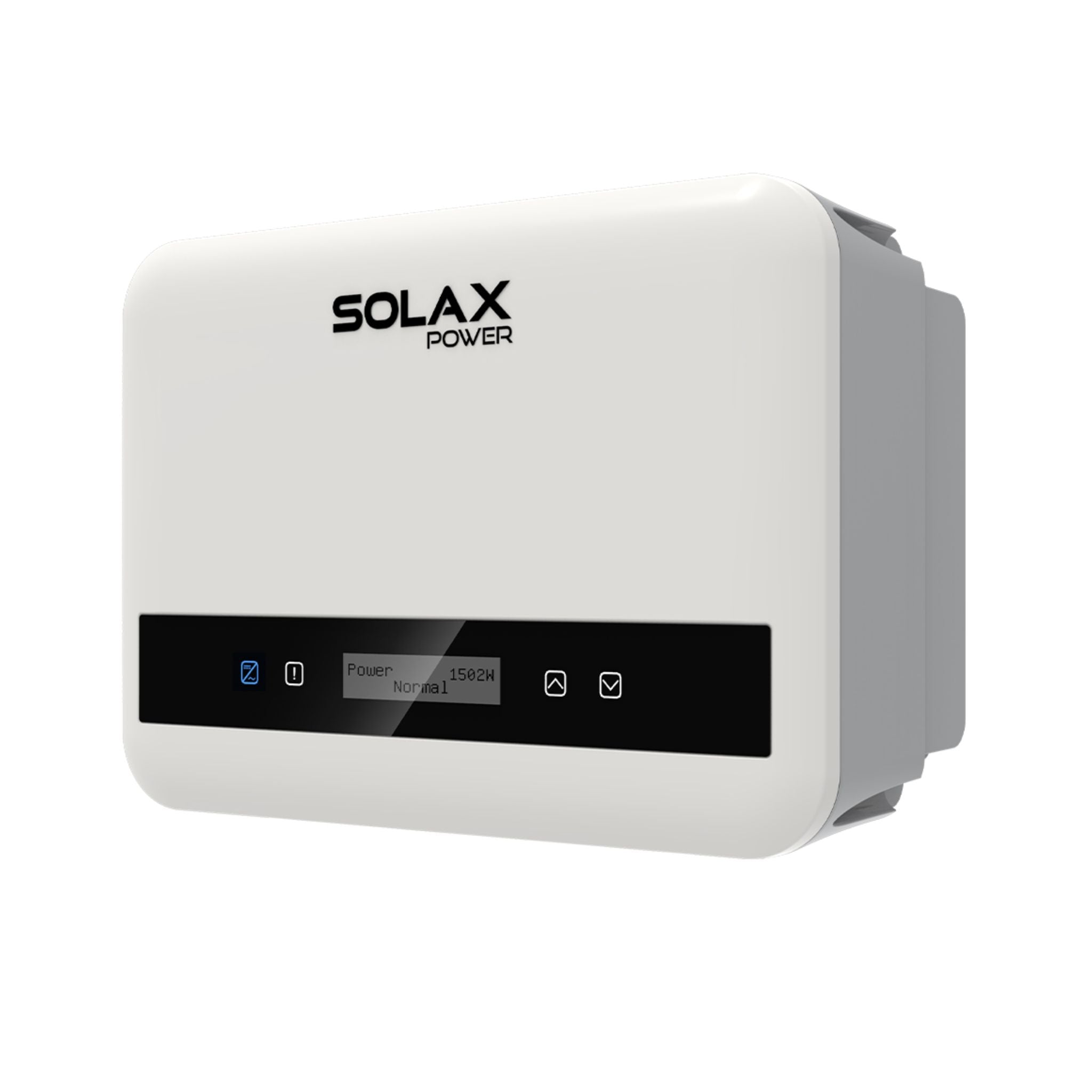

Solax X1 Mini G4 1.5kW String Inverter

The Solax X1 Mini G4 1.5kW String Inverter is a robust and compact inverter designed for small-scale residential solar systems. Delivering up to 1500W of AC output and supporting up to 3000W of DC input power with 200% oversizing capability, this model ensures maximum energy harvest and efficiency even under variable sunlight conditions.

With advanced MPPT global tracking, integrated Type II SPD protection, and IP66-rated enclosure, this inverter offers reliable performance in all weather conditions. It supports essential features such as rapid shutdown, export control, and optional AFCI, making it ideal for safe, efficient, and compliant solar installations.

Key Features

• Max AC Output: 1500W

• DC Input Oversizing: 200% (up to 3000W DC)

• Global MPP Tracking: Optimized for shaded conditions

• MPPT Voltage Range: Wide operating range from 40V to 450V

• High Efficiency: Up to 98% conversion efficiency

• Protection: Type II SPD on both AC and DC sides

• IP66 Protection: Water and dust-resistant enclosure

• Rapid Shutdown Ready: Meets safety requirements

• Export Control: Built-in function for grid compliance

• Optional AFCI: Arc fault detection for increased fire safety

• Compact Design: Small footprint for flexible installation

Specifications

• Brand: Solax

• Model: X1 Mini G4

• Power Rating (AC Output): 1500W

• DC Input Power (Max): 3000W

• Max PV Voltage: 450V

• Startup Voltage: 50V

• MPPT Voltage Range: 40V – 450V

• Number of MPPTs: 1

• Max AC Current: 6.5A

• Max Isc (DC): 22A

• Phases: Single-phase

• Max Efficiency: 98%

• IP Rating: IP66

• Version: 4.0

• Dimensions: 290 × 206 × 120 mm

• Weight: 5.2 kg

• Communication Interfaces: RS485, DRM, Meter/CT (optional)

Applications

• Small residential solar installations

• Projects with high DC-to-AC ratio requirements

• Installations in regions with variable or shaded sunlight

• Grid-tied systems needing export limitation or shutdown compliance

Why Choose This Product

• Delivers excellent performance with oversized DC input

• Designed for longevity and harsh outdoor environments

• Integrated advanced safety and compliance features

• High efficiency and global MPPT tracking technology

• Backed by Solax’s reputation for innovation and reliability

What’s Included in the Box

• 1× Solax X1 Mini G4 1.5kW String Inverter

• Mounting accessories

• User and installation manual

• Communication and interface connectors

Disclaimer

All product information provided by Solareon UK is intended for general guidance only and may be subject to change or error. Solareon UK does not accept liability for any inaccuracies or omissions in the product specifications displayed. For accurate and detailed technical information, please refer to the manufacturer’s official datasheet available in the 'Downloads' section. We strongly advise confirming all critical details directly with the manufacturer prior to making purchasing or installation decisions.
