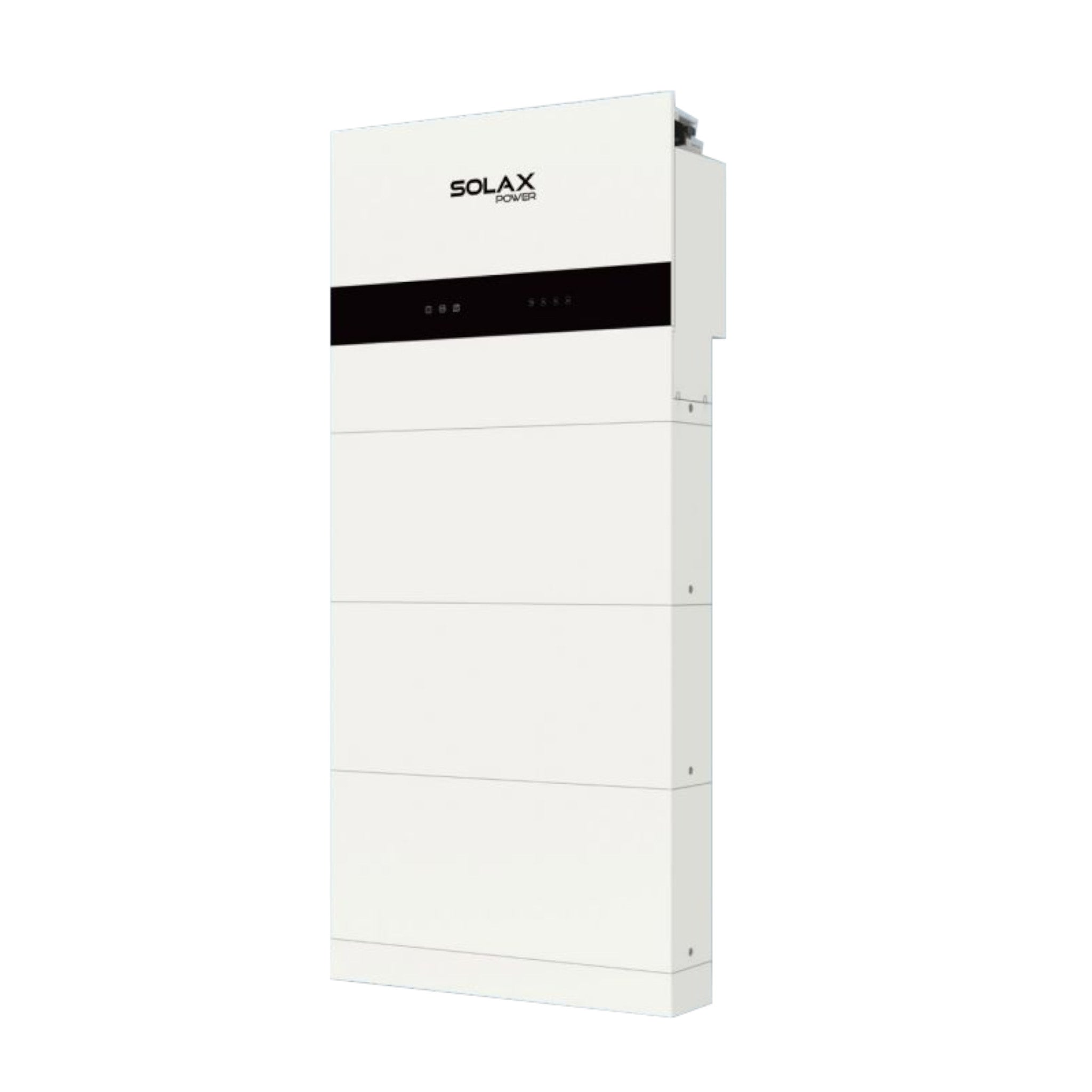

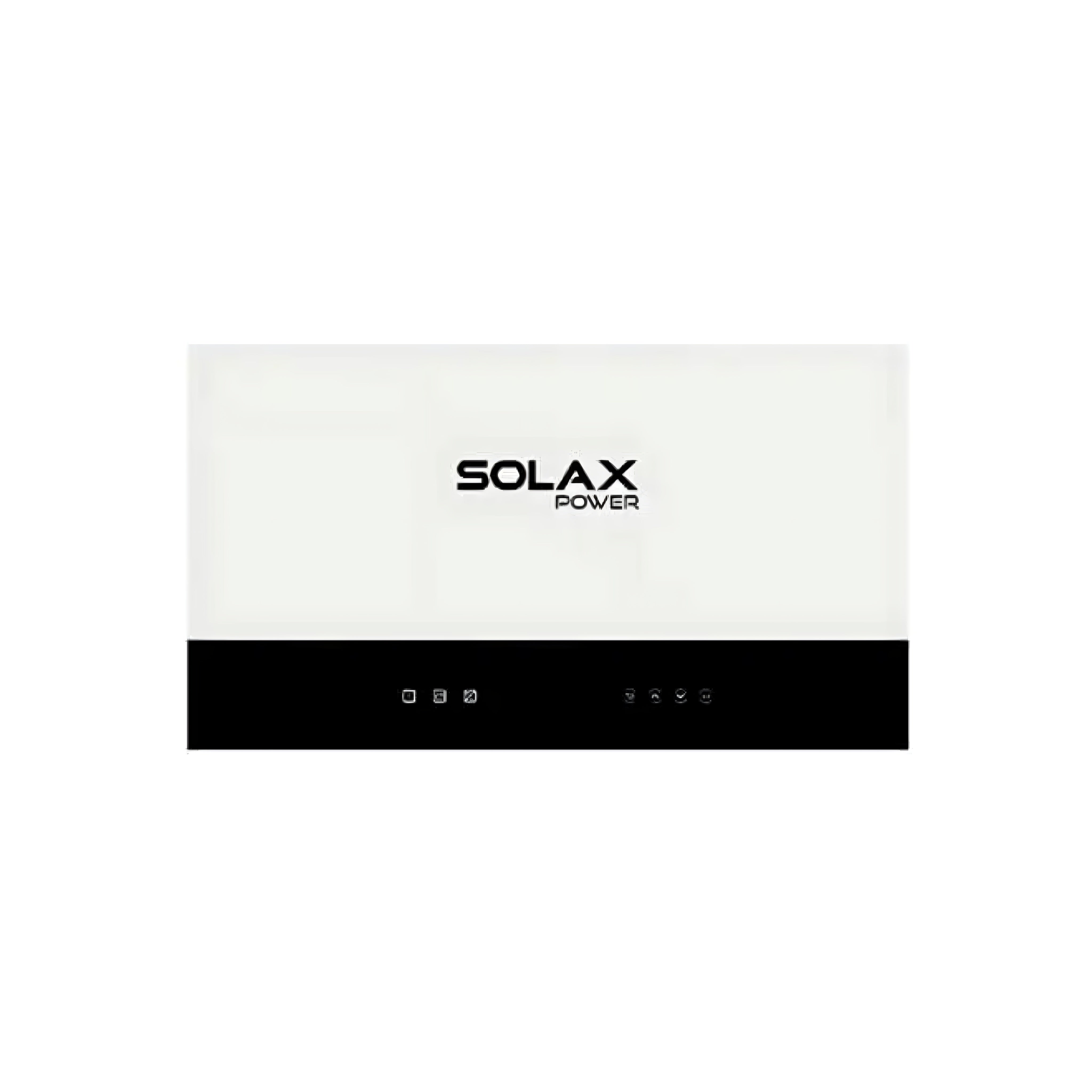

SolaX X1 IES 8kW Single Phase Hybrid Inverter

High-capacity 8.0kW single-phase hybrid inverter developed for premium residential energy systems with advanced backup and smart grid features. Offers exceptional PV oversizing, real-time grid/off-grid balancing, and robust EPS functionality for uninterrupted power and optimal performance in demanding scenarios.

Key Features

• 8kW rated hybrid inverter with triple MPPT

• EPS output supports up to 200% rated power for 10 seconds

• AI forecasting and Virtual Power Plant (VPP) ready

• All-in-one plug-and-play system design

• UPS-level switchover time of <10 ms

• IP66 protection with fanless natural cooling

• Smart load management support (EV, heat pump, etc.)

• Type II SPD protection on AC and DC sides

• AFCI (optional) for enhanced electrical safety

• Designed for high-altitude and extreme temperature conditions

Specifications

• Power Output: 8000W

• Cell Type: Hybrid

• Dimensions (W x H x D): 717 × 350 × 210 mm

• Weight: 26.4 kg

• Maximum Efficiency: 97.6%

• European Efficiency: 97.0%

• Operating Temperature Range: -35°C to 60°C (derating >45°C)

• Ingress Protection: IP66

• Max. PV Input Voltage: 600V

• MPP Tracker Voltage Range: 50~600V

• Max. PV Input Current: 20A per MPPT (3 MPPTs)

• Nominal AC Voltage: 220 / 230 / 240 V

• Nominal Frequency: 50 / 60 Hz

• EPS Output Power: 8000W (2× for 10s)

• Switchover Time: <10ms

• Cooling: Natural cooling

• Communication Interfaces: RS485, CAN, Pocket-X, DO, DI

• Night Power Consumption: < 5W (cold), < 40W (hot standby)

• SKU: X1-IES-8K

Applications

• High-performance residential solar + battery systems

• Homes requiring advanced backup and load management

• Micro-grid and VPP integration scenarios

• Smart home systems with EV and heat pump control

• Off-grid capable installations in harsh environments

Why Choose This Product

• Powerful Output: Handles demanding loads with 8kW EPS and surge performance

• Grid-Ready: AI forecasting and open standards for VPP participation

• Resilient Design: Dust- and water-resistant with fanless passive cooling

• Safe & Smart: Includes SPD, optional AFCI, and flexible communication ports

• Fully Integrated: No need for external modules—true plug-and-play experience

What’s Included in the Box

• 1x SolaX X1 IES 8kW Hybrid Inverter

• Built-in LCD display

• WiFi or Pocket-X dongle (optional)

• User and installation manual
