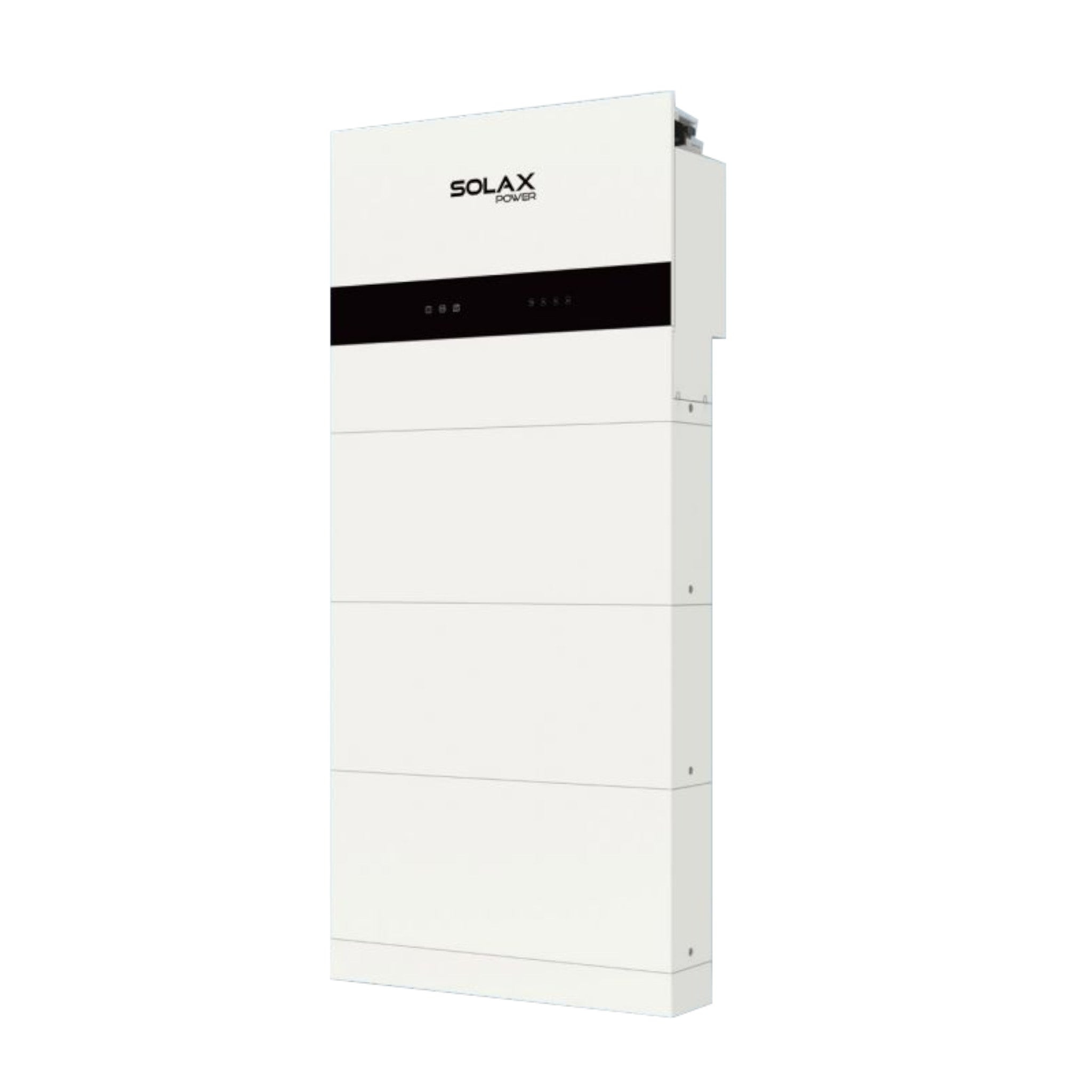

SolaX X1 IES 3.7kW Single Phase Hybrid Inverter

High-performance 3.7kW single-phase hybrid inverter designed for advanced residential energy storage systems. The SolaX X1 IES integrates solar generation, battery management, and smart energy features into a compact, all-in-one design. With 200% oversizing capability, 3 MPPT inputs, low startup voltage, and seamless grid/off-grid switchover, this hybrid inverter is engineered for efficient, reliable, and intelligent home power solutions.

Key Features

• 3.7kW rated hybrid inverter for solar and battery integration

• All-in-one plug-and-play design with smart load management

• Supports 200% PV input power and 50A charge/discharge current

• Up to 200% EPS output power for 10 seconds

• UPS-level switchover time <10ms for uninterrupted backup

• Compatible with wireless meters, EV chargers, heat pumps

• Smart forecasting via AI for solar generation and consumption

• VPP-ready (OpenADR, IEEE2030.5, FCAS, API compatibility)

• IP66-rated enclosure with natural cooling

• Optional AFCI and integrated Type II SPD protection (AC/DC)

Specifications

• Power Output: 3680W


• Dimensions (W x H x D): 717 × 350 × 210 mm

• Weight: 26.4 kg

• Maximum Efficiency: 97.6%

• European Efficiency: 97.0%

• Operating Temperature Range: -35°C to 60°C (derating >45°C)


• Ingress Protection: IP66

• Max. PV Input Voltage: 600V

• MPP Tracker Voltage Range: 50~600V

• Max. PV Input Current: 20A per MPPT (3 MPPTs)

• Nominal AC Voltage: 220 / 230 / 240 V

• Nominal Frequency: 50 / 60 Hz

• EPS Output Power: 3680W (2x for 10s)

• Switchover Time (UPS): <10ms

• Cooling: Natural cooling

• Communication Interfaces: RS485, CAN, Pocket-X, DO, DI

• Night Power Consumption: < 5W (cold), < 40W (hot standby)

• SKU: X1-IES-3.7K

Applications

• Residential solar + battery storage systems

• Backup power for sensitive home electronics

• Micro-grid and off-grid installations

• Smart home energy management with forecasting

• Integration with EV chargers and heat pump systems

Why Choose This Product

• True Hybrid Flexibility: Combines PV, battery, and backup seamlessly

• Smart Controls: Forecasting and AI-driven energy optimization

• Fast & Reliable Backup: UPS-like switching in less than 10ms

• All-in-One Design: Compact, IP66-protected, fanless system

• Future-Ready: Compatible with virtual power plant (VPP) networks

What’s Included in the Box

• 1x SolaX X1 IES 3.7kW Hybrid Inverter

• Built-in LCD display and communication ports

• WiFi or Pocket-X dongle (optional)

• User and installation manual
