Description

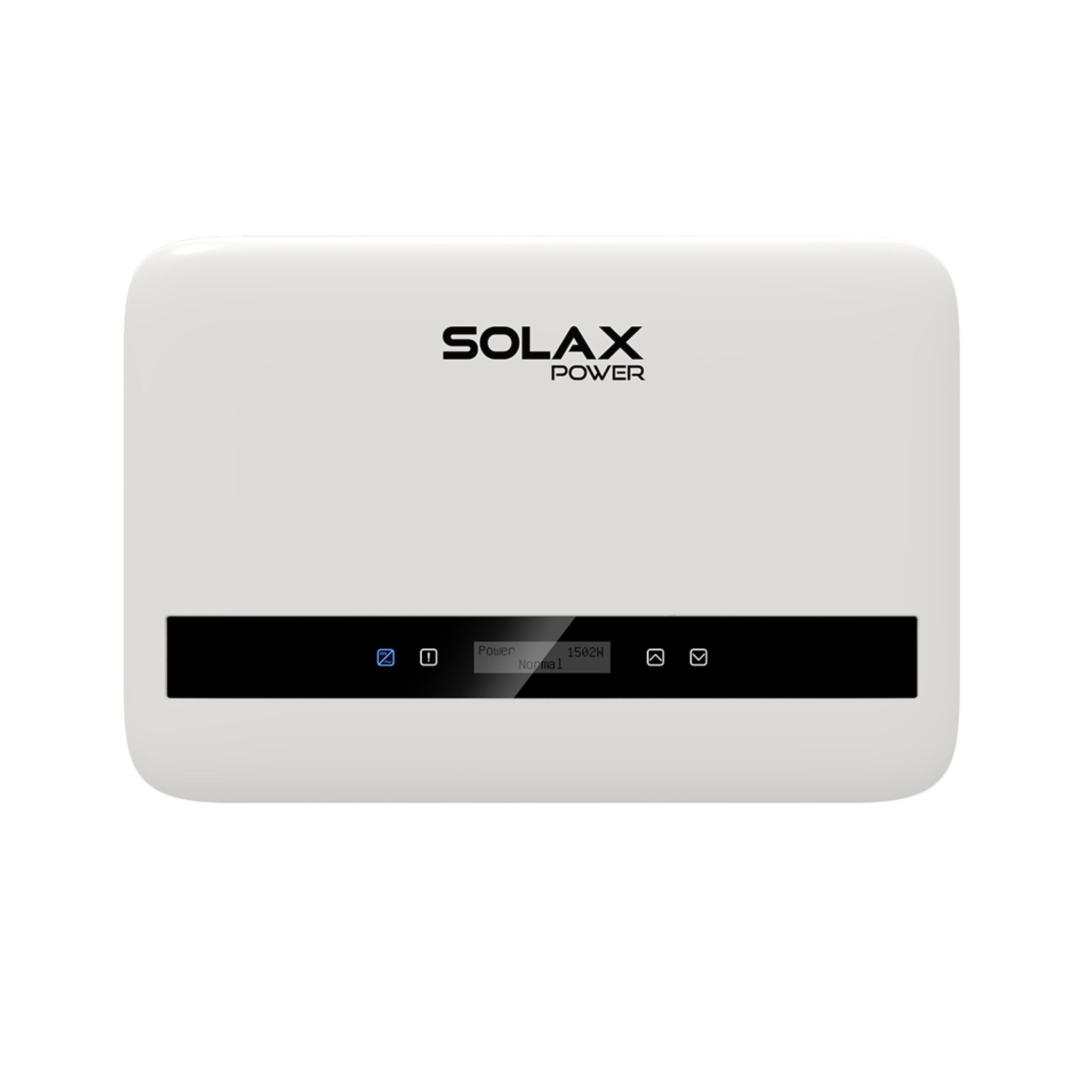

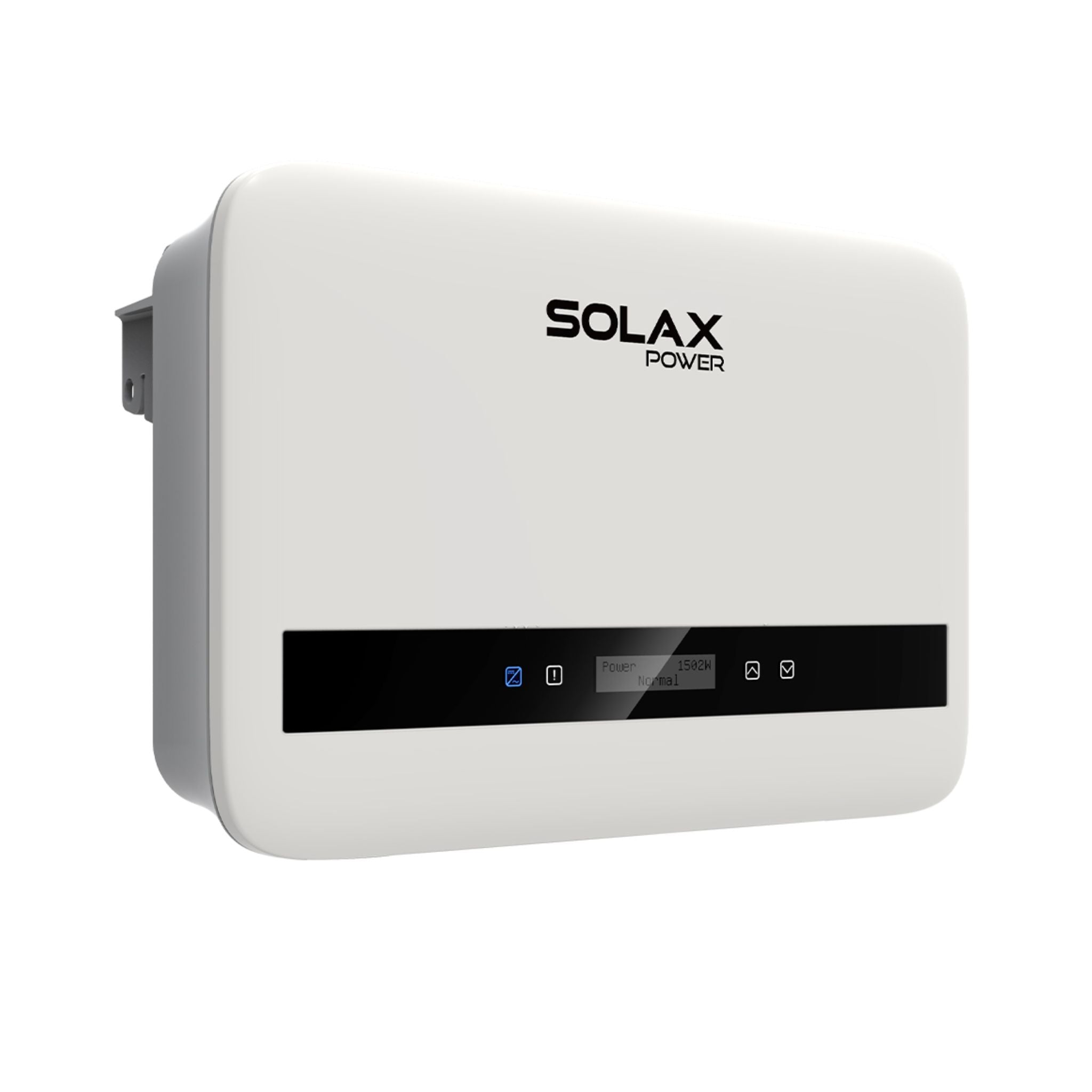

SolaX X1 BOOST G4 6.0kW Single Phase Inverter

The SolaX X1 BOOST G4 6.0kW is a next-generation single-phase solar inverter designed for high-efficiency residential and light commercial PV systems. Supporting up to 200% oversizing and offering robust protection features, this inverter is ideal for systems demanding flexibility, power, and intelligent monitoring. With IP66 protection, remote upgrade capabilities, and smart functionality, the X1 BOOST G4 6.0kW delivers reliability and performance even in challenging environments.

Key Features

• 200% oversizing capability for maximized solar yield

• Max. DC input current of 16A per string

• Built-in AC and DC surge protection devices (SPD)

• High maximum efficiency of 97.8%

• Dual MPPTs with wide voltage range for flexible design

• Remote upgrade and maintenance functionality

• 24-hour system monitoring and smart diagnostics (optional)

• IP66 weather-resistant housing for outdoor installation

• WiFi V3 and optional LAN V3 communication

• 5-year standard warranty with free upgrade option to 10 years

Specifications

• Max output power: 6000W

• Max output current: 26.1A

• Number of phases: 1

• Number of MPPTs: 2

• MPPT voltage range: 40V – 560V

• Max DC input power: 12000W

• Max Isc current (per MPPT): 22A

• Max DC voltage: 600V

• Start-up voltage: 50V

• Version: 4.0

• Max efficiency: 97.8%

• IP rating: IP66

• Export limitation support: With meter

• Weight: 15 kg

• Dimensions (W × H × D): 341.5 × 430 × 143 mm

• Communication interfaces: RS485, WiFi V3, optional LAN V3

• Warranty: 5 years (optional free upgrade to 10 years)

Applications

• Residential PV systems with high energy demand

• Small commercial solar installations

• Systems requiring high oversizing capabilities and smart management

Why Choose This Product

• Supports large PV arrays with 200% oversizing

• Designed for fast installation and easy setup

• Intelligent monitoring with optional 24h access

• High environmental resistance with IP66 rating

• Advanced safety features with integrated SPD protection

What’s Included in the Box

• SolaX X1 BOOST G4 6.0kW Inverter

• Mounting accessories

• User manual

• Communication module (WiFi V3, optional LAN V3 if selected)
