Description

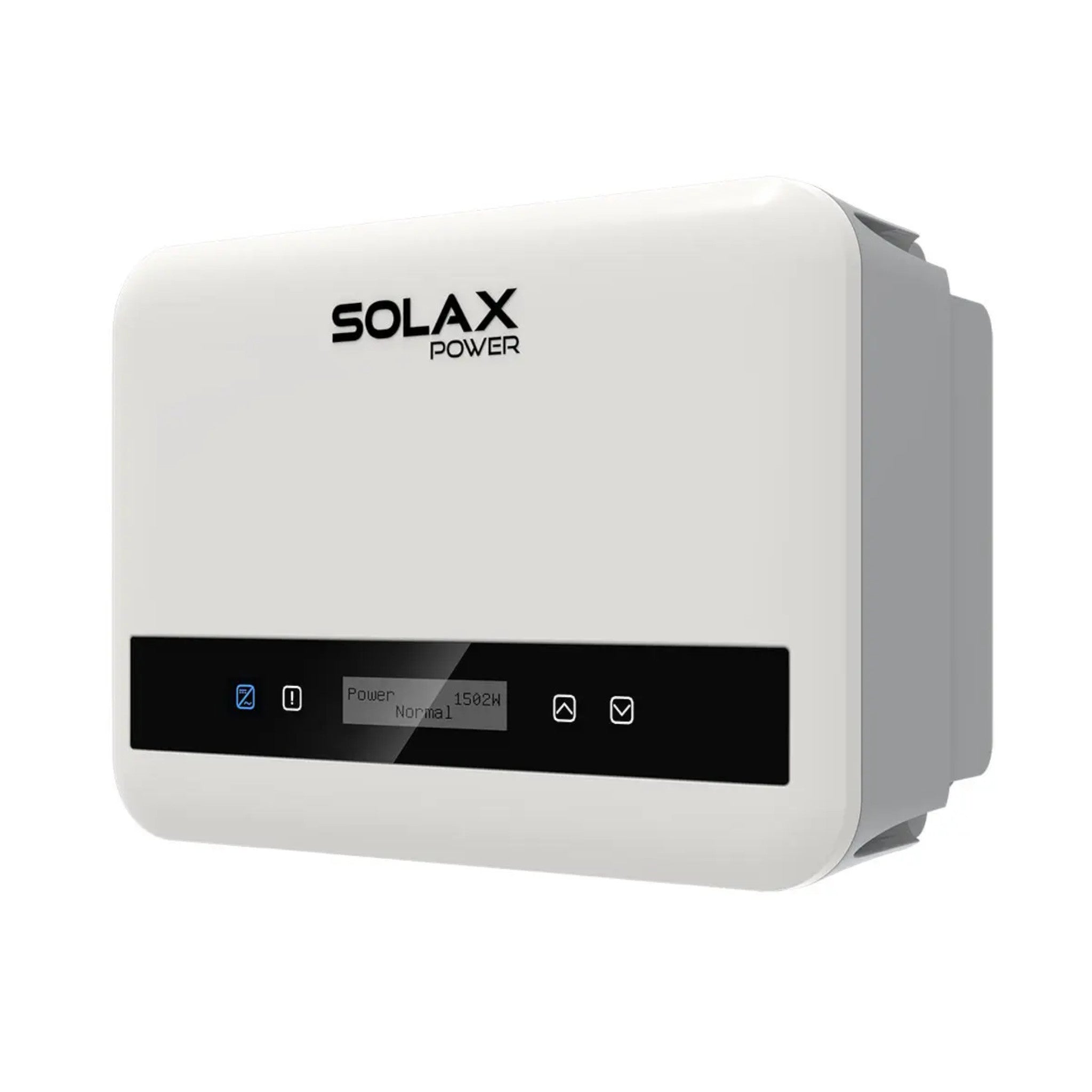

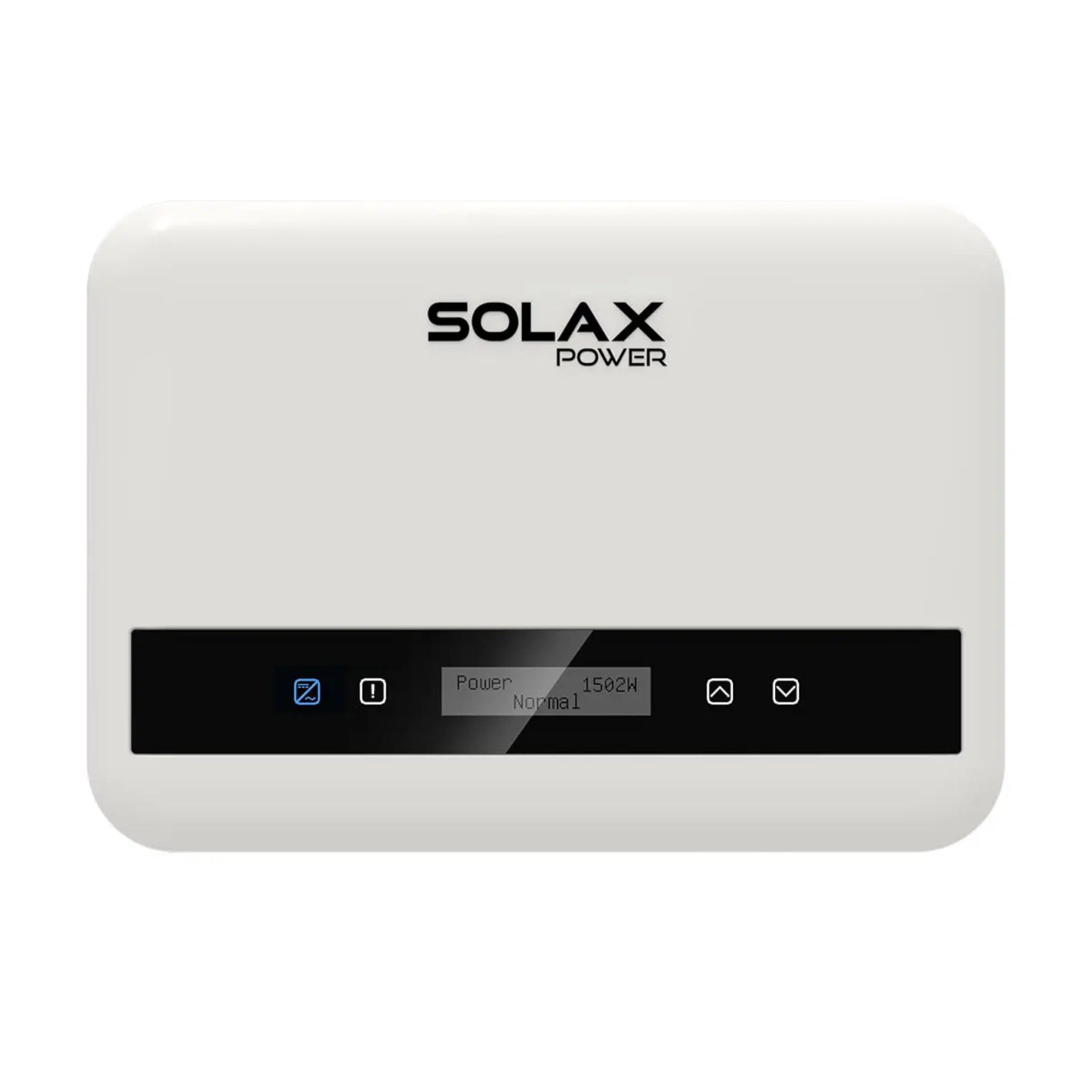

SolaX X1 BOOST G4 2.5kW Single Phase Inverter

High-efficiency 2.5kW single-phase on-grid inverter designed to support modern residential solar energy systems. The X1 BOOST G4 features smart monitoring, built-in export control, and optional rapid shutdown and AFCI protection. With ultra-wide MPPT voltage range and support for 200% PV oversizing, it offers flexible integration and reliable performance in all conditions.

Key Features

• 2.5kW rated AC output power

• Ultra-wide MPPT voltage range (40~560V)

• Supports 200% PV oversizing with 16A DC input

• Built-in global MPP scan and I-V curve diagnosis

• Optional AFCI and Rapid Shutdown compatibility

• Type II SPD on both AC and DC sides

• Real-time 10s data updates (WiFi dongle required)

• Built-in export control and residual current detection

• EV charger and Heat Pump system adaptable

• IP66 protection with natural cooling and quiet operation

Specifications

• Power Output: 2500W


• Dimensions (W x H x D): 404 × 274 × 146 mm

• Weight: 11 kg

• Maximum Efficiency: 98%

• European Efficiency: 97%

• Operating Temperature Range: -25°C to 60°C

• Protection Class: Mains: III, PV: II

• Ingress Protection: IP66

• Max. PV Input Voltage: 600V

• MPP Tracker Voltage Range: 40~560V

• Max. PV Input Current: 10.9A

• Nominal AC Voltage: 220 / 230 / 240 V

• Nominal Frequency: 50 / 60 Hz

• AC Frequency Range: ±5 Hz

• Cooling: Natural cooling

• Communication Interfaces: USB / RS485 / DRM, optional Meter/CT

• Night Power Consumption: < 3W

• SKU: X1-BOOST-2.5K-G4

Applications

• Residential rooftop solar systems

• Smart home solar installations

• EV charger-integrated setups

• Parallel inverter systems with Modbus

• Small-scale energy projects with load management

Why Choose This Product

• High Performance: Up to 98% conversion efficiency

• Smart Monitoring: Real-time updates and SolaX Cloud support

• Flexible Design: Compatible with EV chargers and heat pump solutions

• Robust Safety: Optional AFCI, SPD, and rapid shutdown compatibility

• Quiet and Durable: IP66 rated with fanless natural cooling

What’s Included in the Box

• 1x SolaX X1 BOOST G4 2.5kW Single Phase Inverter

• Built-in status display (LED + LCD)

• WiFi monitoring dongle (optional)

• User and installation manual
