Description

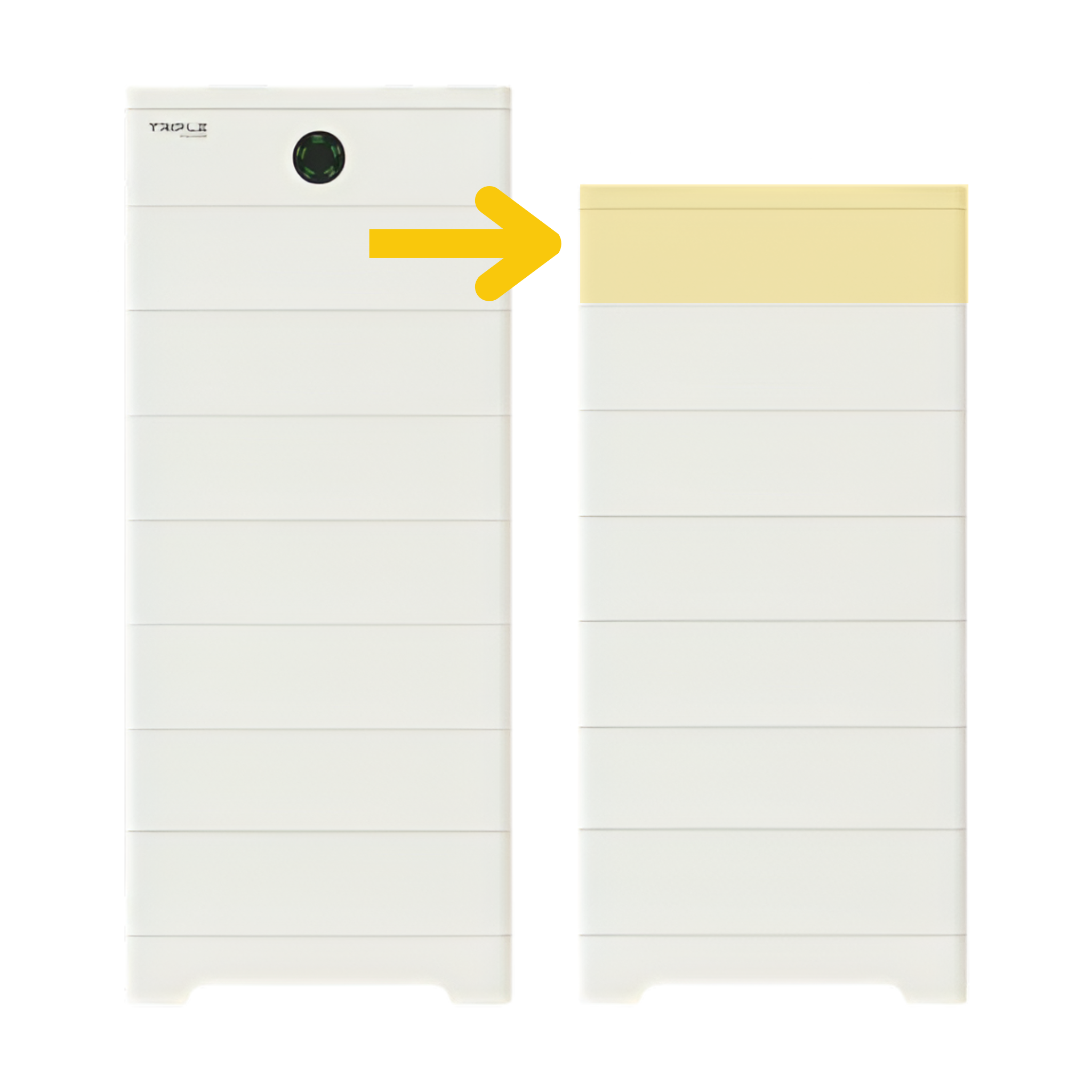

SolaX Triple Power Series Box for TP-HS3.6 Battery System

The SolaX Triple Power Series Box is a critical accessory for large TP-HS3.6 battery installations, designed to connect and manage multiple battery stacks safely and efficiently. It ensures proper system balance, communication, and protection, enabling seamless operation of high-capacity SolaX battery setups.

Key Features

• Essential for Large Systems: Required when installing 10 or more TP-HS3.6 batteries (two-stack configuration).

• Safe and Reliable: Maintains system balance and provides protection for multiple battery modules.

• Seamless Communication: Connects battery stacks to BMU and compatible SolaX inverters for efficient energy management.

• Easy Installation: Pre-wired for plug-and-play setup, simplifying large battery system integration.

• Scalable: Supports expansion of TP-HS3.6 battery systems beyond 8 modules.

Important Notes

• Series Box is required for 10 or more TP-HS3.6 batteries (two-stack configuration).

• Ensure correct use of BMU(s) along with the Series Box for safe and reliable system operation.

• Compatible with the following SolaX inverters:

  • X1 Hybrid G4 (2-8 batteries)

  • X3 Hybrid G4 (3-13 batteries)

  • X3 Hybrid G4 Pro (3-26 batteries)

  • X3 Ultra (3-26 batteries, up to 13 per battery port)

Specifications / Key Features

• Compatibility: TP-HS3.6 battery modules

• Function: Connects and manages multiple battery stacks

• Installation: Pre-wired for easy plug-and-play setup

• Support: Ensures proper communication with BMU and inverter

• System Requirement: Needed for two-stack installations (10+ batteries)

Applications

• Large residential and commercial energy storage systems

• Multi-stack TP-HS3.6 battery setups

• Ensuring safe and efficient operation of high-capacity battery systems

What’s Included in the Box

• 1 x SolaX Triple Power Series Box

• Series Box
• Base
• Anti-tipping Bracket
• Accessory Kit

Why Buy This Product

• System Reliability: Ensures proper connection and protection of multiple battery stacks.

• Seamless Integration: Works with BMU and compatible SolaX inverters.

• Scalable & Flexible: Supports expansion of your battery system beyond 8 modules.

• Ease of Installation: Pre-wired design simplifies large system setup.

• Peace of Mind: Provides safe and stable operation for high-capacity TP-HS3.6 battery installations.

Battery Limits (Important)

• Minimum Battery Requirements
  • Single Phase: 2x TP-HS Batteries
  • Three Phase: 4x TP-HS Batteries
• Maximum Battery Limit
  • Single Phase: 8x TP-HS Batteries
  • Three Phase: 13x TP-HS Batteries
  • X3-ULTRA: 26x TP-HS Batteries

This is the Series Box for use with the TP-HS25 and TP-HS36 Battery Modules from SolaX Power.
