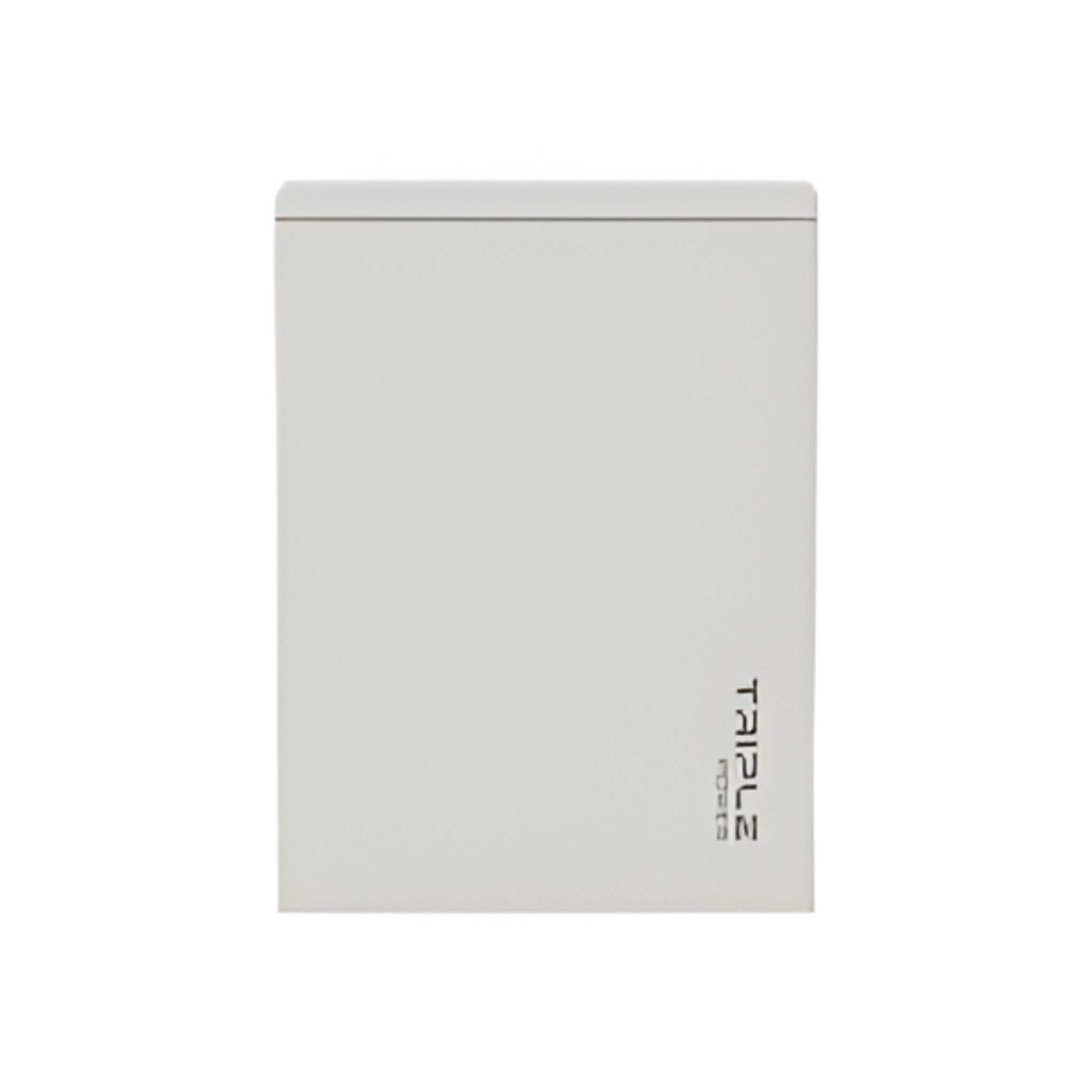

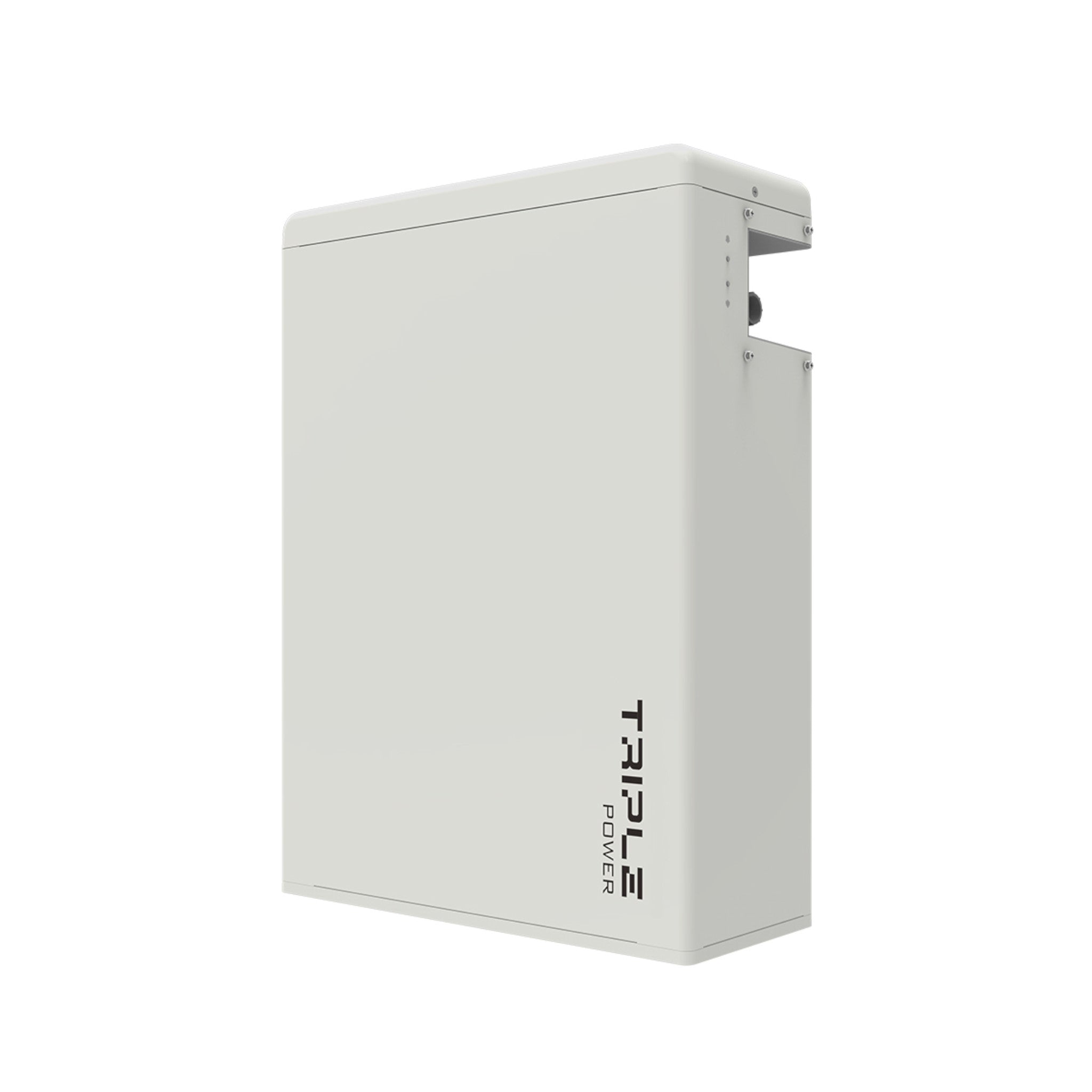

SolaX Triple Power HV 5.8kWh LFP Extension Battery SLAVE V2

The SolaX Triple Power HV 5.8kWh LFP Extension Battery SLAVE V2 is a high-voltage lithium iron phosphate (LiFePO₄) battery module designed to expand the storage capacity of your SolaX energy system. Built for performance, safety, and longevity, this compact unit supports 100% depth of discharge and delivers up to 4kW of charge/discharge power. With plug-and-play installation and the ability to scale up to 23.2kWh, it’s a flexible and efficient choice for homes and small businesses using SolaX inverters.

Key Features

• 100% depth of discharge for full energy utilization

• High power output: up to 4000 W charge/discharge

• Scalable design – stack up to 4 batteries (23.2kWh) per inverter

• Compact footprint for easy integration into home systems

• 6000+ cycle life ensures long-term reliability

• High voltage design reduces cable size requirements

• Plug & play installation – all cables included

• Compatible with SolaX BMS Parallel Box for larger setups:

  • 2, 4, or 6 batteries in single-phase systems

  • 4, 6, or 8 batteries in three-phase systems

Specifications

• Product name: SolaX Triple Power HV 5.8kWh Slave V2

• Supplier Part Number: Triple Power 5.8kWh Slave V2

• Battery type: Lithium-Ion (LiFePO₄)

• Nominal energy: 5800 Wh

• Nominal voltage: 115 V

• Depth of discharge: 100%

• Continuous discharge power: 2875 W

• Max. discharge (5 minutes): 4000 W

• Surge discharge (15 seconds): 4000 W

• Max. charge rate (5 minutes): 4000 W

• Weight: 72.2 kg

• Scalability: Up to 4 batteries per system

• Cycle life: >6000

• Mounting: Floor or wall-mounted

• Protection: IP rating not specified

Applications

• Residential solar energy storage expansion

• Backup power and peak load support

• Systems needing high discharge rates and full DoD

• Single-phase or three-phase setups using SolaX inverters

• Flexible and compact energy storage design

Why Choose This Product

• Delivers full 100% usable energy per cycle

• Compact and modular for easy scaling

• Compatible with advanced BMS and multi-battery setups

• Safe and stable LiFePO₄ technology

• Built for long service life and low maintenance

• Efficient high-voltage operation with smaller cables

What's Included in the Box

• 1 × SolaX Triple Power 5.8kWh Slave V2 Battery

• Pre-configured plug & play cable set

• Mounting accessories and user manual

Please note: Only 1 or 2 Slave batteries can be used with 1x Master in a single-phase system (Maximum 3 batteries in total) and 1, 2 or 3 Slave batteries can be used with 1x Master in a three-phase system (Maximum 4 batteries in total).
