Description

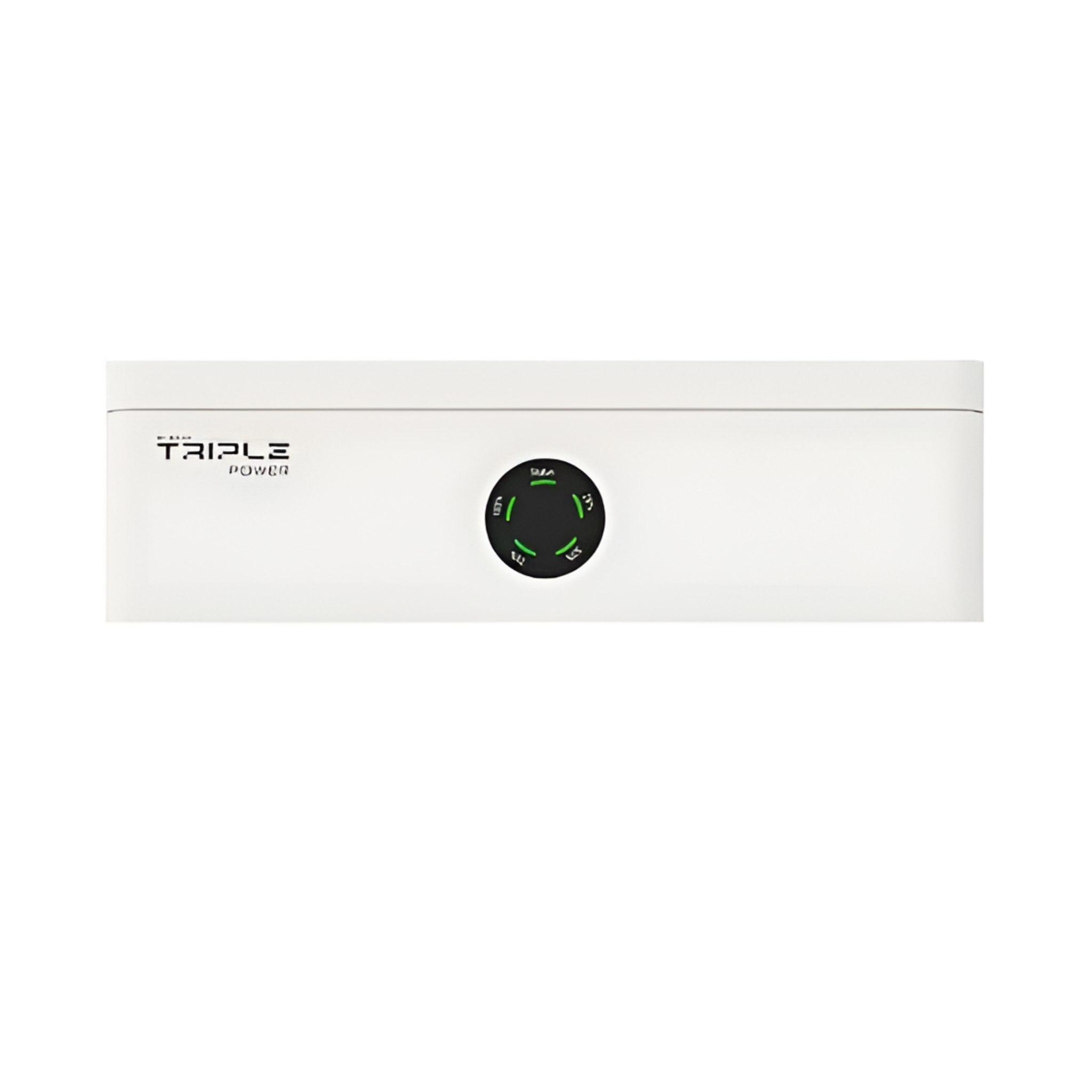

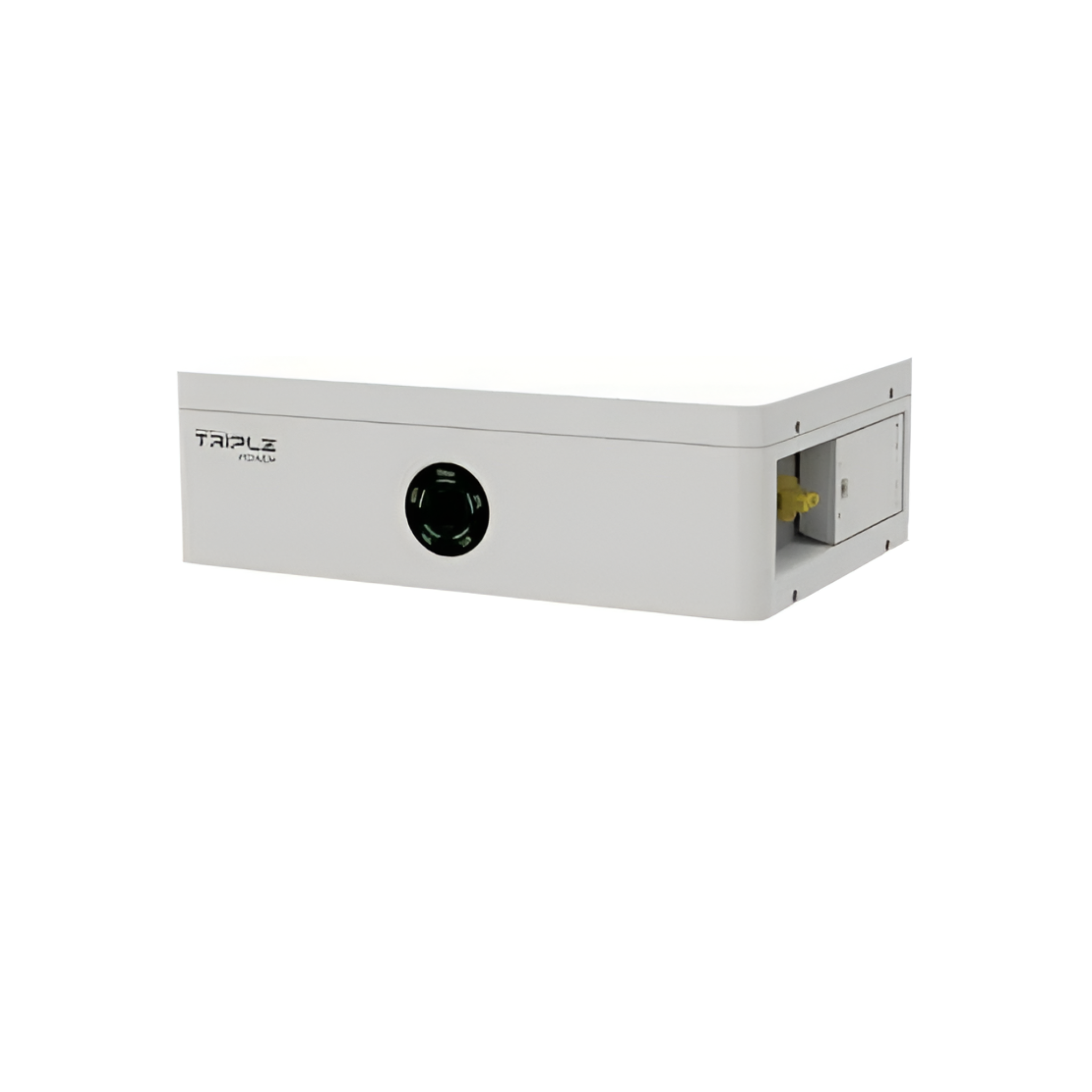

SolaX Triple Power BMU for TP-HS3.6 Battery System

The SolaX Triple Power BMU (Battery Management Unit) is an essential component for the TP-HS3.6 battery system, ensuring safe and efficient operation. It monitors and manages multiple battery modules, providing system stability, communication, and protection. Designed for both single-phase and three-phase setups, the BMU simplifies installation and guarantees optimal performance for your SolaX energy storage system.

Key Features

• Essential Safety & Control: Monitors battery voltage, temperature, and state of charge to protect against overcharging, deep discharge, and overheating.

• System Communication: Ensures seamless communication between battery modules and compatible SolaX inverters for efficient energy management.

• Compatibility: Works with TP-HS3.6 battery modules in both single-phase and three-phase systems.

• Flexibility: Supports systems of varying sizes; required for all TP-HS3.6 setups.

• Easy Installation: Pre-wired connections for quick plug-and-play integration into battery stacks.

Battery Limits (Important)

• Minimum Battery Requirements
  • Single Phase: 2x TP-HS Batteries
  • Three Phase: 4x TP-HS Batteries
• Maximum Battery Limit
  • Single Phase: 8x TP-HS Batteries
  • Three Phase: 13x TP-HS Batteries
  • X3-ULTRA: 26x TP-HS Batteries

Important Notes

• BMU is required for all TP-HS3.6 battery systems.

• For systems with 10 or more batteries (two stacks), a series box is also required.

• Please refer to the "1ph and 3ph differences" document in the "Tell Me More" section for guidance on larger setups.

• Ensure the BMU is correctly paired with compatible SolaX inverters:

  • X1 Hybrid G4 (2-8 batteries)

  • X3 Hybrid G4 (3-13 batteries)

  • X3 Hybrid G4 Pro (3-26 batteries)

  • X3 Ultra (3-26 batteries, up to 13 per battery port)

Specifications / Key Features

• Compatibility: TP-HS3.6 battery modules

• System Monitoring: Voltage, temperature, and state of charge

• Protection: Safeguards batteries and inverter from faults

• Installation: Pre-wired connections for easy setup

• Support: Enables remote diagnosis and updates via compatible inverter


• Scalable to 47+kWh Storage Capacity
• Easy Installation – Stackable battery modules & pre-wired cables
• Unique Heating Technology for enhanced performance in lower temperature
• IP65 Protection Level
• Soft Start Protection
• Remote fault diagnosis, upgrade and maintenance
• Compact Design
• 10-year Warranty
• Dimensions (LxWxH) – 510 x 365 x 157mm
• Weight – 10kg

Applications

• Residential and commercial energy storage management

• Monitoring and controlling multiple TP-HS3.6 battery modules

• Ensuring safe and efficient operation in single-phase or three-phase setups

What’s Included in the Box

• 1 x SolaX Triple Power BMU (Master and Base)

• Pre-wired connection cables

• Installation manual and safety instructions

Why Buy This Product

• Reliable Battery Management: Ensures safe, efficient, and stable operation of your battery system.

• Seamless Integration: Fully compatible with SolaX TP-HS3.6 batteries and hybrid inverters.

• Flexible & Scalable: Supports both small and large battery systems.

• Ease of Installation: Pre-wired for plug-and-play setup, saving time and effort.

• Remote Monitoring: Enables inverter-based updates and diagnosis for peace of mind.
