Description

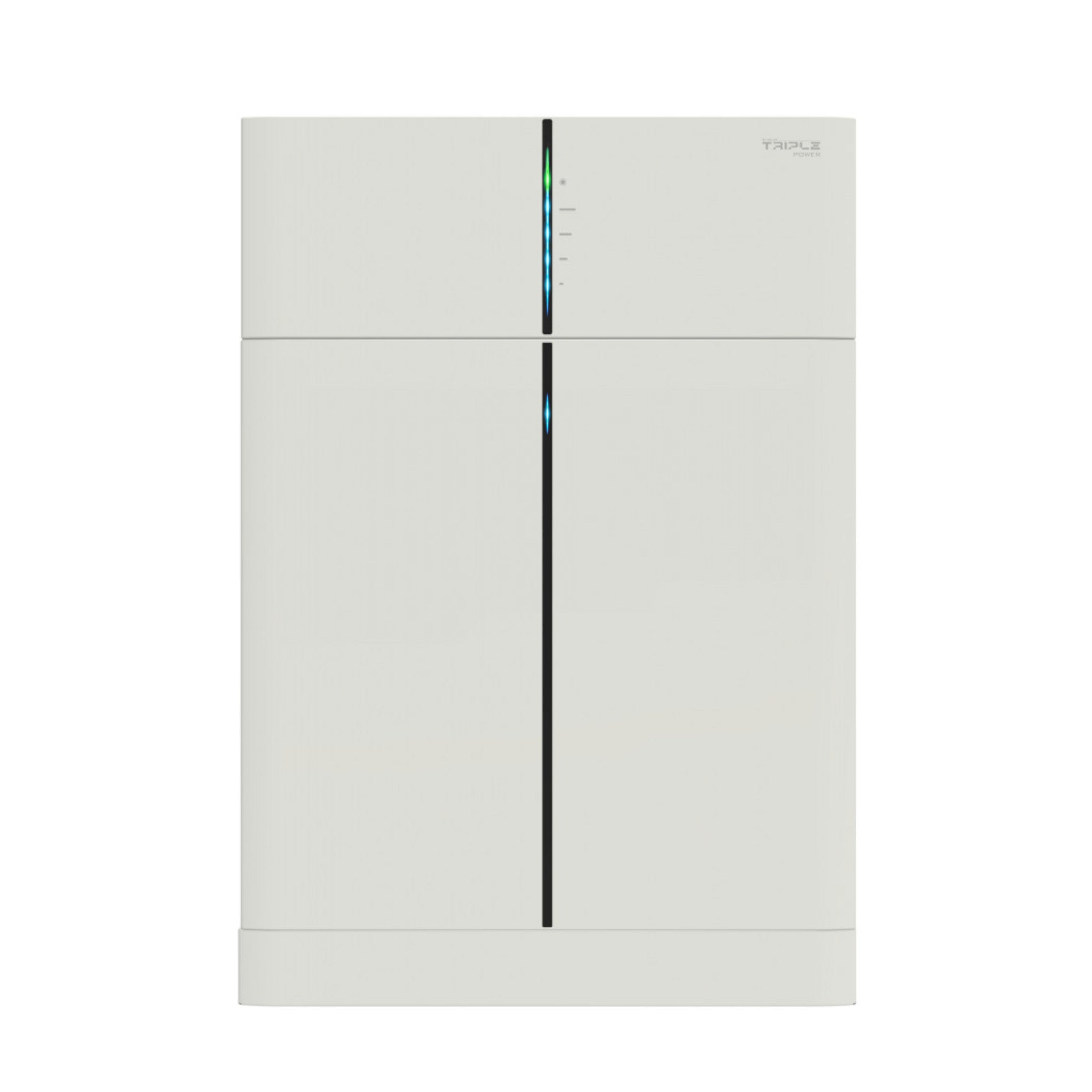

SolaX Triple Power 9.0kWh Battery Stack with BMS and Base Kit

The SolaX Triple Power 9.0kWh Battery Stack with BMS and Base Kit is a powerful and expandable energy storage solution designed for integration with SolaX X1 and X3 hybrid inverters. This complete kit includes 3× T30 Battery Modules (HV10230), 1× T30 Battery BMS (MC0600), and the official Triple Power X-ESS Base Kit, ensuring safe stacking and streamlined installation. With 9.2kWh of total nominal energy, high charge/discharge capacity, and long-lasting LiFePO₄ chemistry, this stack is ideal for high-demand residential and small commercial systems.

Key Features

• Complete system: 3× T30 Battery Modules + 1× T30 BMS + Base Kit

• Total nominal energy: 9.2kWh

• 90% depth of discharge for optimal usable capacity

• High continuous and peak power: up to 9200 W

• IP65-rated housing for flexible installation environments

• Smart thermal balancing and battery health management

• Over 6000 cycles of lifespan using safe LiFePO₄ lithium chemistry

• Includes base and cable kit for stable and secure vertical stacking

Specifications

• Product name: SolaX Triple Power 9.0kWh Battery Stack with BMS and Base Kit

• Nominal energy: 9200 Wh

• Nominal voltage: 307 V

• Depth of discharge (DoD): 90%

• Continuous discharge power: 9200 W

• Maximum discharge (5 minutes): 9200 W

• Surge discharge (15 seconds): 9200 W

• Maximum charge rate (5 minutes): 9200 W

• Battery type: Lithium-Ion (LiFePO₄, 30Ah)

• Total weight: 116 kg

• Protection rating: IP65

Applications

• Residential solar energy systems with high load demands

• Battery backup for mission-critical loads

• Projects requiring high power delivery and energy density

• SolaX hybrid installations with expandable storage

• Outdoor installations with IP65-rated protection

Why Choose This Product

• Turnkey battery bundle — includes modules, BMS, and base/cable kit

• High-performance storage with full 9200 W power delivery

• Safe, long-lasting LiFePO₄ technology

• Designed for fast installation and clean stacking

• Seamless integration with the SolaX hybrid inverter ecosystem

What's Included in the Box

• 3 × HV10230 T30 Battery Modules

• 1 × MC0600 T30 Battery BMS

• 1 × Triple Power X-ESS 3/4 Battery Base Kit (T-BAT-3-4-BASE-KIT)

• Cables, installation base, and user manual

This part is made up of the following items:

3 x HV10230    T30 Battery Module 3kW Battery
1 x MC0600    T30 Battery BMS
1 x T-BAT-3-4-BASE-KIT    Triple Power X-ESS 3 and 4 battery install kit - cable and base
