Description

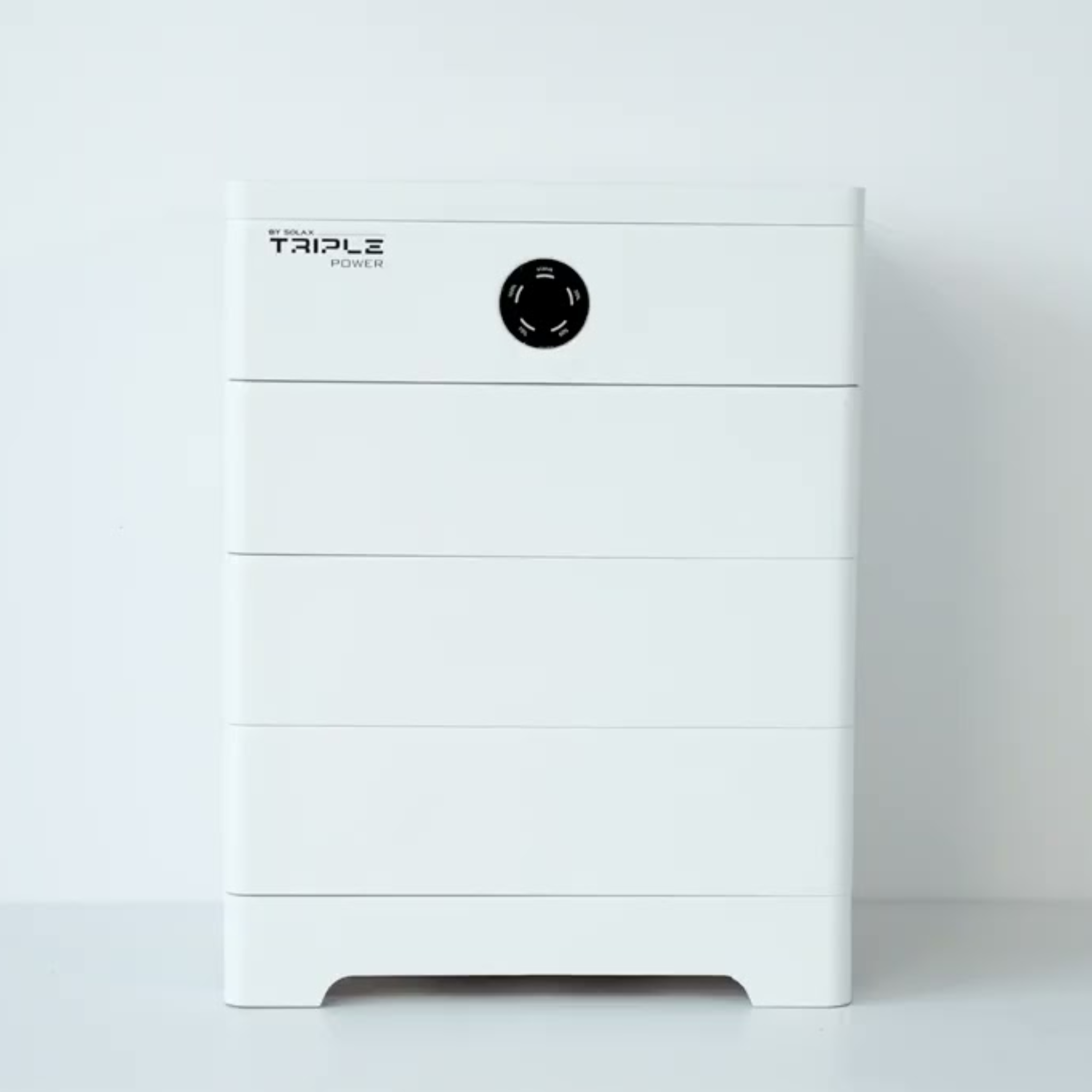

SolaX Triple Power 3.6kWh Li-ion Battery TP-HS36

The SolaX TP-HS36 is a high-performance 3.6kWh Li-ion battery designed for residential and commercial energy storage. Featuring advanced heating technology, IP65 protection, and a long cycle life, it ensures reliable power supply even in harsh weather conditions. Its modular design allows flexible capacity expansion from 7.3kWh to 47.9kWh, making it suitable for a wide range of energy needs.

Key Features

• High Performance: Supports up to 50A continuous charging and discharging. Equipped with unique heating technology for unrestricted operation in low temperatures.

• Safe and Reliable: Uses LFP battery cells, rated IP65 for both indoor and outdoor installations, and includes soft start protection to safeguard batteries and inverters. Cycle life exceeds 6000 cycles.

• Flexible Capacity: Modular design allows a wide capacity range from 7.3kWh to 47.9kWh (2-13 batteries), which can be extended during the battery’s lifetime.

• Easy Installation: Stackable modules with pre-wired communication cables make installation fast and simple for a single person. Supports remote diagnosis and updates via compatible inverters.

Important Notes

• A 3.6kWh SolaX battery, featuring a maximum 50A charging/discharging rate and IP65 protection.

• Unique heating technology enables unrestricted charging and discharging even in frigid weather conditions, ensuring continuous operation.

• Long cycle life of over 6000 cycles.

• Wide capacity range from 7.3kWh to 47.9kWh (2-13 batteries).

• Stackable modules and pre-wired cables make installation straightforward for a single installer.

• Soft start protection safeguards batteries and inverters.

• Remote diagnosis and updates via inverter for added peace of mind.

• BMU required for all systems.

• Series box required with 10 or more batteries (two stacks).

• Please refer to the "1ph and 3ph differences" document in the "Tell Me More" section for guidance on setups beyond 8 batteries.

Compatible Inverters

• X1 Hybrid G4 (2-8 batteries)

• X3 Hybrid G4 (3-13 batteries)

• X3 Hybrid G4 Pro (3-26 batteries)

• X3 Ultra (3-26 batteries, up to 13 per battery port)

Battery Limits (Important)

• Minimum Battery Requirements
  • Single Phase: 2x TP-HS36 Batteries
  • Three Phase: 4x TP-HS36 Batteries
• Maximum Battery Limit
  • Single Phase: 8x TP-HS36 Batteries
  • Three Phase: 13x TP-HS36 Batteries
  • X3-ULTRA: 26x TP-HS36 Batteries

Specifications

• Battery Capacity: 3.6kWh per module

• Charging/Discharging Rate: Maximum 50A

• Cycle Life: >6000 cycles

• Protection Rating: IP65

• Operating Temperature: Equipped with battery heating technology for low temperatures

• Installation: Stackable modules, pre-wired communication cables

• Capacity Range: 7.3-47.9kWh (2-13 batteries)

• Safety Features: Soft start protection, LFP battery cells

• Remote Management: Diagnosis and updates via compatible inverter

• Dimensions: 510mm x 365mm x 152mm
• Weight: 33.5kg
• Battery Type: Lithium Iron Phosphate (LFP)

Applications

• Residential and commercial energy storage

• Backup power during grid outages

• Load shifting and energy optimization

• Integration with solar PV systems

What's Included in the Box

• 1 x SolaX TP-HS36 3.6kWh Li-ion Battery Module

• Pre-wired communication cable

• Installation manual and safety instructions

Why Choose This Product

• High Energy Efficiency: Maximum 50A charging/discharging ensures efficient energy use.

• Stylish and Compact Design: Stackable modules save space while providing scalable storage.

• Robust Durability: IP65-rated enclosure and LFP cells ensure long-term reliability.

• Sustainability: Long cycle life reduces waste and supports greener energy storage.

• Easy Installation: Pre-wired cables and stackable design make setup fast and simple.
