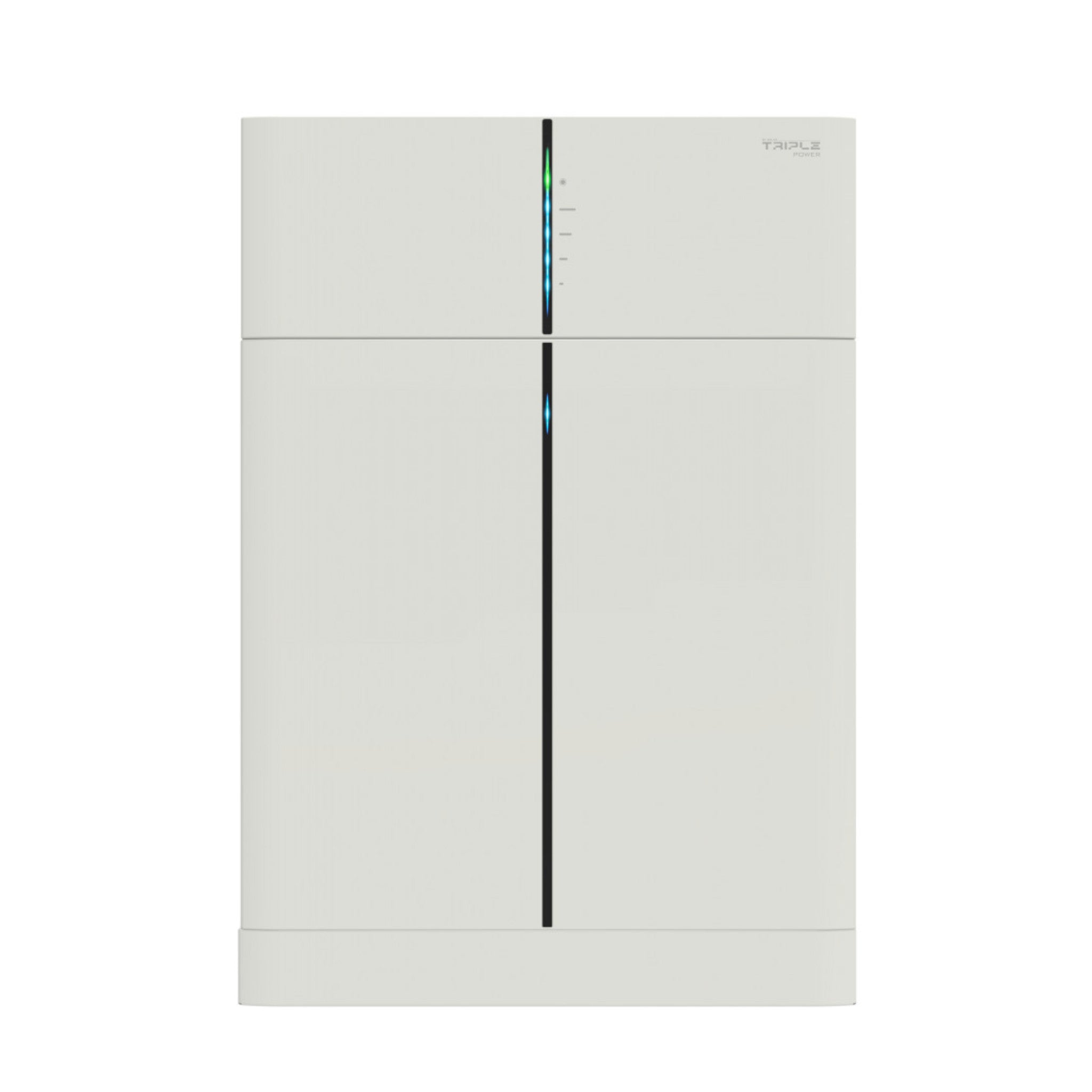

Solax T30 Battery Module

The Solax T30 Battery Module is a high-performance, 3kWh energy storage unit designed for compatibility with SolaX hybrid inverter systems. Utilizing safe and long-lasting LiFePO₄ lithium-ion technology, it offers up to 90% depth of discharge, over 6000 charge cycles, and operates in extreme temperature conditions. With smart temperature balancing and IP65 protection, it ensures stable, long-term performance in both indoor and outdoor installations.

Key Features

• Safe LiFePO₄ (lithium iron phosphate) battery chemistry

• 90% depth of discharge for maximum usable energy

• Over 6000 charge/discharge cycles for long-term durability

• IP65-rated enclosure for indoor or outdoor use

• Operating temperature range: -30°C to +50°C

• Smart temperature balancing for optimized performance

• Low self-consumption

• Compact and easy to install

Specifications

• Product name: Solax T30 Battery Module

• Supplier Part Number: Triple Power X-ESS 3kWh

• Battery type: Lithium-Ion (LiFePO₄, 30Ah cells)

• Nominal energy: 2500 Wh

• Depth of discharge: 90%

• Nominal voltage: 102 V

• Continuous discharge power: 3072 W

• Maximum discharge (5 min): 3072 W

• Peak discharge (15 sec): 3100 W

• Maximum charge rate (5 min): 3072 W

• Weight: 34.5 kg

• Protection rating: IP65

• Operating temperature: -30°C to +50°C

• Cycle life: >6000 cycles

Applications

• Home energy storage systems

• Solar backup and peak load management

• Compatible with SolaX X1 and X3 Hybrid inverters

• Indoor or protected outdoor battery storage

• Systems requiring stable and long-lasting lithium storage

Why Choose This Product

• Specifically designed for use with SolaX hybrid inverter systems

• Exceptional durability with over 6000 cycles

• Safe, environmentally friendly LiFePO₄ chemistry

• Maintains efficiency even in extreme climates

• Fast and easy to install with minimal maintenance

• Proven reliability backed by SolaX engineering

What's Included in the Box

• Solax T30 Battery Module

• Installation manual

• Connection cables and mounting accessories

Important Notice

This is only the battery module. The system will not function without a BMS (model MC0600), which must be purchased separately.

Battery BMS: MC0600 - One MC0600 can be connected to 1-4 HV10230 Triple Power 3.0 Battery modules
