Description

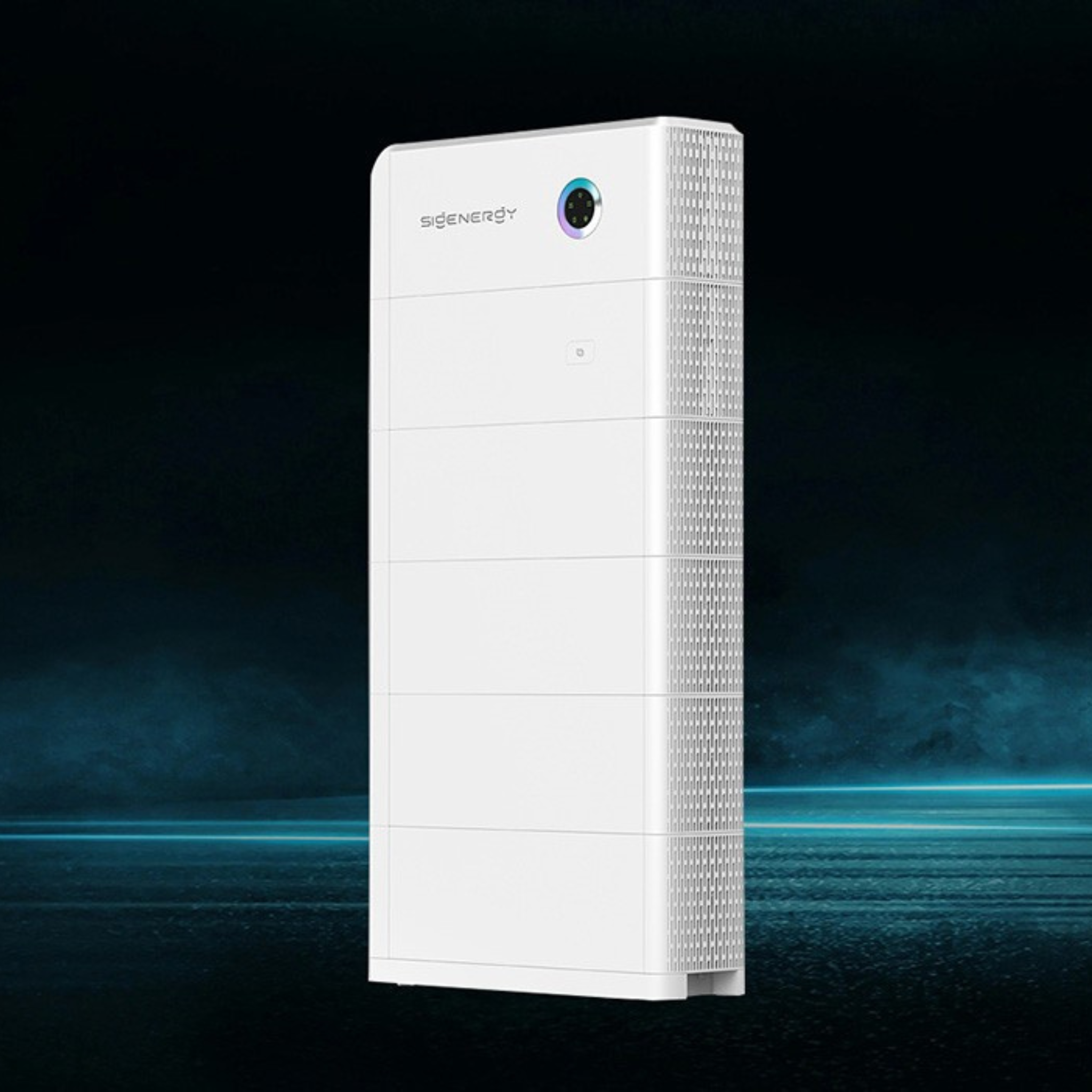

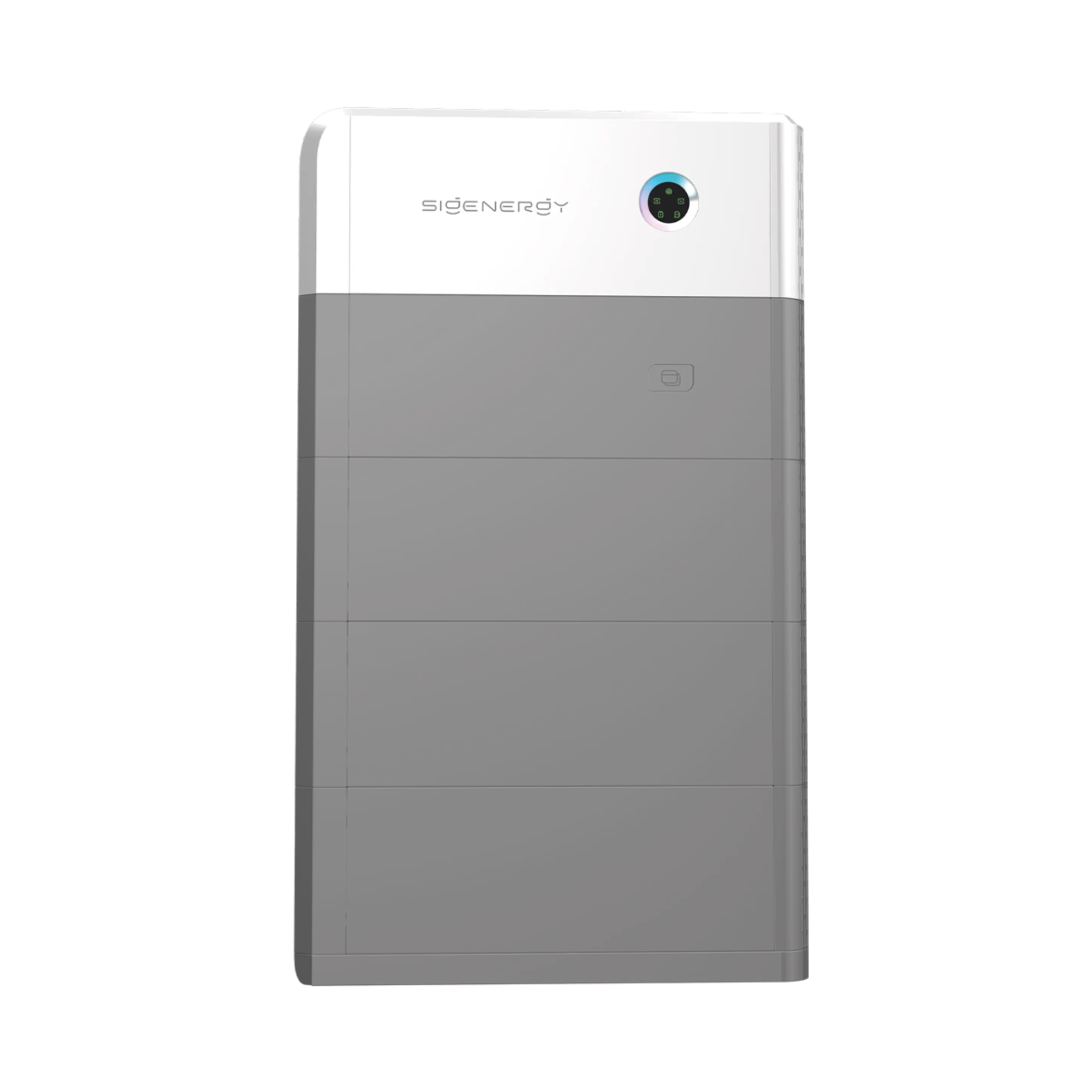

Sigenergy SigenStor Energy Controller 10.0kW Three Phase Hybrid Inverter

Sigenergy is leading a new way of producing, storing, transferring, and consuming home energy. They provide a genuine all-in-one solar energy storage system through SigenStor. Its unique 5-in-One modular design integrates a Solar Inverter, EV DC Charger, Battery PCS, Battery Pack, and EMS into one intelligent home energy system. Simple, robust, and versatile, it is an ideal solution for modern three phase residential energy systems.

Key Features

• 5.0 to 25.0 kW three phase hybrid inverter platform

• Integrated EMS for precise energy monitoring and control

• DC ground-fault protection for enhanced system safety

• Multi-source black start capability

• Full on-grid and off-grid compatibility

• DC/AC ratio up to 2 for flexible PV oversizing

• IP66 system protection rating for indoor and outdoor installations

• Integrated DC isolator

• MC4 DC connectors supplied

• Supports modular Sigenergy battery expansion

Specifications

• Supplier Part No: SigenStor EC 10.0 TP

• Weight: 36 kg

• Rated Power: 10,000 W

• Min MPPT Voltage: 160 V

• Max MPPT Voltage: 1,000 V

• DC Startup Voltage: 180 V

• DC Shutdown Voltage: 1,100 V

• Max Input Voltage: 1,100 V

• Max DC Power: 16,000 W

• Max AC Power (5 Minutes): 10,000 W

• Surge AC Power (1 Second): 11,000 W

• Max DC Current: 48 A

• Max DC Inputs: 3

• Has DC Fuses: No

• Connector: MC4

• Included Connectors: 6

• Euro Efficiency: 97.5%

• Transformer: None

• MPPT Quantity: 3

• Has Integrated DC Switch: Yes

• Warranty: 10 years

Battery Compatibility

• Compatible with Sigenergy SigenStor modular battery packs

• Supports stackable battery modules, allowing scalable energy storage

• Battery capacity can be expanded from single-module installations up to large multi-battery systems, depending on site design and EMS configuration

• Designed for high-voltage battery operation for improved efficiency and reduced losses

Applications

• Residential three phase solar PV installations

• Home battery storage systems

• Self-consumption optimisation

• Backup and resilience power solutions

• Smart home energy management

What’s Included in the Box

• Sigenergy SigenStor 10.0kW Three Phase Hybrid Inverter

• MC4 connectors

• Installation and user manuals

Why Buy This Product

• High Energy Efficiency: 97.5% Euro efficiency for excellent conversion performance and reduced energy losses

• All-in-One Intelligence: Built-in EMS enables accurate monitoring, control, and future-ready energy management

• Scalable Storage: Modular battery connectivity allows systems to grow as energy needs increase

• Robust Durability: IP66-rated enclosure suitable for long-term indoor and outdoor operation

• Long Warranty: 10-year manufacturer warranty for peace of mind and reliability

Disclaimer

All product information provided by Solareon UK is intended for general guidance only and may be subject to change or error. Solareon UK does not accept liability for any inaccuracies or omissions in the product specifications displayed. For accurate and detailed technical information, please refer to the manufacturer’s official datasheet available in the 'Downloads' section. We strongly advise confirming all critical details directly with the manufacturer prior to making purchasing or installation decisions.
