Description

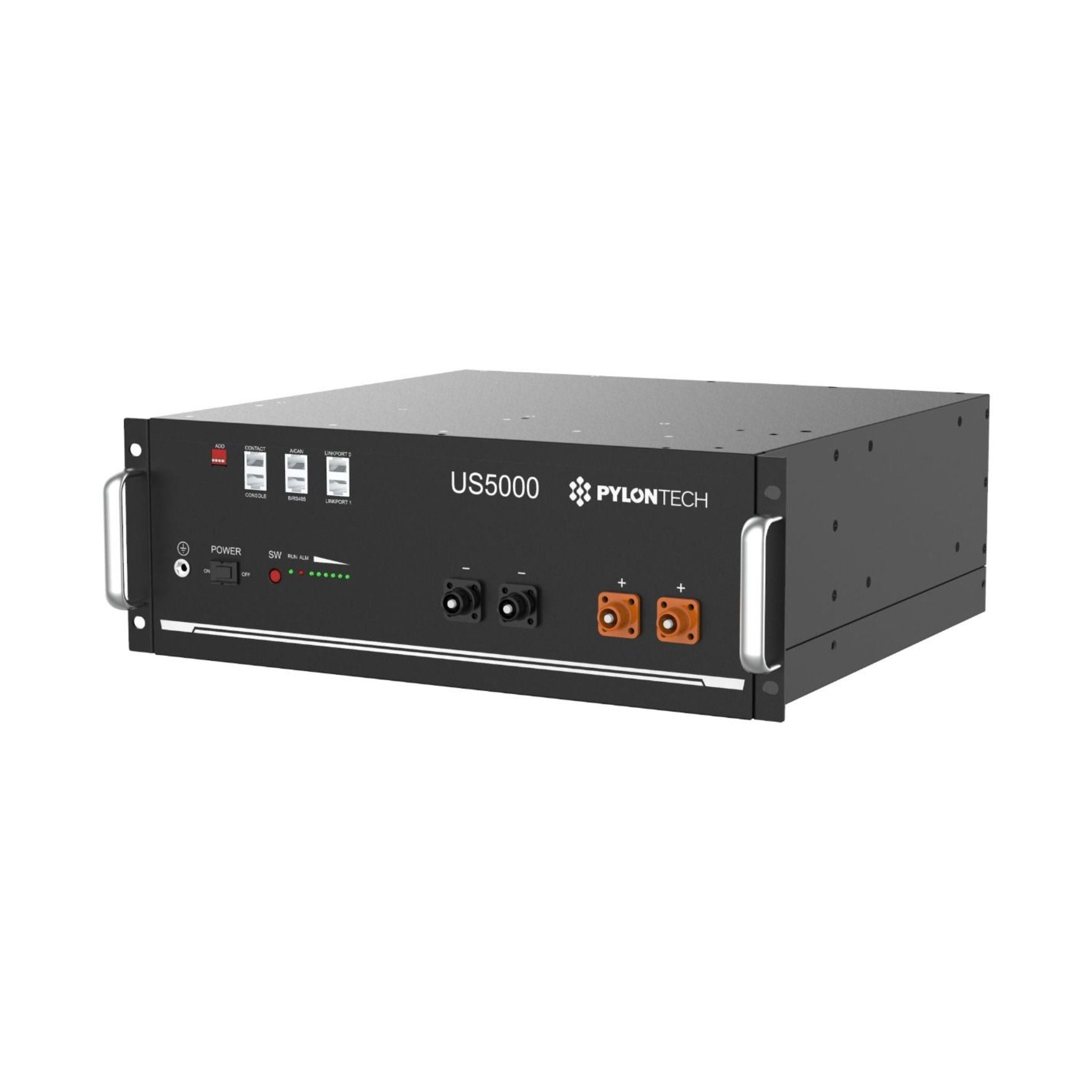

Reliable and Scalable Energy Storage with the Pylontech US5000 4.8kWh Li-Ion Solar Battery

The Pylontech US5000 4.8kWh Li-Ion Solar Battery 48V is an advanced energy storage solution designed for residential and commercial solar power systems. Built with high-performance lithium iron phosphate (LiFePO4) technology, the US5000 offers exceptional safety, durability, and scalability, making it a perfect choice for those seeking reliable energy storage with long-term performance.

Key Features

• High Energy Capacity: Delivers 4.8kWh of usable energy, ideal for backup power or daily energy needs.
• Extended Cycle Life: Provides over 6000 cycles at 80% Depth of Discharge (DoD), ensuring years of reliable performance.
• Efficient Design: Boasts over 95% round-trip efficiency for optimal energy usage.

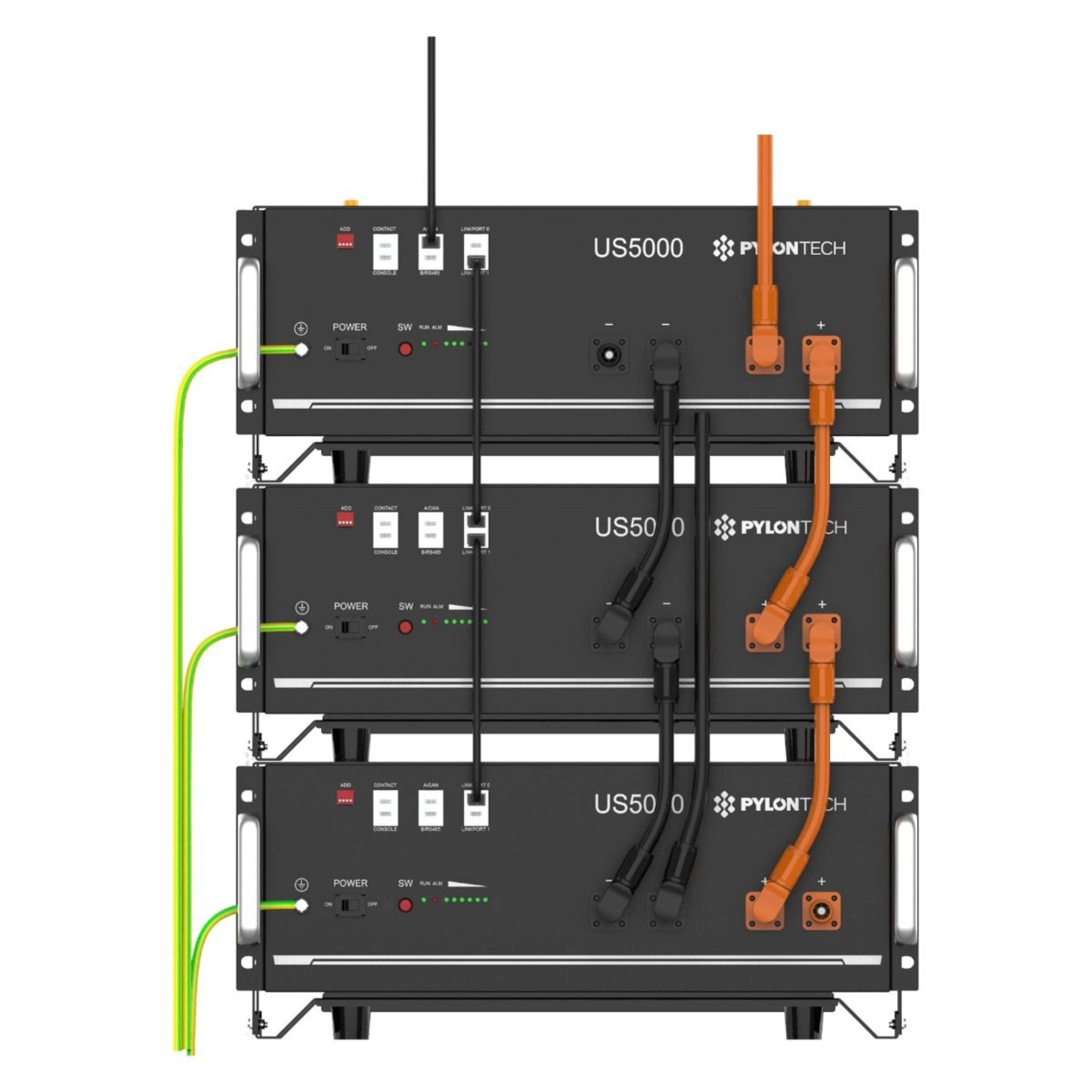

• Scalability: Supports up to 16 units in parallel, allowing easy capacity expansion to meet growing energy demands.
• Advanced Battery Management System (BMS): Built-in BMS ensures protection against overcharging, over-discharging, overheating, and short circuits.
• Wide Compatibility: Compatible with most leading hybrid inverters for seamless system integration.
• Compact and Durable: Lightweight and robust design suitable for various installation environments.
• Enhanced Safety: Utilizes LiFePO4 chemistry, offering superior thermal stability and safety compared to other battery types.

What’s Included in the Box

• 1 x Pylontech US5000 4.8kWh Battery Module
• 1 x Communication Cable Set
• 1 x User Manual
• 1 x Set of Mounting Accessories
• 1 x Warranty Card

Technical Specifications

• Battery Type: Lithium Iron Phosphate (LiFePO4)
• Nominal Voltage: 48V
• Nominal Capacity: 4.8kWh
• Usable Capacity: 4.56kWh
• Cycle Life: Over 6000 cycles at 80% DoD
• Efficiency: Greater than 95% round-trip efficiency
• Weight: 40.4kg
• Dimensions: 442mm x 420mm x 161mm (17.4" x 16.5" x 6.3")
• Discharge Voltage Range: 45V – 54V
• Charging Voltage Range: 52.5V – 54V
• Maximum Discharge Current: 100A
• Maximum Charge Current: 100A
• Communication Interface: RS485, CAN
• Scalability: Up to 16 units in parallel
• Operating Temperature:
• Charge: 0°C to 50°C (32°F to 122°F)
• Discharge: -10°C to 50°C (14°F to 122°F)
• Storage Temperature: -20°C to 60°C (-4°F to 140°F)
• Certifications: UN38.3, IEC62619, CE, TÜV
• Warranty: 10 years
• Part No: PYLON-US5000-1C

The Pylontech US5000 4.8kWh Li-Ion Solar Battery 48V combines outstanding performance, safety, and scalability, making it an ideal energy storage solution for solar systems. Whether for residential or commercial use, this battery ensures efficient energy management and reliable backup power.

A newer and improved version of the US5000 battery from Pylontech, the US5000-1C is a 48V battery packed with advanced features that deliver a competitive advantage in the market. Choose the Pylontech US5000 for unmatched energy independence and peace of mind!
