Description

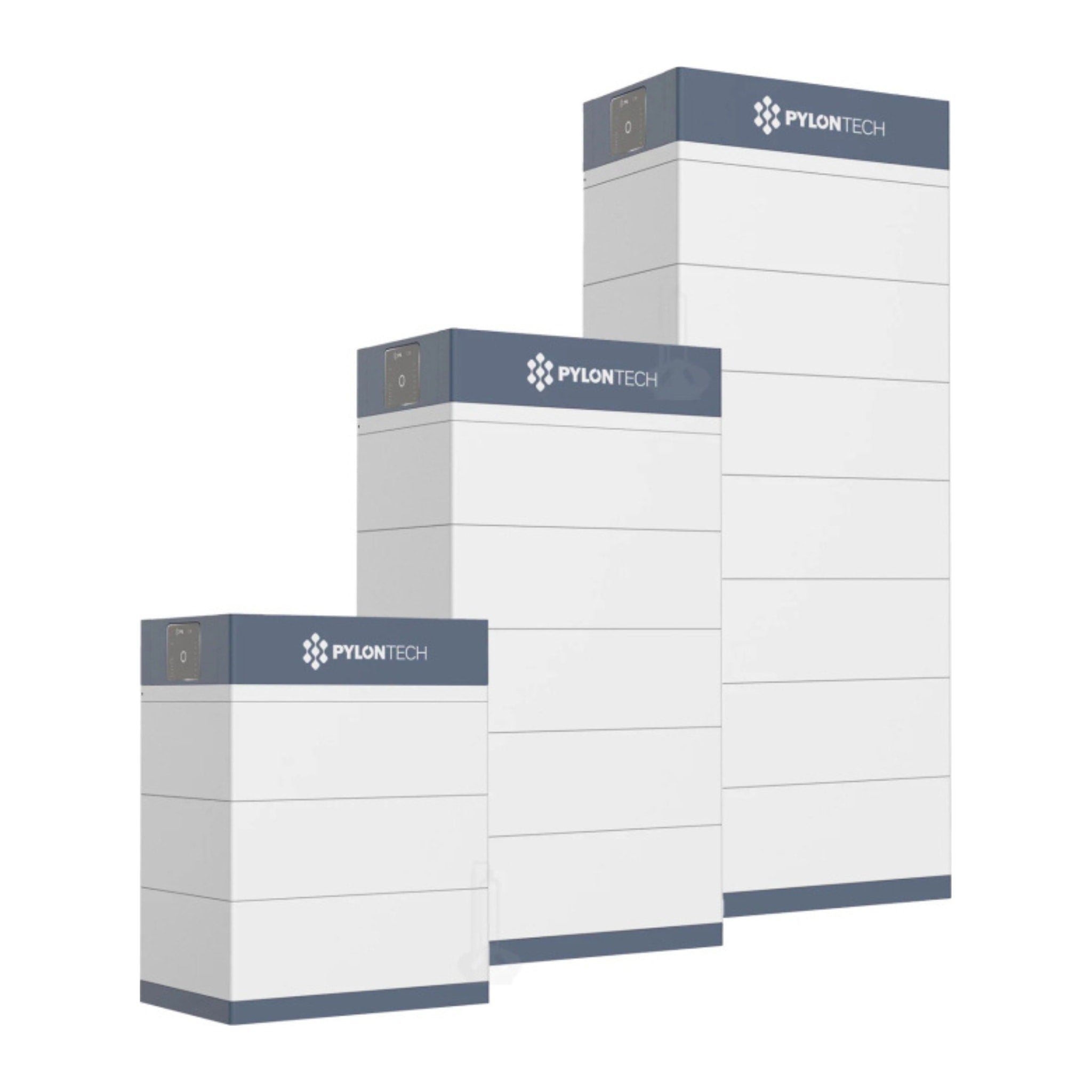

Pylontech Force-H3 High Voltage Battery System (35.8 kWh)

Expand your solar energy storage with the Pylontech Force-H3, a high-voltage battery system designed for robust and efficient power management. This stack of 7 modules, integrated with a Battery Management Unit (BMU), offers a substantial 35.8 kWh of energy capacity.

Key Features

• High Energy Capacity: 35.8 kWh provides ample storage for residential and commercial energy needs, supporting longer periods of backup power and self-consumption.
• Advanced Battery Management: The integrated BMU ensures optimal performance, safety, and longevity of the battery modules through precise monitoring and control.
• High Voltage System: Operates at a high voltage (716V) for efficient power transmission and compatibility with compatible high-voltage inverters.
• Deep Discharge Capability: With a 95% Depth of Discharge, you can utilize almost the entire stored energy, maximising the value of your investment.
• Scalable and Modular: Designed to be stacked, allowing for future expansion of your energy storage capacity as your needs evolve.

Specifications

• Type of Product: Battery Module
• Dimensions: 1380 x 540 x 350 mm
• Battery Type: Lithium Ion
• Nominal Energy: 35840 Wh
• Voltage: 716 V
• Depth of Discharge: 95.00 %
• Continuous Discharge Rate (Normal Use): 35840 W
• Maximum Discharge Rate (5 Minutes): 35840 W
• Surge Discharge Rate (15 Seconds): 39424 W
• Maximum Charge Rate (5 Minutes): 35840 W
• Weight: 314.2 kg

Applications

This high-voltage battery system is ideal for grid-tied solar installations seeking to maximise self-consumption, provide reliable backup power during outages, or facilitate off-grid living. It is particularly suited for larger residential and small commercial applications where significant energy storage is required. Please note: This system is not suitable for Solis 3ph hybrid inverters smaller than 12 kW due to its high system voltage (over 600 V).

What's Included in the Box

• Pylontech Force-H3 Battery Modules (Stack of 7)
• Battery Management Unit (BMU)

Why Buy This Product

• High Energy Efficiency: Utilises advanced Lithium Ion technology for reliable energy storage and discharge, ensuring efficient power delivery when you need it.
• Stylish Design: While focusing on performance, the modular design allows for a clean and organised installation.
• Robust Durability: Built with high-quality components to withstand demanding operational conditions, ensuring a long service life.
• Sustainability: Reduces reliance on grid power, contributing to a lower carbon footprint and potential long-term energy cost savings.
• Long Warranty: Backed by Pylontech's comprehensive warranty, offering peace of mind and assurance of product reliability.

Pylontech is a leading provider of energy storage solutions, committed to delivering safe, reliable, and high-performance battery systems for a sustainable future.

Documents

• Data Sheet: Data Sheet Pylontech Force H3 - EN
• Installation Guide / User Manual: Installation Manual Pylontech Force H3
• Installation Guide / User Manual: User Manual Pylontech Force H3 - DE
• Installation Guide / User Manual: User Manual Pylontech Force H3 PL (Polish)
• Warranty: Warranty Pylontech Force Series H1/H2/H3 EN
• Product Compatibility Pylontech ESS and Inverters - EN: Product Compatibility Pylontech ESS and Inverters - EN
• Product Compatibility Pylontech Force H3 (11/09/24): Product Compatibility Pylontech Force H3 (11/09/24)
