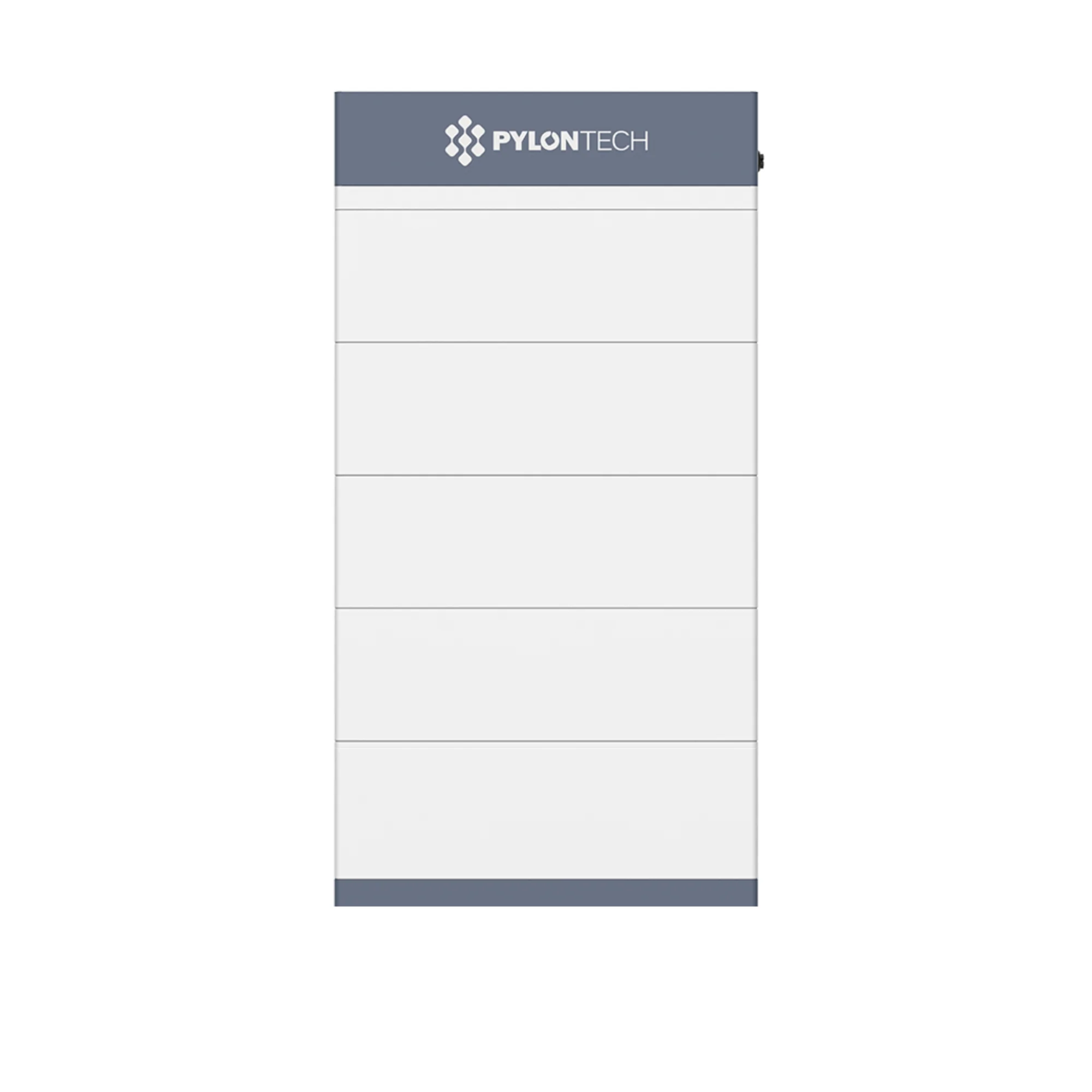

Pylontech Pylon Force-H3 High Voltage Battery System (25.6 kWh)

Expand your energy storage capacity with the Pylontech Force-H3 High Voltage System, a modular and scalable solution designed for robust energy management.

Key Features

• High Capacity: Offers a substantial 25.6 kWh of energy storage, suitable for demanding residential or commercial applications.
• High Voltage Operation: Designed for high voltage systems, ensuring efficient power delivery and compatibility with compatible inverters.

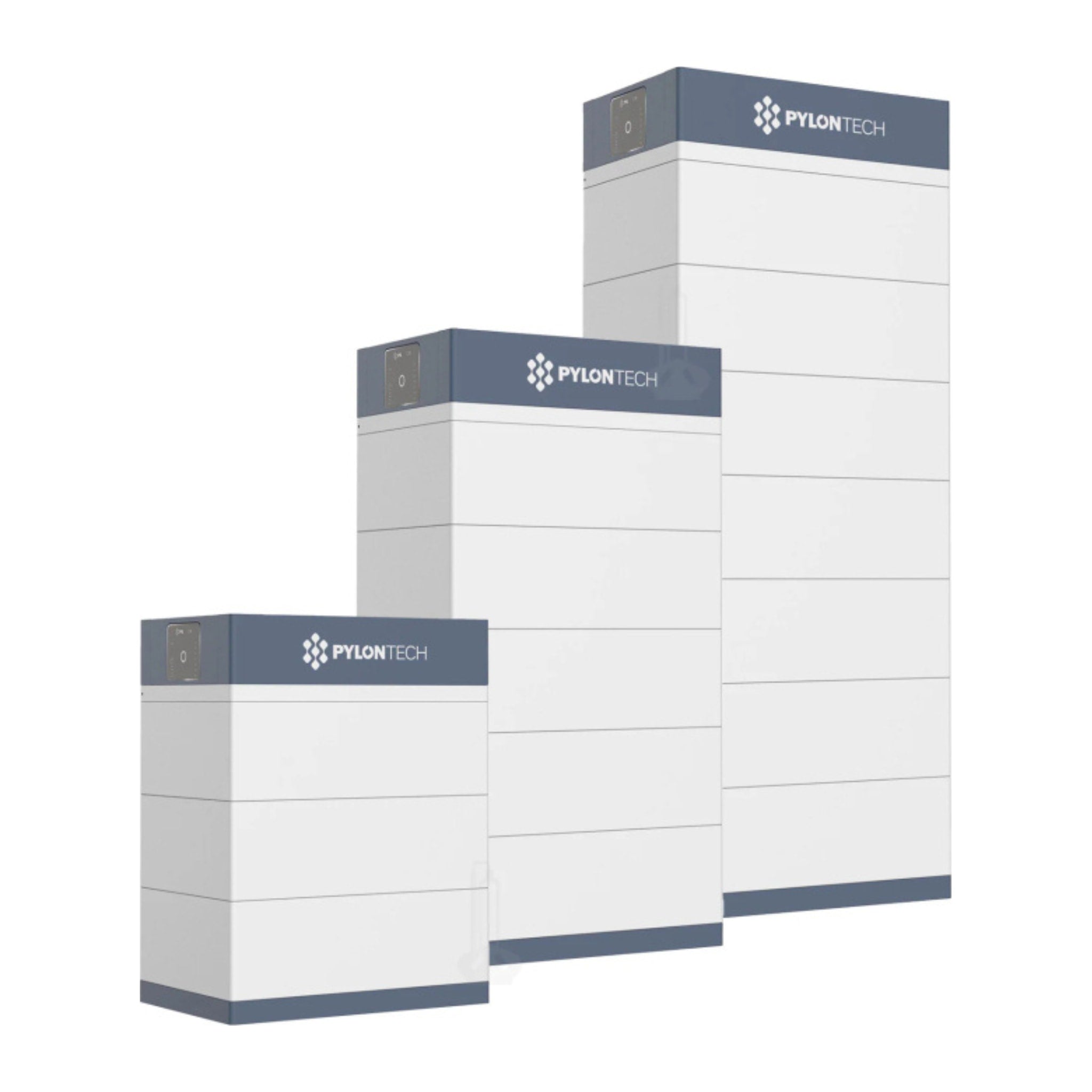

• Modular Stacking: Easily stackable units allow for system expansion as your energy needs grow.
• Deep Discharge Capability: With a 95% Depth of Discharge, maximize the usable energy from your battery system.
• Advanced Battery Management: Includes an integrated BMU (Battery Management Unit) for optimal performance and safety.

Specifications

• Type of Product: Battery Module
• Dimensions: 1040 x 540 x 350 mm
• Battery Type: Lithium Ion
• Nominal Energy: 25600 Wh
• Voltage: 512 V
• Depth of Discharge: 95.00 %
• Continuous Discharge Rate (Normal Use): 25600 W
• Maximum Discharge Rate (5 Minutes): 25600 W
• Surge Discharge Rate (15 Seconds): 28160 W
• Maximum Charge Rate (5 Minutes): 25600 W
• Weight: 230.2 kg

Applications

This high-voltage battery system is ideal for large residential homes requiring significant backup power, commercial installations needing to manage peak loads or self-consumption, and off-grid systems demanding reliable and substantial energy storage.

What's Included in the Box

• Pylontech Force-H3 Battery Module (Stack of 5)
• BMU (Battery Management Unit)

Why Buy This Product

• High Energy Efficiency: Maximise your stored solar energy with a 95% Depth of Discharge, ensuring more power is available when you need it.
• Scalable Solution: Start with 25.6 kWh and expand your system by adding more modules as your energy demands increase.
• Robust Durability: Built with high-quality Lithium Ion cells for long-lasting performance and reliability.
• Sustainability: Invest in a cleaner energy future, reduce reliance on the grid, and lower your carbon footprint.
• Long Warranty: Backed by Pylontech's comprehensive warranty for peace of mind and long-term investment security.

The Pylontech Force-H3 series represents Pylontech's commitment to providing reliable, high-capacity energy storage solutions for modern power needs.

Documents

• Data Sheet: Data Sheet Pylontech Force H3 - EN
• Installation Guide / User Manual: Installation Manual Pylontech Force H3
• Installation Guide / User Manual: User Manual Pylontech Force H3 - DE
• Installation Guide / User Manual: User Manual Pylontech Force H3 PL (Polish)
• Warranty: Warranty Pylontech Force Series H1/H2/H3 EN
• Product Compatibility Pylontech ESS and Inverters - EN: Product Compatibility Pylontech ESS and Inverters - EN
• Product Compatibility Pylontech Force H3 (11/09/24): Product Compatibility Pylontech Force H3 (11/09/24)
