Description

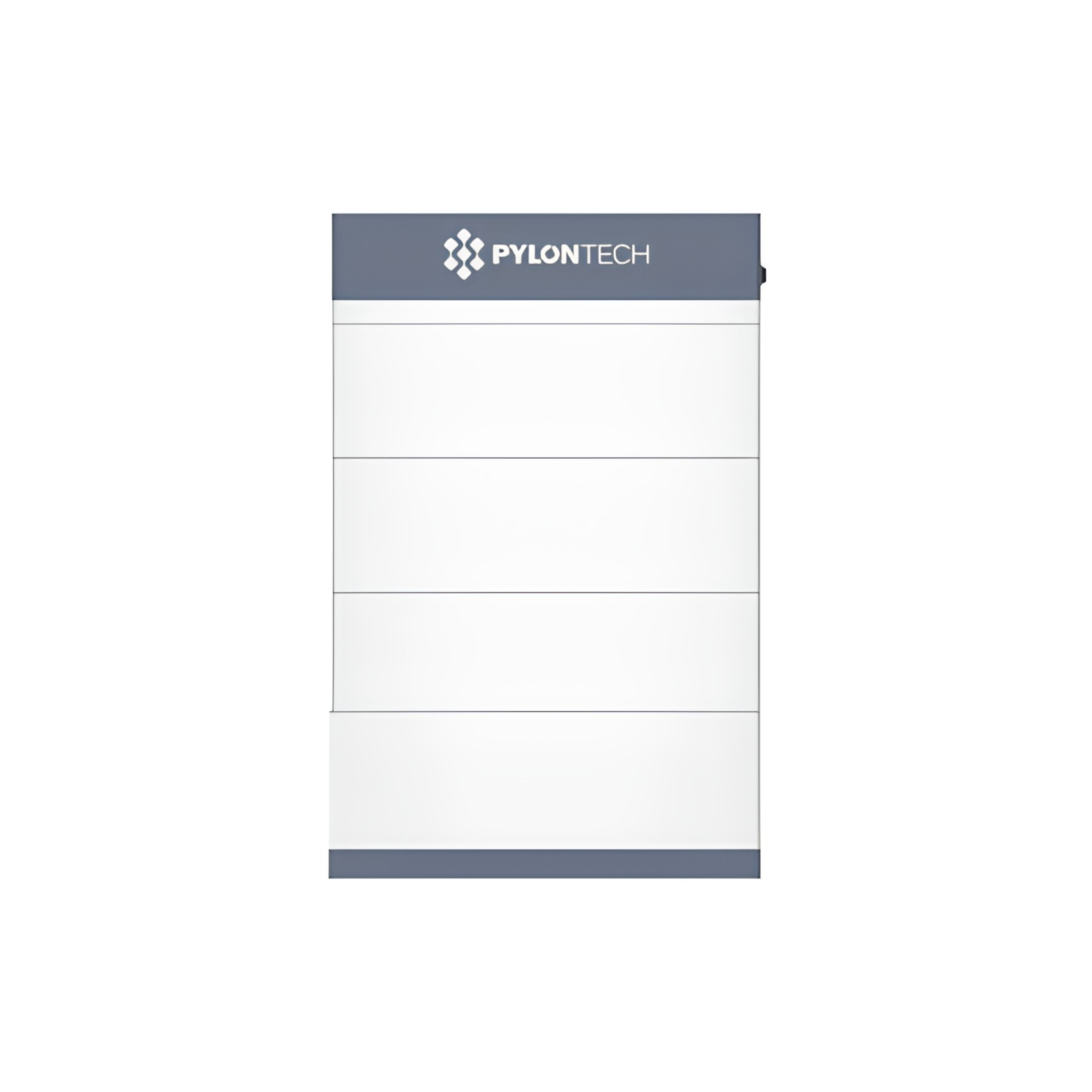

Pylontech Force-H3 High Voltage Battery System (20.5 kWh)

Expand your energy storage capabilities with this Pylontech Force-H3 High Voltage Battery System, a powerful and scalable solution designed for modern homes and businesses seeking reliable backup and optimized energy usage.

Key Features

• Scalable Capacity: This system, a stack of 4 modules with a BMU, offers a substantial 20.5 kWh nominal energy storage, expandable for future needs.
• High Voltage Architecture: Operates at a high voltage (409V) for efficient energy transfer and compatibility with compatible inverters.
• Deep Discharge Capability: With a 95% Depth of Discharge, maximize the usable energy from your battery system.
• Robust Performance: Delivers consistent power with a continuous discharge rate of 20480W and a surge rate of 22528W for 15 seconds.
• Integrated Battery Management: The included BMU ensures optimal performance, safety, and longevity of the battery modules.

Specifications

• Type of Product: Battery Module
• Dimensions: 870 x 540 x 350 mm
• Weight: 188.2 kg
• Battery Type: Lithium Ion
• Nominal Energy: 20480 Wh
• Depth of Discharge: 95.00 %
• Voltage: 409 V
• Continuous Discharge Rate (Normal Use): 20480 W
• Maximum Discharge Rate (5 Minutes): 20480 W
• Surge Discharge Rate (15 Seconds): 22528 W
• Maximum Charge Rate (5 Minutes): 20480 W

Applications

Ideal for residential and commercial applications requiring significant backup power, grid-tied energy management, and off-grid living solutions. The Force-H3 system is designed to work seamlessly with compatible hybrid inverters to store solar energy for later use, reduce reliance on the grid, and provide critical power during outages.

What's Included in the Box

• Pylontech Force-H3 Battery System (Stack of 4 Modules)
• Battery Management Unit (BMU)

Why Buy This Product

• High Energy Efficiency: Utilizes Lithium Iron Phosphate (LFP) technology for excellent energy density and a long cycle life, ensuring efficient power storage and delivery.
• Stylish Design: Features a modular and compact design that allows for flexible installation, fitting discreetly into various environments.
• Robust Durability: Built with high-quality components and advanced safety features to withstand demanding operational conditions.
• Sustainability: Contributes to a greener future by enabling efficient use of renewable energy and reducing carbon footprint.
• Long Warranty: Backed by a comprehensive warranty for peace of mind and long-term reliability.

Pylontech is a globally recognized leader in energy storage solutions, renowned for its innovative technology and commitment to quality. The Force-H3 series represents their dedication to providing robust and scalable battery systems for diverse energy needs.

Documents

• Data Sheet: Data Sheet Pylontech Force H3 - EN
• Installation Guide / User Manual: Installation Manual Pylontech Force H3
• Installation Guide / User Manual: User Manual Pylontech Force H3 - DE
• Installation Guide / User Manual: User Manual Pylontech Force H3 PL (Polish)
• Warranty: Warranty Pylontech Force Series H1/H2/H3 EN
• Product Compatibility Pylontech ESS and Inverters - EN: Product Compatibility Pylontech ESS and Inverters - EN
• Product Compatibility Pylontech Force H3 (11/09/24): Product Compatibility Pylontech Force H3 (11/09/24)

Disclaimer

All product information provided by Solareon UK is intended for general guidance only and may be subject to change or error. Solareon UK does not accept liability for any inaccuracies or omissions in the product specifications displayed. For accurate and detailed technical information, please refer to the manufacturer's official datasheet available in the 'Downloads' section. We strongly advise confirming all critical details directly with the manufacturer prior to making purchasing or installation decisions.
