Description

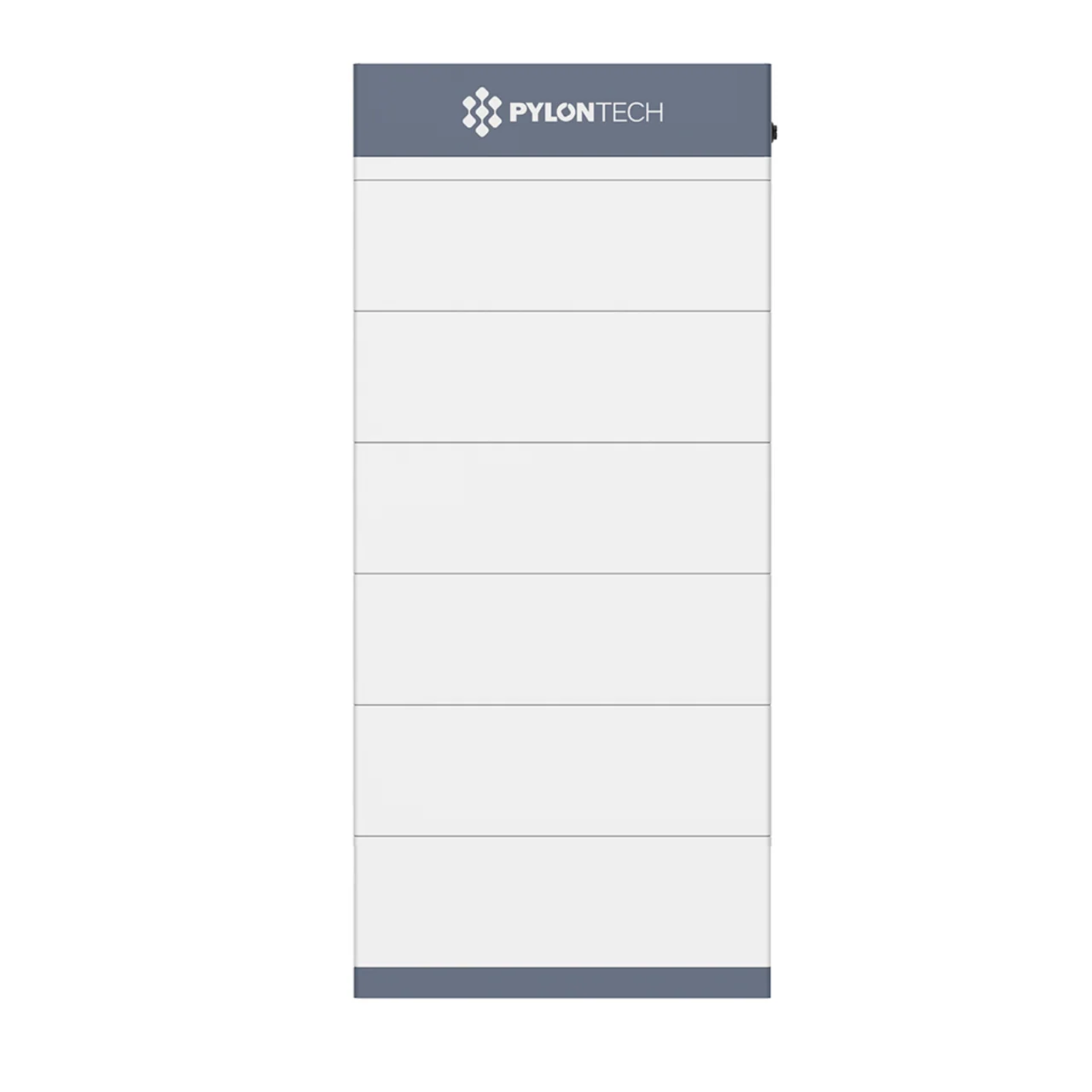

Pylontech Force-H3 High Voltage Battery System Stack (30.7 kWh)

Expand your energy storage with the Pylontech Force-H3 High Voltage Battery System, a powerful and scalable solution designed for modern energy needs.

Key Features

• High Capacity: Offers a substantial 30.7 kWh of nominal energy storage for extended power backup and usage.

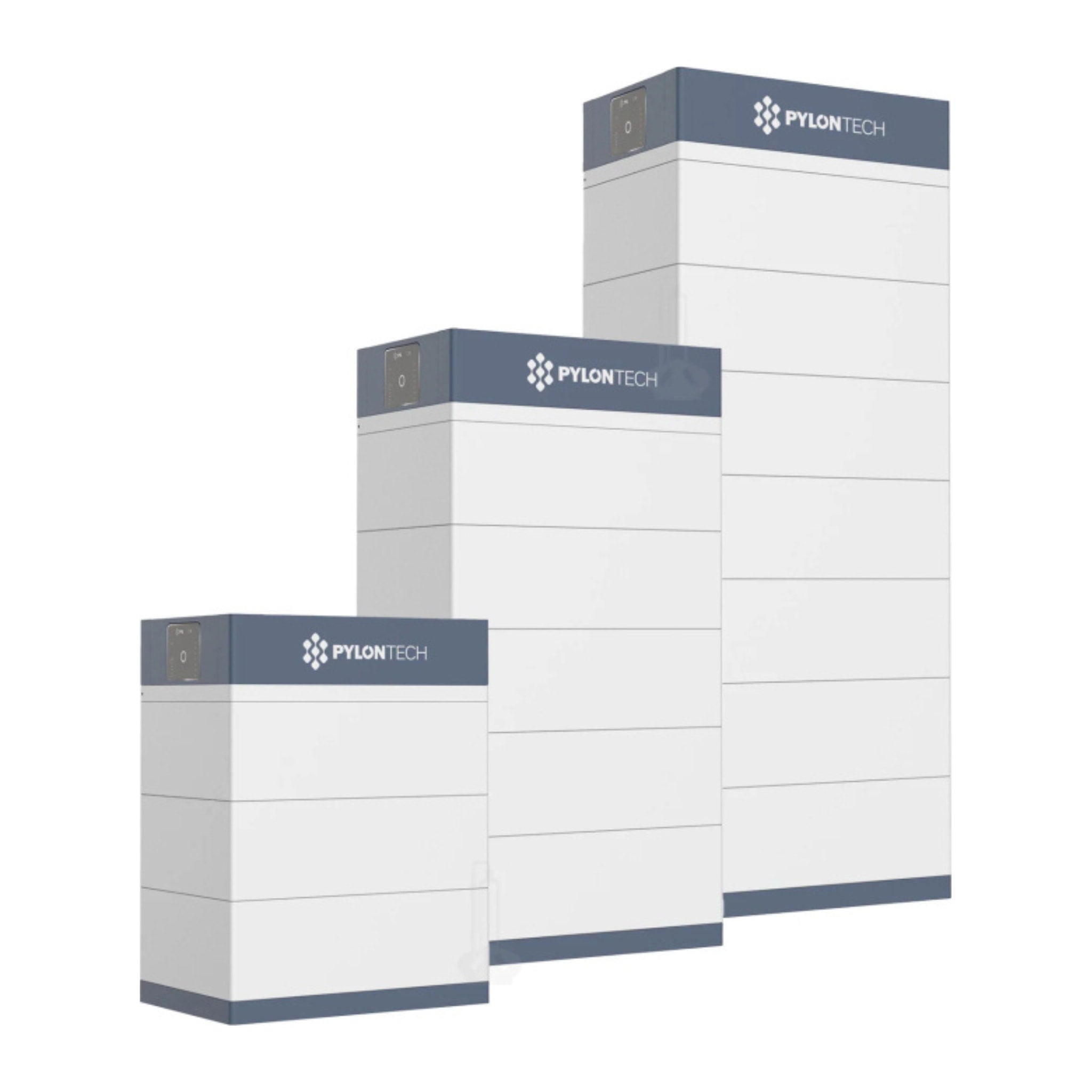

• Scalability: This stackable system allows for future expansion to meet growing energy demands.
• Advanced Lithium-Ion Technology: Utilizes reliable Lithium Iron Phosphate (LFP) chemistry for safety and longevity.
• Deep Discharge Capability: With a 95% Depth of Discharge, maximise the usable energy from your system.
• High Power Output: Capable of delivering significant continuous and surge power to handle demanding loads.

Specifications

• Type of Product: Battery Module
• Dimensions: 1210 x 540 x 350 mm
• Weight: 272.2 kg
• Battery Type: Lithium Ion
• Nominal Energy: 30720 Wh
• Depth of Discharge: 95.00 %
• Voltage: 614 V
• Continuous Discharge Rate (Normal Use): 30720 W
• Maximum Discharge Rate (5 Minutes): 30720 W
• Surge Discharge Rate (15 Seconds): 33792 W
• Maximum Charge Rate (5 Minutes): 30720 W

Applications

Ideal for residential and commercial installations requiring significant energy storage for backup power, self-consumption optimisation, and off-grid applications. This high-voltage system is particularly suited for larger homes or businesses with substantial energy demands.

What's Included in the Box

• Pylontech Force-H3 Battery Stack (6 modules + BMU)

Why Buy This Product

• High Energy Efficiency: Maximise your solar energy utilisation and reduce reliance on the grid with efficient storage capabilities.
• Stylish Design: Sleek and modular design that integrates seamlessly into various installation environments.
• Robust Durability: Built with high-quality components for long-term performance and reliability in diverse conditions.
• Sustainability: Invest in a greener future by storing and utilising renewable energy more effectively, reducing carbon footprint.
• Long Warranty: Backed by Pylontech's comprehensive warranty for peace of mind and investment protection.

The Pylontech Force-H3 represents a significant advancement in high-voltage battery storage, offering exceptional capacity and reliability for demanding energy solutions.

Documents

• Data Sheet: Data Sheet Pylontech Force H3 - EN
• Installation Guide / User Manual: Installation Manual Pylontech Force H3
• Installation Guide / User Manual: User Manual Pylontech Force H3 - DE
• Installation Guide / User Manual: User Manual Pylontech Force H3 PL (Polish)
• Warranty: Warranty Pylontech Force Series H1/H2/H3 EN
• Product Compatibility Pylontech ESS and Inverters - EN: Product Compatibility Pylontech ESS and Inverters - EN
• Product Compatibility Pylontech Force H3 (11/09/24): Product Compatibility Pylontech Force H3 (11/09/24)
