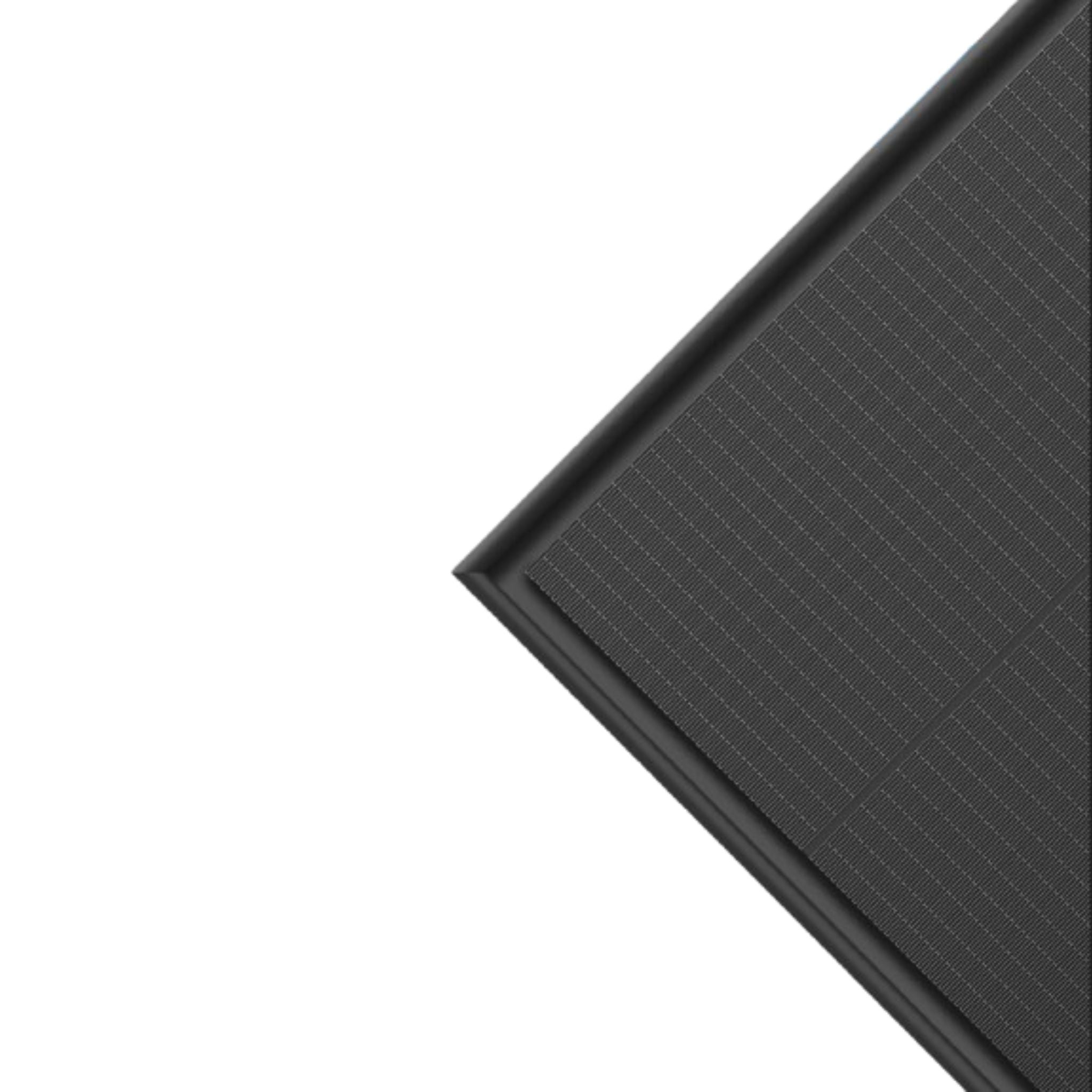

Perlight 425W Delta All Black Mono Solar Panel

The Perlight 425W Delta All Black Mono Solar Panel is designed for high-efficiency power generation with a sleek all-black aesthetic that enhances any residential or commercial solar installation. Built with advanced mono-crystalline technology, it delivers exceptional output and durability, even in challenging environments.

Key Features:

• High power output of 425W for greater energy yield
• Impressive efficiency rating of 21.4%
• Elegant all-black design ideal for discreet rooftop mounting
• Robust anodized aluminum frame and tempered glass for longevity
• Equipped with Stäubli MC4 EVO 2A connectors for secure installation


Specifications:

Electrical Characteristics (STC)

• Module Type: 425
• Maximum Power - Pm (W): 425
• Open Circuit Voltage - Voc (V): 41.7
• Short Circuit Current - Isc (A): 13.03
• Maximum Power Voltage - Vm (V): 34.6
• Maximum Power Current - Im (A): 12.30
• Module Efficiency - η (%): 21.4


Electrical Characteristics at NMOT

• Maximum Power - Pm (W): 320
• Open Circuit Voltage - Voc (V): 39.8
• Short Circuit Current - Isc (A): 10.50
• Maximum Power Voltage - Vm (V): 33.0
• Maximum Power Current - Im (A): 9.70


Mechanical Parameters

• Dimensions: 1812 × 1096 × 30 mm
• Weight: 20.8 kg
• Front Glass: Tempered glass, 3.2mm
• Frame: Anodized aluminum profile
• Cells: Mono-crystalline solar cell
• Cell Orientation: 305 (61 × 5)
• Junction Box: IP68, two diodes
• Cable: 4mm², 1300mm/1300mm
• Packaging: 36 pcs/box; 924 pcs/40’ container
• Connector: Stäubli MC4 EVO 2A


Temperature Parameters

• NMOT: 42.3°C (±2°C)
• Temperature Coefficient of Voc: -0.27%/°C
• Temperature Coefficient of Isc: +0.04%/°C
• Temperature Coefficient of Pm: -0.34%/°C


Maximum Ratings

• Maximum System Voltage [V]: DC1500 (IEC)
• Series Fuse Rating [A]: 25
• Maximum Surface Load Capacity [Pa]: Front 5400 / Back 2400
• Temperature Range [°C]: -40 ~ +85
• Withstanding Hail: Maximum diameter of 25 mm with impact speed of 23 m/s


What's included in the Box?

• 1 x Perlight 425W Delta All Black Mono Solar Panel
• Pre-installed IP68 junction box with two diodes
• Dual 1300mm cables with Stäubli MC4 EVO 2A connectors


Applications

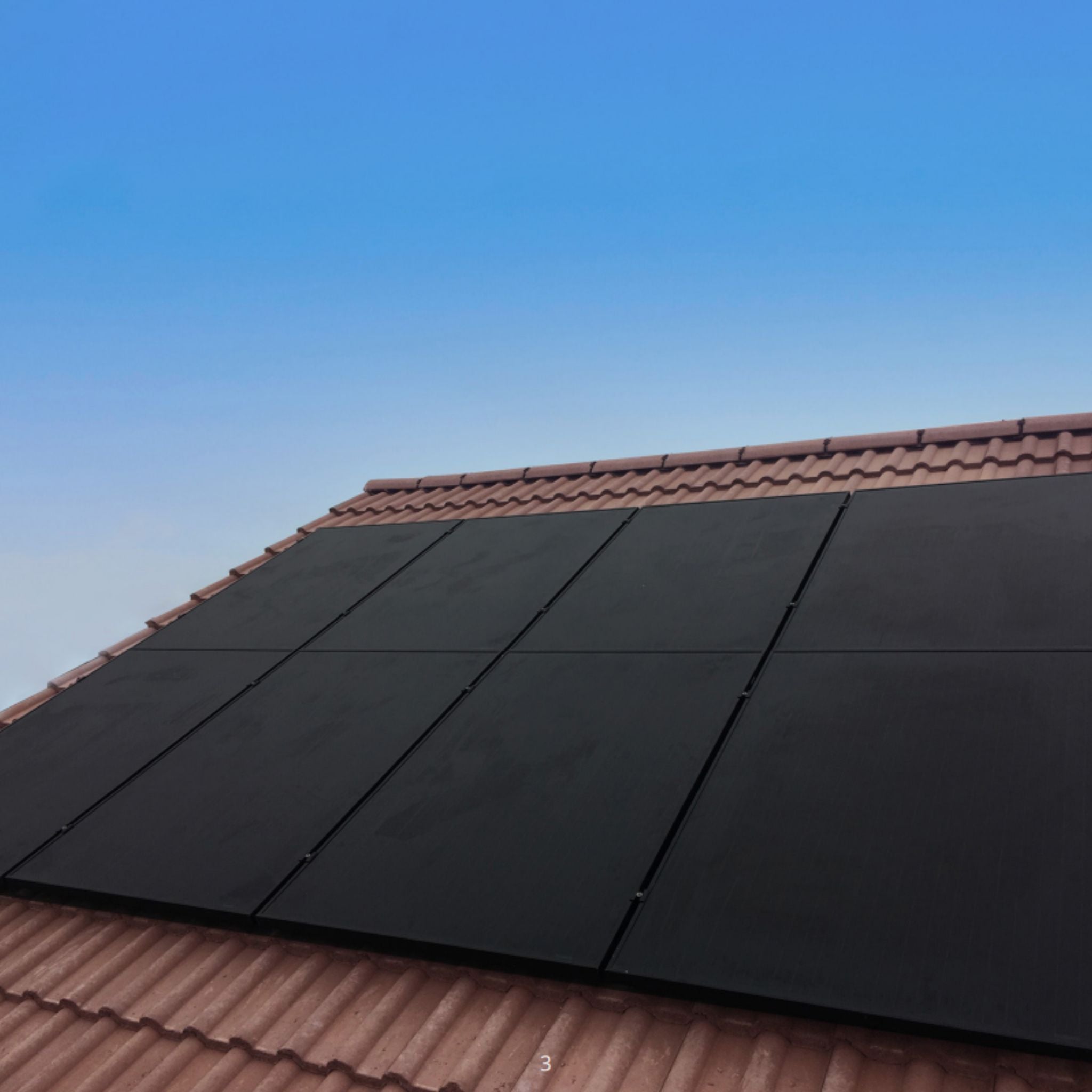

• Residential rooftop solar installations
• Commercial and industrial building integrations
• Off-grid solar systems
• Large-scale ground-mounted solar farms


Why Choose This Product?

• High Energy Efficiency: With an efficiency of 21.4%, this panel offers optimal power production from limited roof space.
• Stylish Design: Its sleek all-black finish delivers an elegant, low-profile appearance, ideal for modern architectural aesthetics.
• Robust Durability: Built with anodized aluminum and tempered glass, plus IP68 protection and hail resistance for harsh environments.
• Sustainability: Maximised power density reduces the total number of panels needed, lowering lifecycle carbon impact.
• Long Warranty: Typically backed by a strong manufacturer warranty, ensuring reliability and peace of mind.


The Perlight 425W Delta All Black Mono Solar Panel is a high-performance, visually refined solar solution ideal for homeowners and businesses seeking efficient energy generation with premium design. Its cutting-edge construction ensures long-term durability and excellent performance in varying weather conditions.
