Description

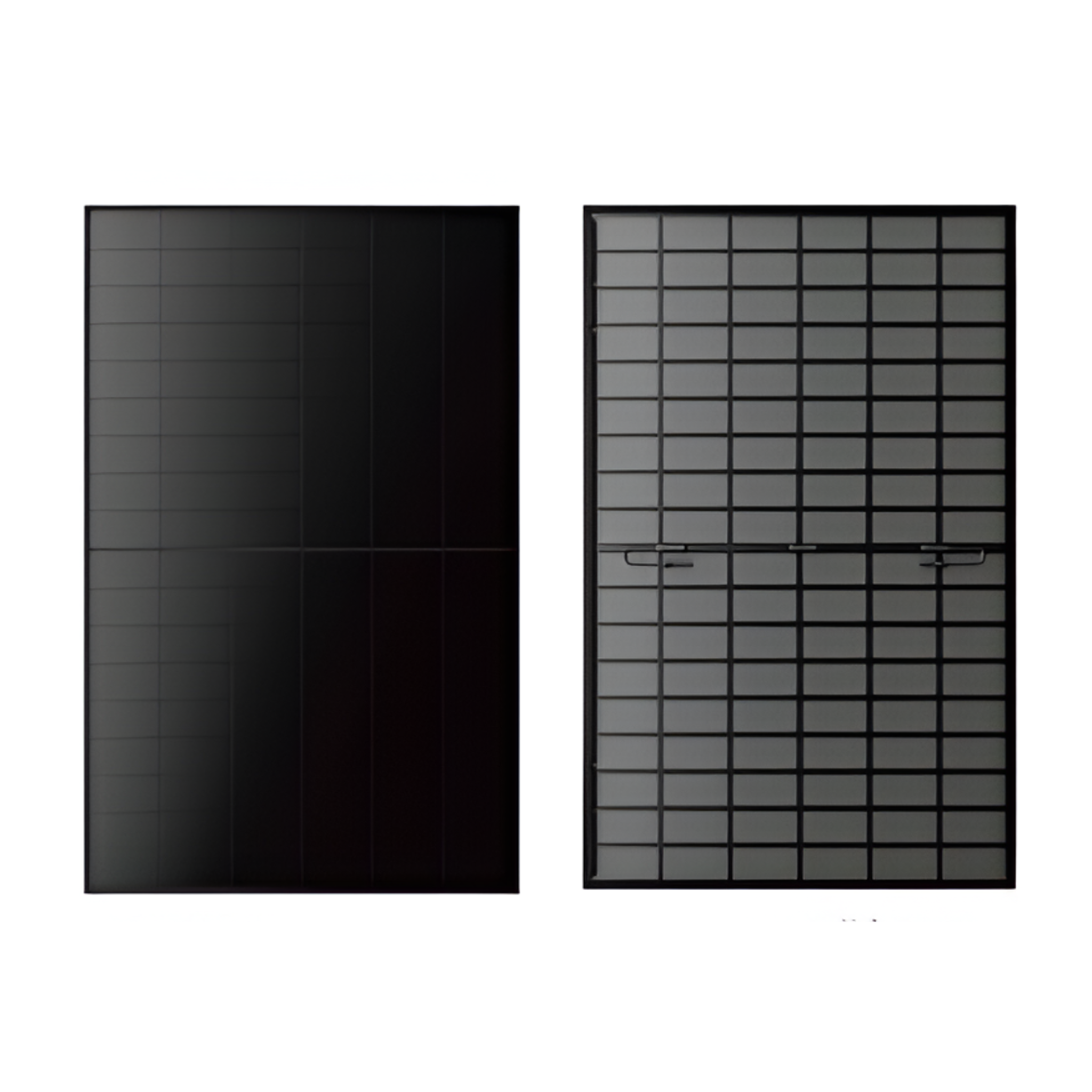

LONGi S10 - 490W Mono 54cell All Black SDM1 Solar Panel

The LONGi 490W S10 HJBB is a premium all-black solar panel designed for high-end residential and commercial systems. Featuring cutting-edge HIBC back-contact cell technology, it delivers exceptional efficiency and reliability with a sleek, seamless appearance. Its dual-glass design enhances durability, while the low-temperature coefficient ensures stable performance in all conditions.

Key Features

• High Efficiency: 24.0% maximum module efficiency for superior energy yield in limited space.
• Dual Glass Design: 2.0mm + 1.6mm semi-tempered glass for improved strength and extended lifespan.
• Robust Durability: Withstands front loads up to 6000Pa and rear loads up to 3600Pa for wind and snow resistance.
• Real Black Aesthetic: Full black finish with no visible gridlines for a modern, clean look.
• Advanced HIBC Technology: Higher energy output in all weather conditions and reduced shading losses.
• Enhanced Longevity: 30-year linear power output warranty and 30-year materials and workmanship warranty.
• Fire Rating Class A: Certified to IEC fire safety standards for peace of mind.

Specifications

• Model: LR7-54HJBB-490M
• Cell Type: Monocrystalline HIBC (Half-Cut, 108 cells)
• Rated Power (Pmax): 490 W
• Module Efficiency: 24.0%
• Open-Circuit Voltage (Voc): 41.25 V
• Short-Circuit Current (Isc): 15.04 A
• Voltage at Max Power (Vmp): 34.07 V
• Current at Max Power (Imp): 14.38 A
• Power Tolerance: 0 ~ +3%
• Maximum System Voltage: 1500 V (IEC)
• Maximum Series Fuse Rating: 30 A
• Temperature Coefficient (Pmax): -0.24% / °C
• Temperature Coefficient (Voc): -0.21% / °C
• Temperature Coefficient (Isc): +0.05% / °C
• Nominal Operating Cell Temperature (NOCT): 45 ± 2 °C
• Operational Temperature Range: -40 °C to +85 °C
• Dimensions: 1800 × 1134 × 30 mm
• Weight: 23.5 kg
• Frame: Black anodized aluminium alloy
• Glass: Dual glass (2.0mm front / 1.6mm rear semi-tempered)
• Junction Box: IP68 rated
• Connector Cable: 4mm², +400mm / -200mm (customisable ±1200mm)
• Mechanical Load: 6000Pa (front) / 3600Pa (rear)
• Fire Rating: Class A (IEC)

Applications

Ideal for residential rooftops, small commercial projects, and design-conscious installations where performance and aesthetics matter.

What’s Included in the Box

• 1× LONGi 490W S10 HJBB Mono 54-Cell All Black Solar Panel

• Product documentation & warranty information

Why Buy This Product

• High Power Output: 490W with excellent power density around 240 W/m², delivering more energy per square metre.
• 108 Half-Cells Layout: Reduces shading losses, improves performance under partial shade, and enhances durability.
• All-Black Design: Black frame and black backsheet for a sleek, uniform appearance that suits rooftop aesthetics.
• Glass-Glass Module Structure: For enhanced mechanical strength, better moisture resistance, and a longer lifespan.
• Exceptional Durability: Designed to withstand heavy snow loads (6000 Pa), strong wind loads (3600 Pa), and hail resistance class RG3.
• Long-Term Investment: 30-year warranty for both performance and materials.
• Environmentally Friendly: Low carbon footprint across the full lifecycle.

Combined with LONGi’s reputation as one of the world’s leading solar manufacturers, this panel represents a strong investment in both clean energy and long-term value.
