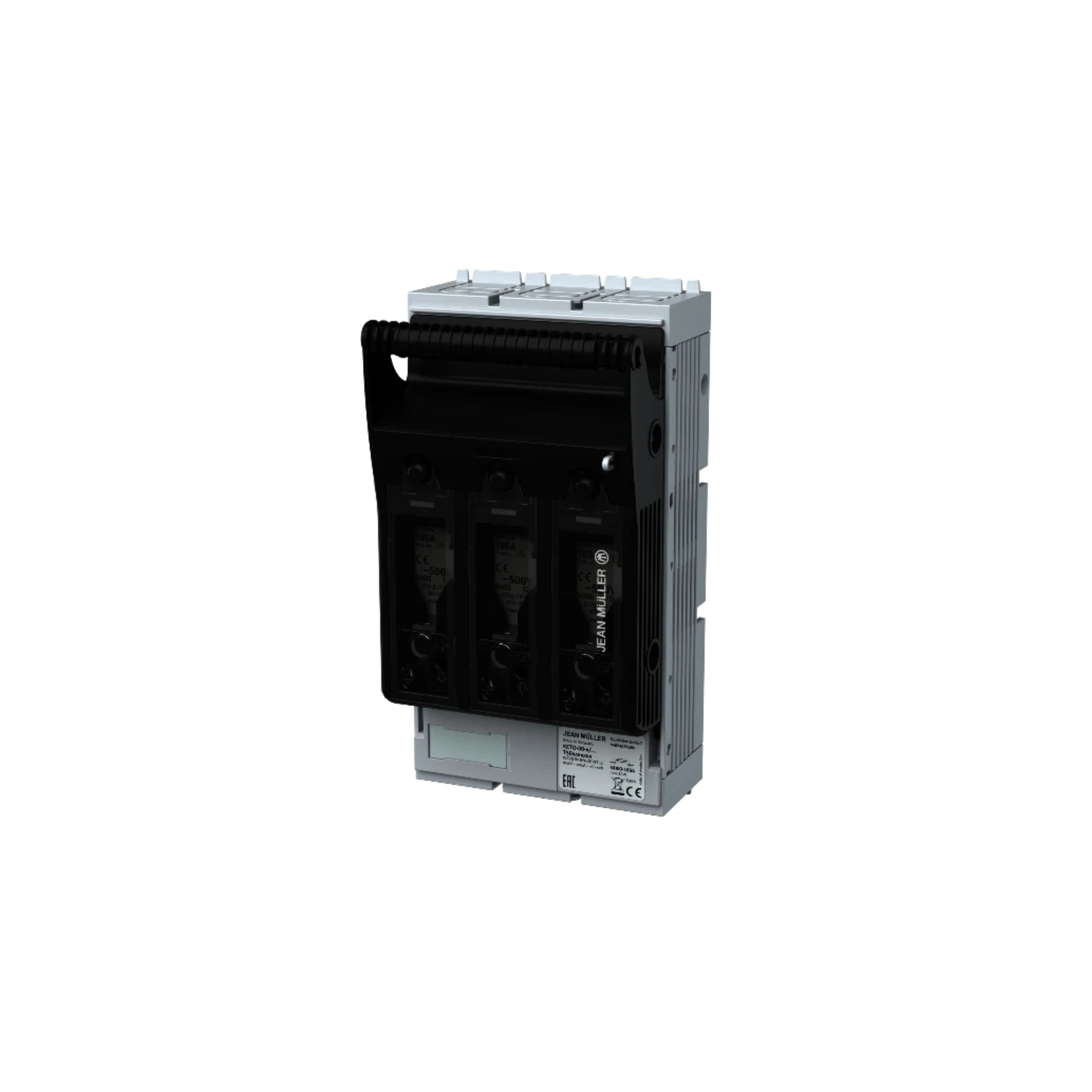

Jean Müller Fuse Switch Disconnector KETO 00 Battery Isolator

The Jean Müller KETO 00 Fuse Switch Disconnector is a compact, high-performance battery isolator designed for reliable protection and disconnection in DC systems. Suitable for wall-mounted installations, it features robust NH fuse compatibility and supports high DC current ratings, making it ideal for battery storage, off-grid systems, and hybrid solar installations. Its precision-engineered design includes M8 terminal lugs and supports cable sizes from 25mm² to 95mm², providing secure and flexible connectivity. Built for durability and safety, this switch disconnector ensures stable performance even in demanding conditions.

Key Features:

• Compact KETO 00 Format: Efficiently sized for versatile battery isolation applications.

• High Current Capacity: Rated for up to 160A DC and 250V DC for reliable protection in solar and storage systems.

• Wall-Mountable Design: Easy installation with durable mounting capability.

• Wide Cable Compatibility: Accepts M8 lugs for cable sizes from 25mm² to 95mm².

• Trusted Jean Müller Quality: Engineered in Germany with rigorous standards for performance and safety.

Specifications:

• Supplier Part No: T500113002

• Size: NH00

• Rated Current: 100A

• Maximum DC Current: 160A

• DC Voltage Rating: 250V

• AC Rated Voltage: 500V

• Rated Breaking Capacity AC: 120kA

• Contact Type: Blade contact

• Gripping Lugs: Live

• Overall Width: 106mm

• System Size: 195mm

• Terminal Type: M8 lugs

• Cable Area: 25–95 mm²

• Indicator / Signalling: Combi indicator

• Pre-arcing Joule Integral (4ms): 30,000 A²s

• Operating Joule Integral at Un: 155,000 A²s

• Power Dissipation at Rated Current: 9.1W

• Utilization Category: gG

• Weight: 0.72 kg

Applications:

• DC battery isolator for hybrid and off-grid systems

• Battery storage systems in residential and commercial PV setups

• High-current protection in inverter and charge controller setups

• Industrial DC distribution panels requiring safe fuse disconnection

Why Choose This Product:

• High Energy Efficiency: Rated for high current and voltage for effective system protection with minimal losses.

• Robust Durability: Engineered for long-term operation with premium thermal and mechanical integrity.

• Sustainability: Designed to support renewable energy applications with dependable safety.

• Long Warranty & Reliability: Manufactured by Jean Müller — a proven name in high-performance electrical protection.

What’s Included in the Box:

• 1x Jean Müller KETO 00 Fuse Switch Disconnector (fuses not included)

The Jean Müller KETO 00 Fuse Switch Disconnector is a powerful and space-efficient isolator designed to meet the demands of modern solar battery systems. With wide cable compatibility, high current ratings, and excellent safety certifications, it offers dependable performance across a range of DC applications.

Important Notice:

• The KETO 00 requires two appropriately rated fuses, which must be selected based on your battery system’s maximum current with an added safety factor.
• Please note: all KETO switches will transition to BLACK in future manufacturing batches.
