Description

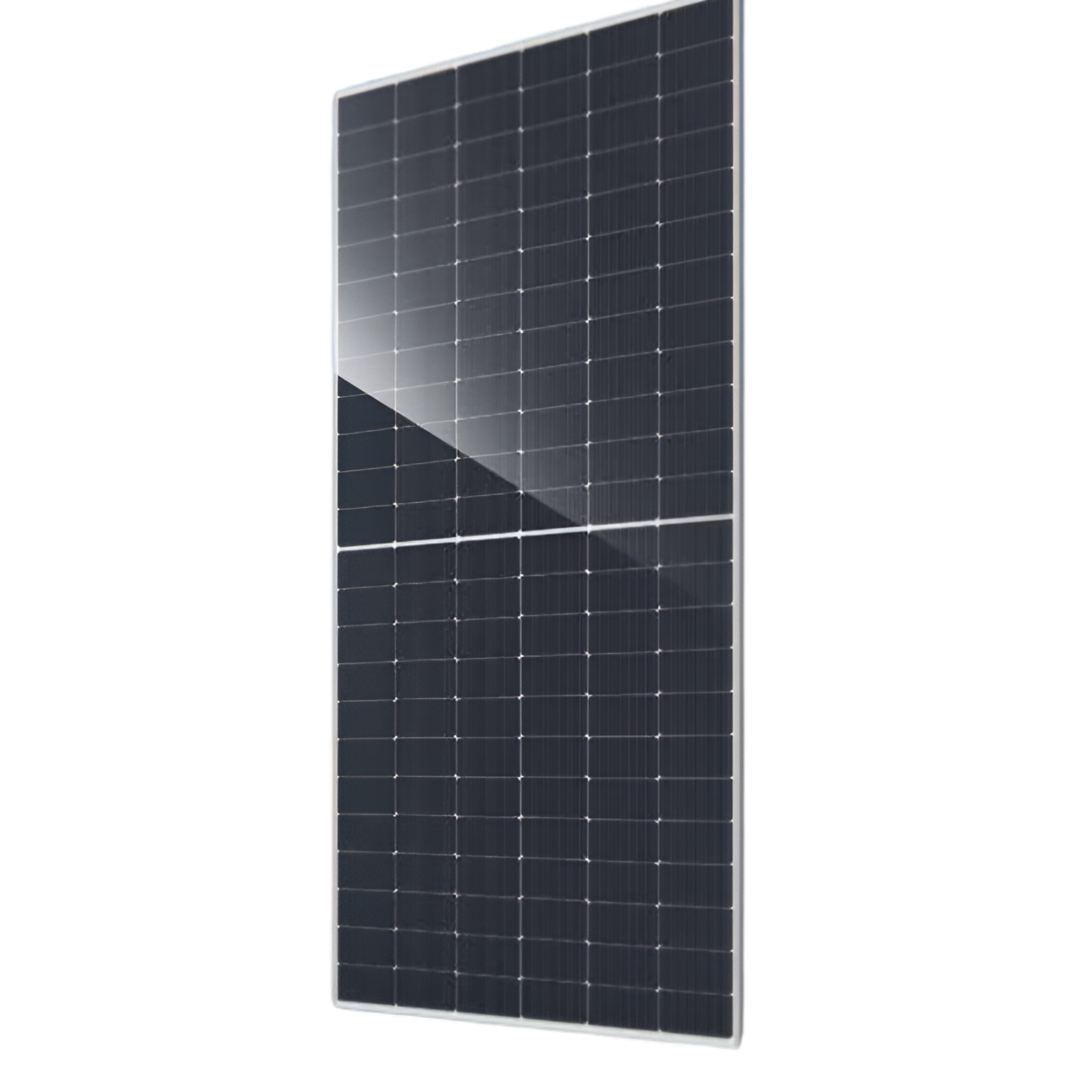

JA Solar 605W N-type Bifacial Double Glass Half-Cell MC4 Solar Panel

The JA Solar 605W N-type Bifacial Double Glass Half-Cell Solar Panel is designed for utility-scale and large commercial solar projects, delivering ultra-high power output and superior reliability. With N-type half-cell technology and a bifacial double-glass structure, this module ensures excellent efficiency, reduced degradation, and enhanced performance under real-world conditions. Its robust design and premium materials make it a top choice for projects that require maximum power density and long-term durability.

Key Features

• 605W output power for high-efficiency energy generation

• 22.9% efficiency with advanced N-type half-cell design

• Bifacial double-glass construction increases energy yield from both sides

• Excellent temperature coefficient of -0.29%/°C for hot climates

• Strong and durable double-glass design for extended service life

• Certified EVO2A round post connectors for secure and reliable connections

• Clamp position restricted to long side only for safe mounting

Specifications

• Supplier Part No: JAM72D-40-605-LB-TS-MC4

• MCS Reference: BABT 8515-341-605W

• Rated Power: 605 W

• Efficiency: 22.9 %

• Weight: 33 kg

• Dimensions: 2,333 × 1,134 × 30 mm

• Frame: Black

• Glass: Double Glass

• Bifacial Design: Yes

• Half-Cell Technology: Yes

• VMPP: 43.94 V

• IMPP: 13.77 A

• VOC: 52.6 V

• ISC: 14.53 A

• Temperature Coefficient (Pmax): -0.29 %/°C

• Connector Description: EVO2A

• Connector Type: Round Post

• Clamp Position: Long side only

Applications

• Utility-scale solar power plants

• Large commercial and industrial installations

• High-performance projects requiring ultra-high output and long-term reliability

What’s Included in the Box

• 1 × JA Solar 605W N-type Bifacial Double Glass Half-Cell MC4 Solar Panel

Disclaimer

All product information provided by Solareon UK is intended for general guidance only and may be subject to change or error. Solareon UK does not accept liability for any inaccuracies or omissions in the product specifications displayed. For accurate and detailed technical information, please refer to the manufacturer’s official datasheet available in the 'Downloads' section. We strongly advise confirming all critical details directly with the manufacturer prior to making purchasing or installation decisions.
