Description

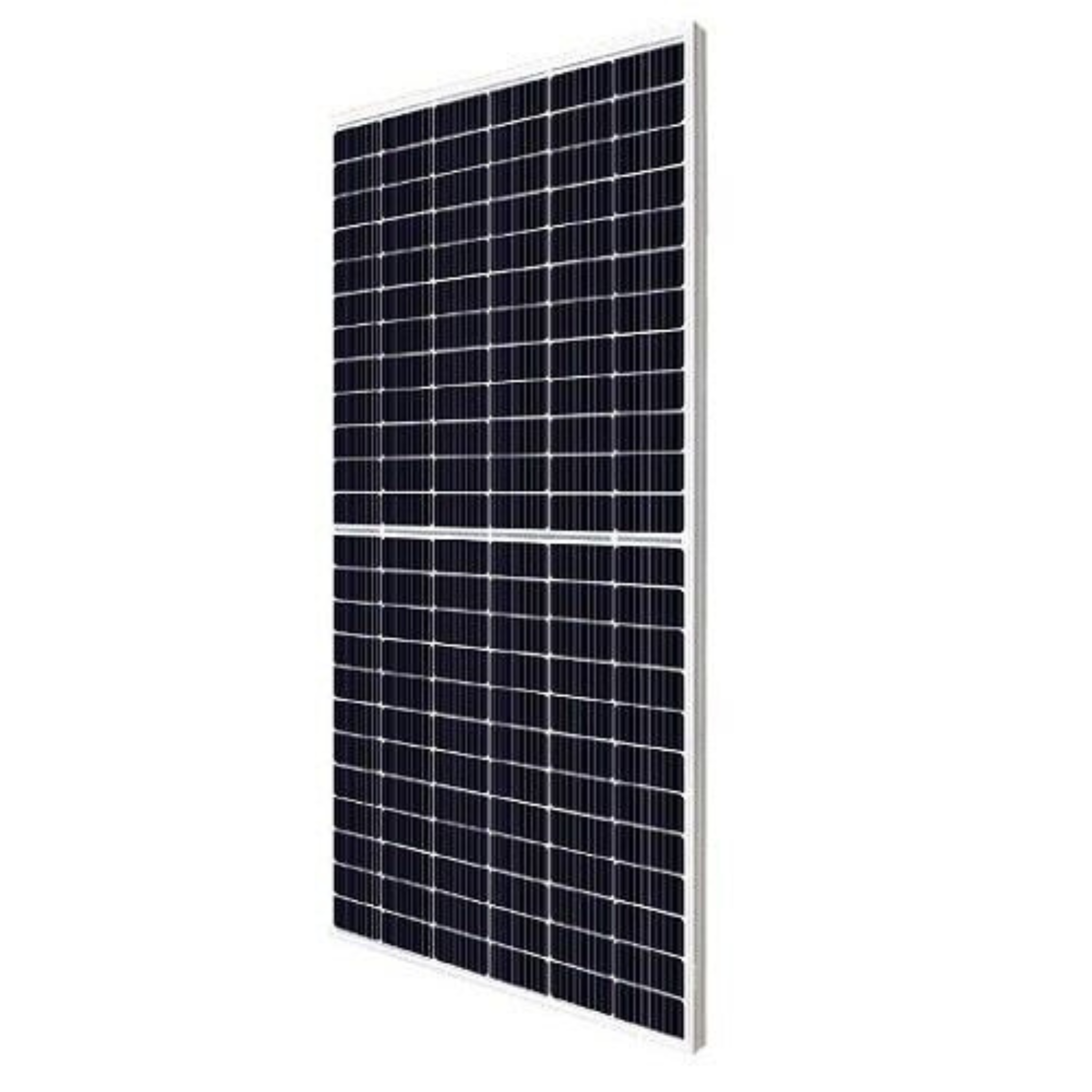

High-Efficiency Solar Energy with the JA Solar 600W N-type Bifacial Double Glass Half-Cell Traceable MC4 Solar Panel

The JA Solar 600W N-type Bifacial Double Glass Half-Cell MBB Traceable LB MC4 Solar Panel is a premium, high-performance solution for generating clean and sustainable energy. Combining N-type bifacial cells, double-glass technology, and multi-busbar (MBB) half-cell design, this panel offers exceptional energy efficiency, durability, and performance. Ideal for both residential and large-scale commercial applications, it maximizes energy production even under low-light conditions and partial shading.

Key Features

• High Power Output: Provides 600W of power, ideal for maximizing energy production in both small and large solar installations.
• N-Type Bifacial Technology: The N-type bifacial cells capture sunlight from both sides of the panel, increasing energy yield by harnessing reflected light from surfaces such as roofs, walls, or the ground.
• Half-Cell Design: The half-cell structure reduces power loss and enhances performance in shaded or partially obstructed conditions.
• Multi-Busbar (MBB) Technology: MBB technology improves conductivity, reduces mechanical stress, and boosts the overall reliability and efficiency of the panel.
• Double-Glass Construction: The double-glass design offers superior durability, resistance to environmental factors, and improved long-term performance in harsh conditions.

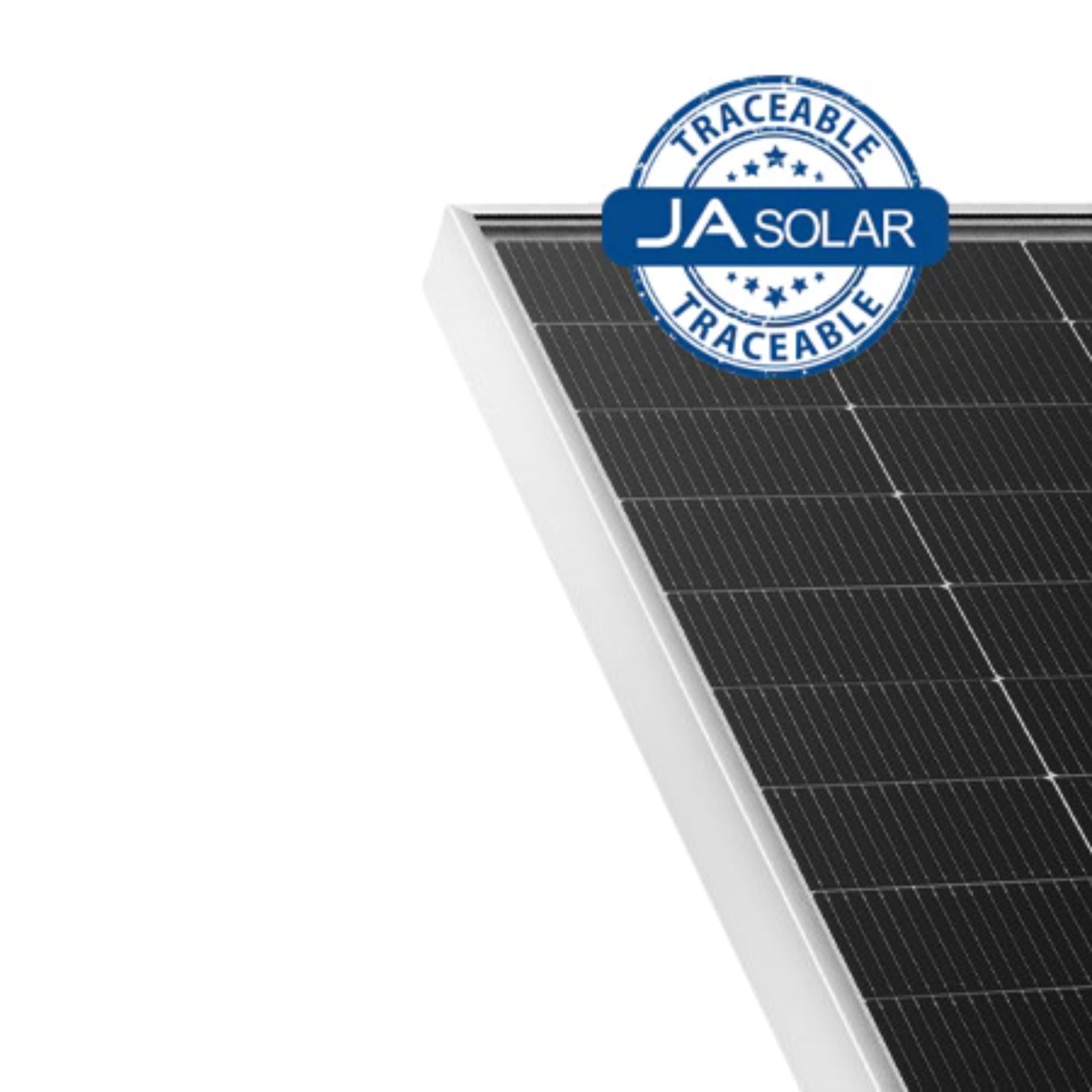

• Traceable Quality: The panel comes with traceable quality assurance, ensuring that each module meets strict manufacturing and performance standards.
• MC4 Connectors: Equipped with MC4 connectors, making installation quick and secure.
• Durable and Weather-Resistant: Built to withstand extreme environmental conditions, with a snow load capacity of up to 5400 Pa and wind load capacity of up to 2400 Pa.
• Long-Term Warranty: Comes with a 12-year product warranty and 25-year linear power output warranty for peace of mind and reliable long-term performance.

What’s Included in the Box

• 1 x JA Solar 600W N-type Bifacial Double Glass Half-Cell MBB Traceable LB MC4 Solar Panel
• 1 x Installation Manual
• 1 x Warranty Card


Technical Specifications

• Power Output: 600W
• Efficiency: 21.9%
• Cell Type: N-type Bifacial Half-Cell with Multi-Busbar (MBB) Technology
• Dimensions: 2279mm x 1134mm x 35mm (89.7" x 44.6" x 1.4")
• Weight: 32.5kg
• Operating Temperature: -40°C to 85°C (-40°F to 185°F)
• Maximum System Voltage: 1500V DC
• Maximum Power Current (Impp): 14.50A
• Maximum Power Voltage (Vmpp): 41.2V
• Open Circuit Voltage (Voc): 49.7V
• Short Circuit Current (Isc): 15.18A
• Snow Load Capacity: 5400 Pa
• Wind Load Capacity: 2400 Pa
• Connector Type: MC4

• Part No: JAM72D-40-600-LB-TS-MC4

Applications

• Residential Solar Systems: Ideal for homeowners seeking high-efficiency solar panels to reduce energy costs and enhance sustainability.
• Commercial Solar Installations: Perfect for businesses and industrial facilities aiming to maximize energy output while minimizing their carbon footprint.
• Utility-Scale Solar Projects: Suited for large-scale solar farms and utility providers requiring high-performance solar modules.
• Off-Grid Systems: A reliable solution for areas with no access to the grid, providing efficient energy generation for remote locations.
• Low-Light and Shaded Areas: Optimized for better performance in environments with partial shading or cloudy conditions.


Important Information

• Professional Installation Required: This solar panel must be installed by a qualified electrician or technician in compliance with local regulations and standards.
• Inverter Compatibility: Ensure that your inverter is compatible with the panel’s specifications to achieve optimal performance.
• Warranty Registration: Register your product with JA Solar to activate the extended warranty and enjoy added protection.
• Delivery: Please note that due to the size of the panels and the gap between the slats of the pallets (both length and width), a forklift or similar equipment is required on-site to offload these modules.

The JA Solar 600W N-type Bifacial Double Glass Half-Cell MBB Traceable LB MC4 Solar Panel offers exceptional efficiency, high energy output, and a durable design, making it an ideal choice for residential, commercial, and utility-scale solar installations. Maximize your energy production with the advanced technology and proven reliability of JA Solar.

For more information, please refer to the official datasheet attached in downloads.
