Description

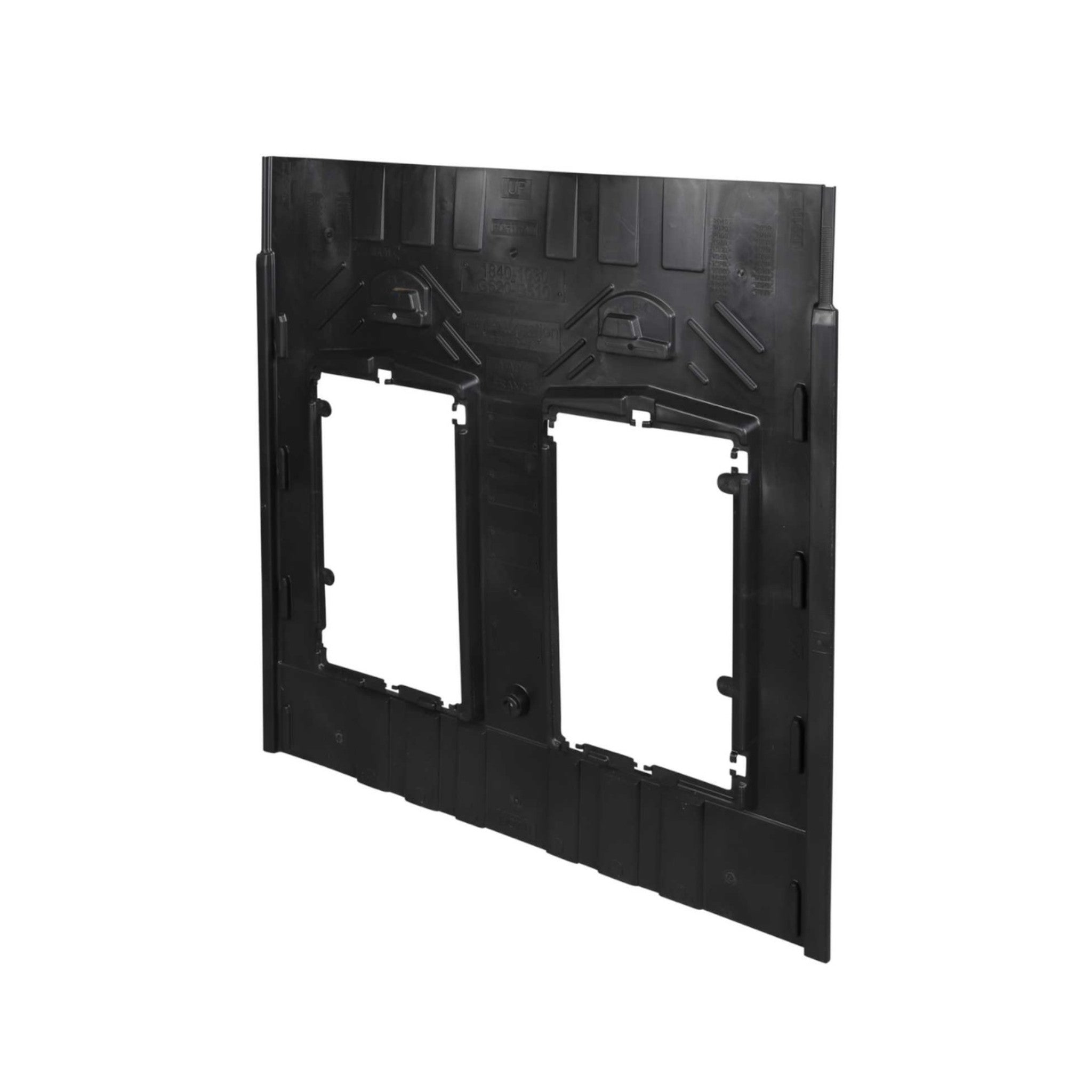

GSE Portrait 2030 - 1135 Half Frame - 2 per panel

The GSE Portrait 2030 - 1135 Half Frame is a next-generation in-roof solar mounting system designed for the safe and efficient integration of high-power PV modules (500W+) in portrait orientation.
Engineered with precision and durability in mind, it supports a wide range of module dimensions and ensures seamless installation and long-term reliability.

This updated model benefits from the proven design of previous versions (H1650 and H1840), incorporating enhanced mechanical stability and simplified mounting features.
Independently tested by certified European laboratories, it meets the highest standards of strength, weather resistance, and longevity.

Key Features

• Optimized for 500W+ Modules: Compatible with new-generation half-frame PV panels

• Flexible Compatibility: Supports modules from 1990 to 2180 mm in height and 991 to 1305 mm in width

• Portrait Installation: Enables easy and secure integration of panels in portrait format

• Enhanced Design: Based on the field-proven H1650 and H1840 models

• Certified Durability: Tested by European laboratories for mechanical and weather resistance

• Quick Installation: Simple assembly process reducing installation time

• Lightweight and Robust: High structural stability with only 3.3 kg per frame set

Specifications

• Supplier Part No: ART105792

• Rated Use: In-roof portrait integration of PV modules

• Compatible Module Dimensions:

  • Height: 1990–2180 mm

  • Width: 991–1305 mm

• Configuration: 2 frames per solar panel

• Mounting Type: Half-frame portrait system

• Weight: 3.3 kg

• Test Certification: Verified by recognized European laboratories

Applications

• Residential and commercial solar roofs

• Aesthetic in-roof PV installations

• Projects using 500W+ portrait solar modules

• New builds and retrofit solar projects

What’s Included in the Box

• 2 × GSE Portrait 2030 - 1135 Half Frame units

• Installation accessories

• User and installation guide

Disclaimer

All product information provided by Solareon UK is intended for general guidance only and may be subject to change or error. Solareon UK does not accept liability for any inaccuracies or omissions in the product specifications displayed. For accurate and detailed technical information, please refer to the manufacturer’s official datasheet available in the 'Downloads' section. We strongly advise confirming all critical details directly with the manufacturer prior to making purchasing or installation decisions.
