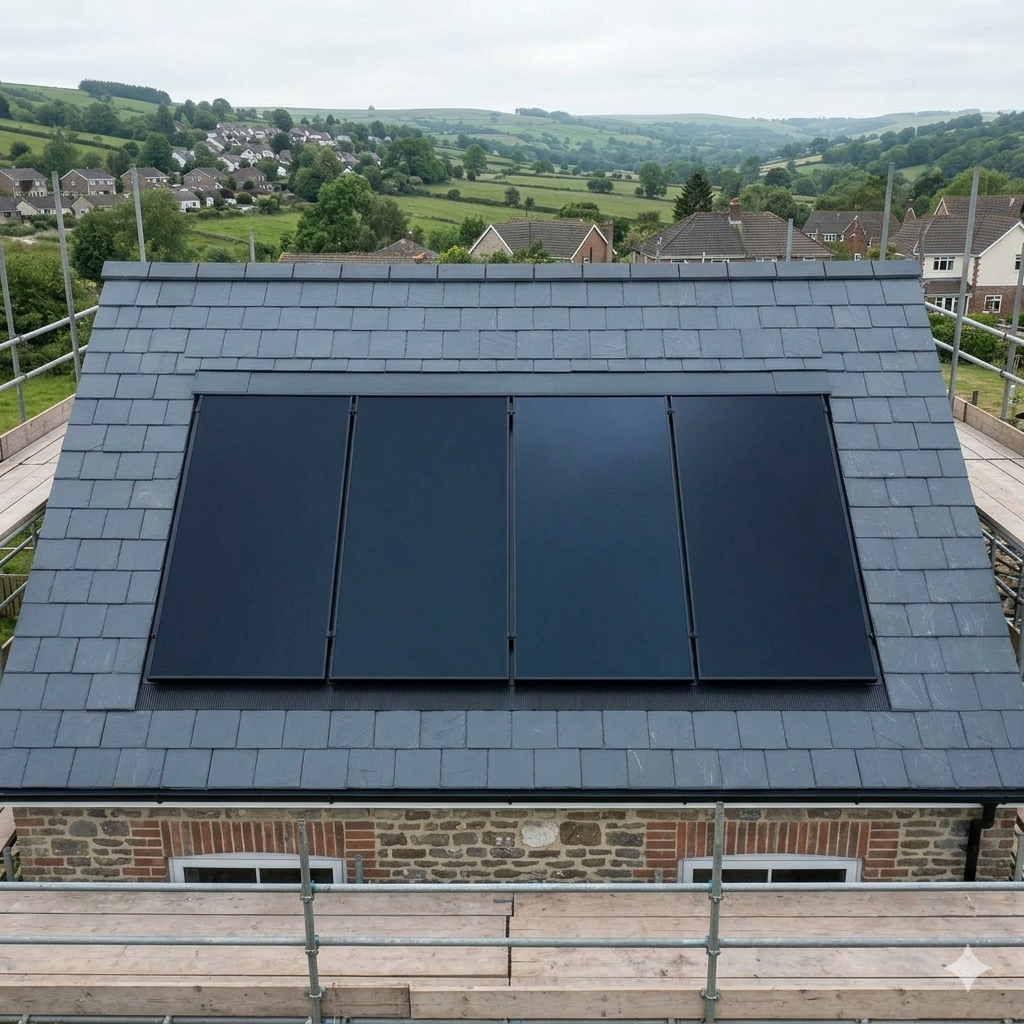

GSE In-Roof Solar Panel Mounting Kit for 1 x 4 Panels Portrait (1610–1800mm)

Combine secure mounting with a clean, low-profile finish using the GSE In-Roof System Mounting Kit for 4 Solar Panels in Portrait. Designed to integrate photovoltaic panels directly into the roof structure, this system replaces traditional roof tiles beneath the array, creating a sleek and professional roof-integrated solar installation.

The GSE In-Roof System is a quick and reliable solution for installers and homeowners looking to integrate solar panels seamlessly into the roof. Its patented design ensures safe installation while maintaining the integrity and warranty of the existing roof covering. The system also provides effective waterproofing and ventilation to help maintain long-term roof performance.

This kit is designed to mount four framed solar panels measuring between 1610mm and 1800mm in length and 1130–1135mm in width, arranged in a single row in portrait orientation.

Compatible solar panels can be supplied with this kit depending on your requirements. Please contact us if you would like advice selecting suitable modules.

Key Features

• Roof-Integrated Solar Mounting System: Designed to integrate solar panels directly into the roof for a sleek and discreet finish.

• Wide Panel Compatibility: Compatible with approximately 95% of framed solar panels available on the market.

• Weatherproof and Certified Design: Engineered for water tightness, ventilation, and fire resistance.

• Quick Installation: Developed by installers for installers, ensuring a straightforward and efficient installation process.

• Low-Profile Aesthetic: Provides a clean roof-integrated solar appearance compared to traditional on-roof mounting.

• European Manufacturing: 100% manufactured in France with high production standards.

• Reliable Warranty: Backed by a 10-year manufacturer’s warranty for peace of mind.

Specifications

• Product Type: In-roof solar panel mounting kit
• Panel Layout: 1 x 4 panels
• Orientation: Portrait
• Compatible Panel Length: 1610–1800mm
• Compatible Panel Width: 1130–1135mm
• System Type: Roof-integrated mounting system
• Manufacturing Origin: France
• Warranty: 10 years manufacturer guarantee
• Maintenance: Minimal maintenance required. Regular cleaning of solar panels recommended to maintain optimal performance.

Applications

• Residential solar installations

• New build properties requiring integrated solar roofing

• Roof renovation projects where solar panels replace roof tiles

• Installations requiring a discreet and low-profile solar system

• Professional solar PV installations requiring certified in-roof mounting systems

What’s Included in the Box

The kit includes all components required to securely install 4 portrait solar panels.

• 8 x GSE Half Frame Portrait H1650/1135 (1100 × 1200 × 20mm, 3kg each)
  Module mounting plate for portrait PV modules measuring 1610–1800mm length and 1130–1135mm width. Two halves are required per module.
• 4 x GSE Top Centre Flashing (1500 × 330 × 1mm, 1.4kg)
• 1 x GSE Top Right Corner Flashing (503 × 330 × 1mm, 0.4kg)
• 1 x GSE Top Left Corner Flashing (503 × 330 × 1mm, 0.4kg)
• 3 x GSE Top Junction Flashing (503 × 330 × 1mm, 0.4kg)
• 4 x GSE Lateral Flashing (1290 × 185 × 1mm, 0.48kg)
• 23 x GSE Flashing Hook (38 × 20 × 1mm, 0.006kg)
• 6 x GSE Mid Clamp H16 (60 × 27 × 25mm, 0.03kg)
• 4 x GSE End Clamp H16 (48 × 27 × 25mm, 0.02kg)
• 1 x GSE EPDM Clamp Wedges Twin Pack (2 Left / 2 Right) (50 × 25 × 23mm, 0.021kg)
• 2 x GSE Rooflex Grey 330 Waterproof Strip – 5m Roll (5000 × 330mm, 2kg)
• 2 x GSE EPDM Pre-compressed Seal for Module Clamp (21 × 25 × 5mm, 0.1kg)
• 34 x GSE Self-Tapping Screw with Black GSE Washer (65 × 6.5mm, 0.01kg)

Why Buy This Product

• Professional Roof Integration: Designed to replace roof tiles beneath the solar array for a seamless look.

• High Compatibility: Works with most framed solar panels available today.

• Long-Term Durability: Built with weather-resistant materials to withstand outdoor conditions.

• Improved Roof Protection: Engineered flashing and seals ensure long-term waterproofing.

• Installer-Friendly Design: Simplified installation process developed by experienced solar installers.

The GSE In-Roof System™ is designed for long-term reliability with minimal maintenance required. Regular cleaning of the solar panels will help maintain optimal energy production and ensure maximum system performance over time.
