Description

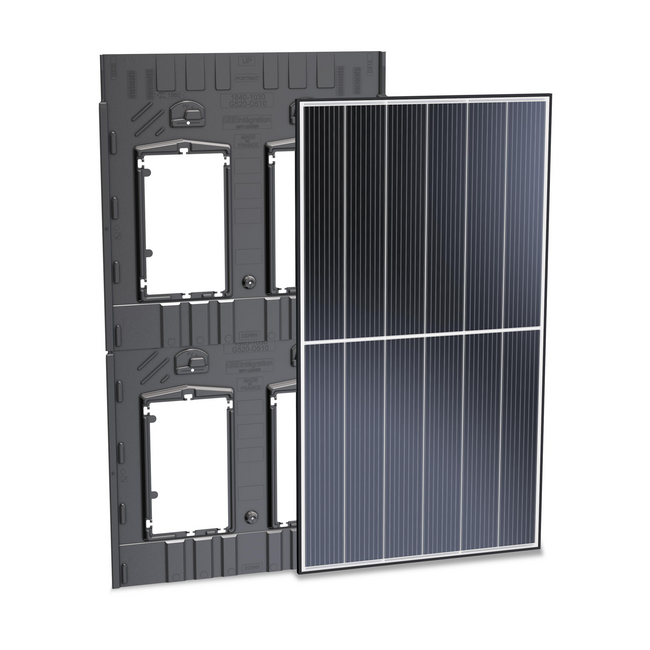

GSE Frame Portrait DPO - 1650/1100

The GSE In-Roof System™ offers versatile solar module installation for all roof types, seamlessly integrating into both new and existing buildings.

Key Features

• Versatile Compatibility: Designed to install solar modules on a wide range of roof coverings including curved tiles, interlocking tiles, flat tiles, slates, metal, zinc, and trapezoidal profiles.
• Seamless Integration: Suitable for both new builds and retrofit projects, providing a clean and integrated solar solution.
• Efficient Installation: Engineered for straightforward installation, reducing labor time and complexity.
• Durable Construction: Built with robust materials to withstand environmental conditions and ensure long-term performance.
• Order in Halves: Frames are supplied in halves, with two frames required per module. This product represents one half of a single frame.

Specifications

• Colour: Black
• Type of Product: Mounting
• Dimensions: 1650 x 1100mm
• Supplier Part No: ART105155
• Weight: 3 kg
• Module Size Consideration: Always use SEGEN or GSE design tools to ensure correct frame selection for your specific module size.

Applications

Ideal for residential and commercial buildings requiring integrated solar photovoltaic systems. This mounting system is particularly useful for achieving a sleek, flush finish with solar panels on any roof surface.

What’s Included in the Box

• GSE Frame Portrait DPO - 1650/1100 (Upper or Lower Half)

Why Buy This Product

• High Energy Efficiency: While not a solar panel itself, this mounting system ensures optimal panel placement for maximum solar energy generation.
• Stylish Design: Provides a clean, integrated look that complements the roofline, enhancing the aesthetic appeal of solar installations.
• Robust Durability: Constructed from high-quality materials designed for longevity and resistance to weathering.
• Sustainability: Facilitates the installation of solar energy systems, contributing to a greener energy future and long-term cost savings.
• Long Warranty: Backed by GSE's commitment to quality and reliability, though specific warranty terms should be confirmed with documentation.

The GSE In-Roof System™ is a leading solution for integrating solar panels directly into the roof structure, offering both functionality and superior aesthetics.

Documents

• Data Sheet: N/A
• Installation Guide / User Manual: Installation Manual GSE V13.2 EN
• Installation Guide / User Manual: Installation Manual GSE-IN-ROOF-SYSTEM-Correspondance-plaques-etriers-EN-V12.0
• Installation Guide / User Manual: Installation Manual Quick Guide GSE June 2021
• Installation Guide / User Manual: User Manual GSE In Roof Systems Dec. 21 V3
• Warranty: Warranty GSE Insurance Certificate 2022 (English, French)
• Other: CE Declaration of Conformity Certifications and Insurance Cover
• Other: CE Declaration of Conformity MCS 12
• Other: Technical Data Frames and Clamps reference file 2020-2022
• Other: Technical Data GSE clamp dimensions
• Other: Technical Data GSE InRoof Dec21 FrameSizes
• Certificate: MCS012 Certificate GSE Issue 7
• Certificate: Test Certificate GSE fire test BRoof T4 March 2022
