Description

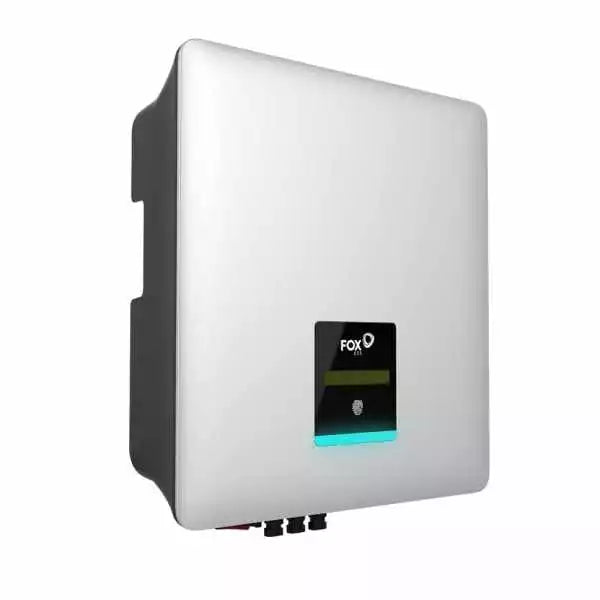

Fox ESS G Series 10kW 1 Phase 3 MPPT String Inverter

The Fox ESS G Series 10kW 1 Phase String Inverter is a high-performance solution designed for modern residential and light commercial solar PV systems. With three independent MPPTs, a wide voltage range, and high conversion efficiency, it delivers reliable energy generation while remaining compact, quiet, and easy to install. Built with durability and smart connectivity in mind, it supports future battery upgrades within the Fox ESS ecosystem.

Key Features

• High Performance: Low start-up voltage and wide MPPT voltage range maximise energy generation, achieving up to 97.8% efficiency.

• Three MPPTs: Flexible system design with improved yield across complex or multi-orientation arrays.

• Easy Installation: Compact, lightweight design with plug and play configuration.

• IP65 Rated: Suitable for outdoor installation with robust environmental protection.

• Remote Monitoring: System monitoring via smartphone app or web portal.

• Battery Ready: Fully optimised for upgrade to Fox ESS battery storage solutions.

• Advanced Cooling: Natural cooling with no internal fans for silent operation and long-term reliability.

Specifications

Product Type: Single-phase string inverter
Colour: White
Nominal AC Power: 10000W
Maximum AC Current: 45.7A
Number of Phases: 1

Number of MPPTs: 3
MPPT Voltage Range: 80 – 550V
Maximum Isc Current: 18A
Start-up Voltage: 120V

Maximum Efficiency: 97.8%
IP Rating: IP65

Communication Interfaces: RS485, Meter / CT, DRM
Cooling Method: Natural cooling
Weight: 19kg
Dimensions: 380 x 440 x 167mm

Product code: FOX-G10-10.0

Applications

• Residential solar PV systems

• Light commercial solar installations

• New build and retrofit projects

• Systems requiring future battery storage expansion

• Installations with multiple roof orientations

What’s Included in the Box

• Fox ESS G Series 10kW 1 Phase String Inverter


• User manual and installation guide

• Communication accessories

Why Buy This Product

• High Energy Efficiency: Achieves up to 97.8% efficiency, maximising solar generation and system returns.

• Flexible System Design: Three MPPTs allow greater design freedom and improved performance across varied array layouts.

• Robust Outdoor Build: IP65-rated enclosure ensures long-term reliability in outdoor environments.

• Smart Monitoring: Real-time system monitoring via app or web portal provides full visibility and control.

• Future-Proof Investment: Designed for seamless integration with Fox ESS battery storage solutions.

• Reliable Warranty Support: Backed by Fox ESS manufacturer warranty for long-term peace of mind.

Engineered for performance, flexibility, and longevity, the Fox ESS G Series 10kW inverter is an ideal choice for installers and system owners seeking dependable energy conversion with upgrade-ready functionality.
