Description

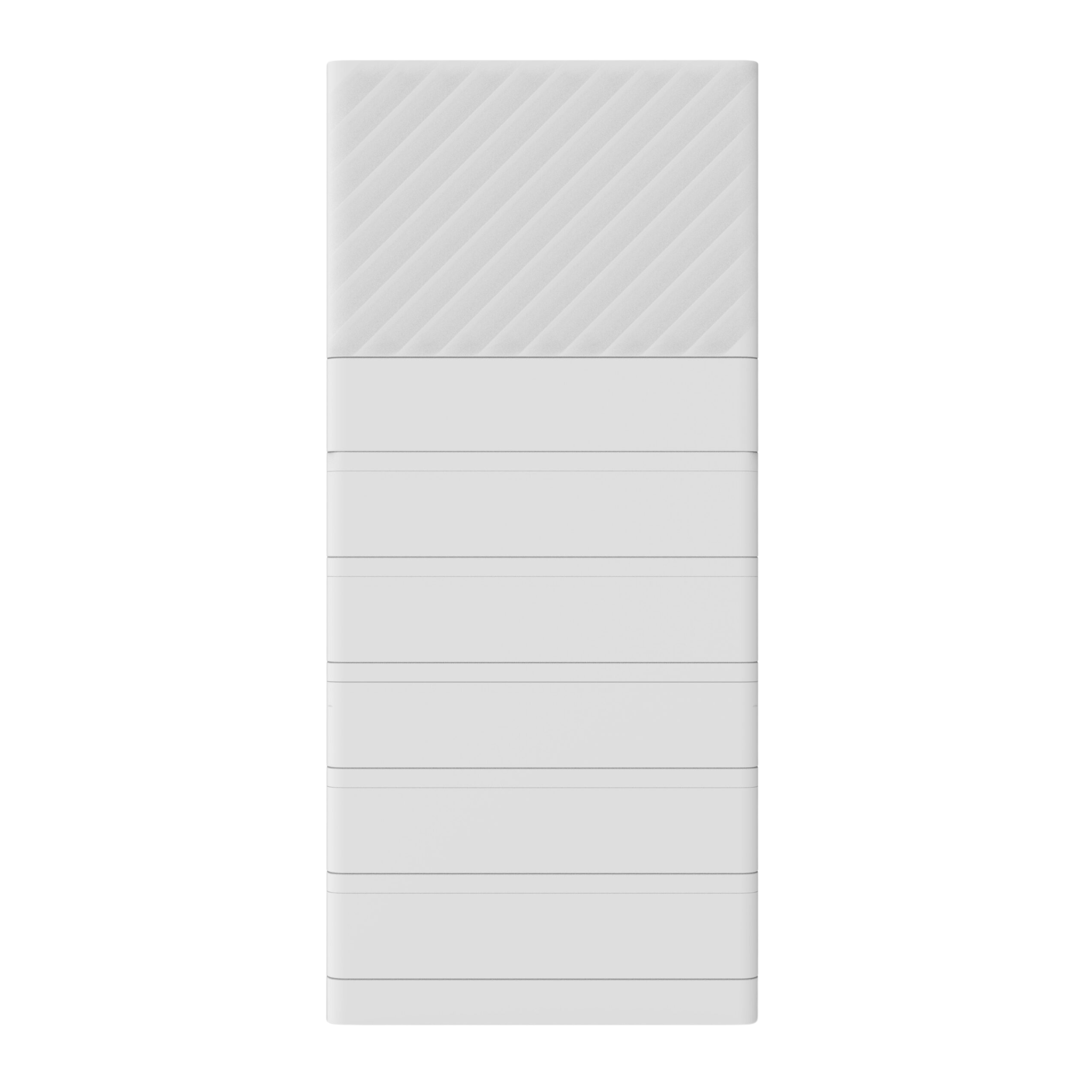

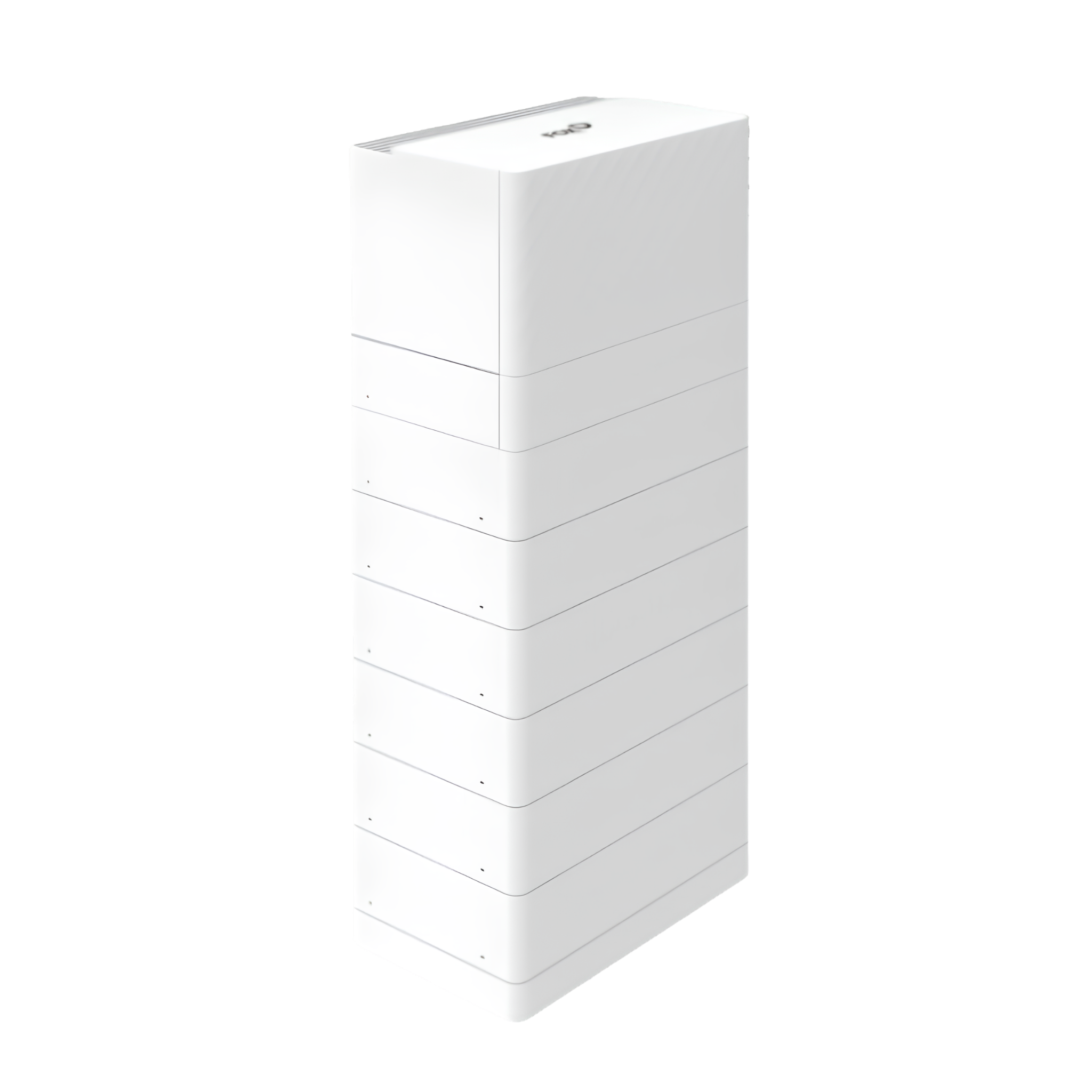

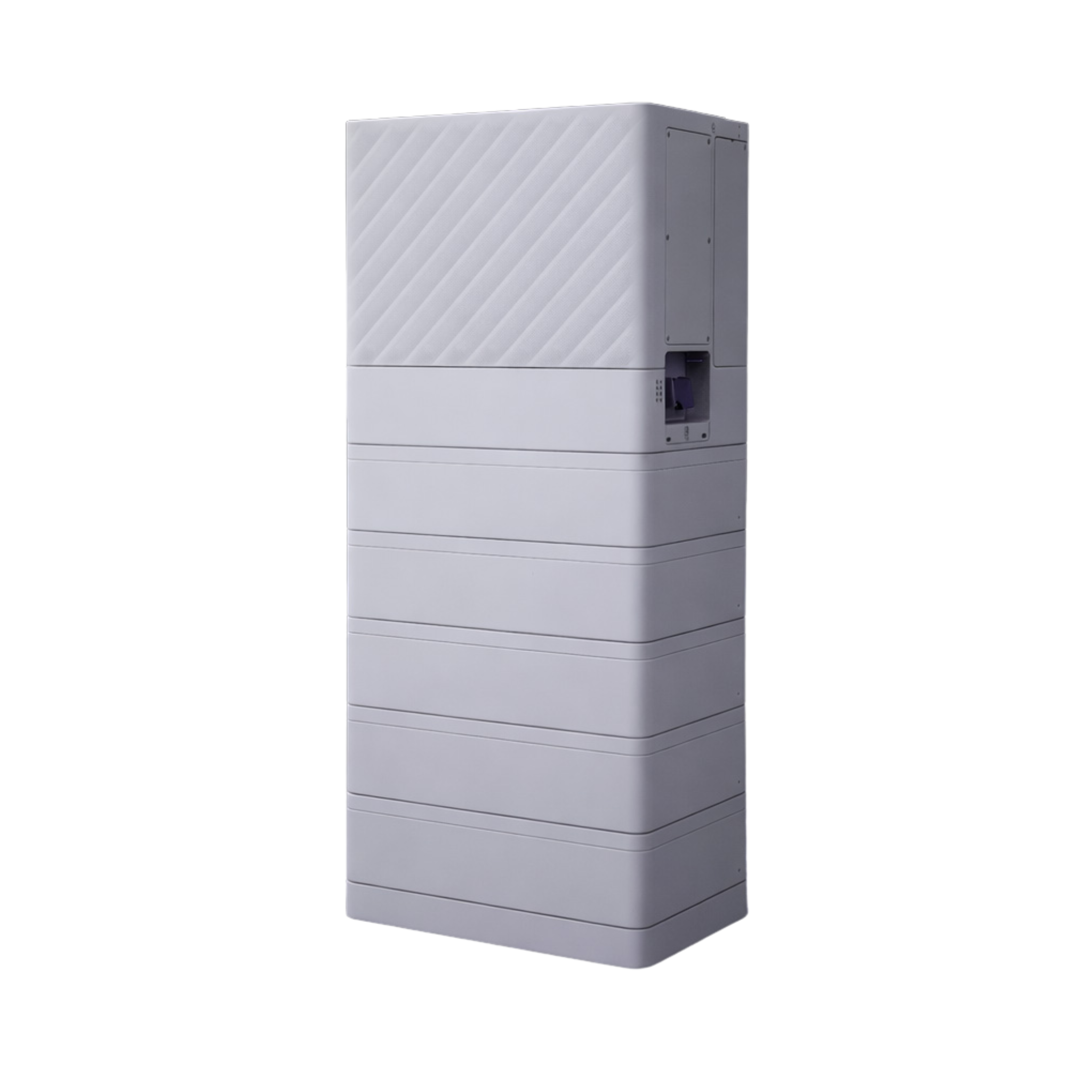

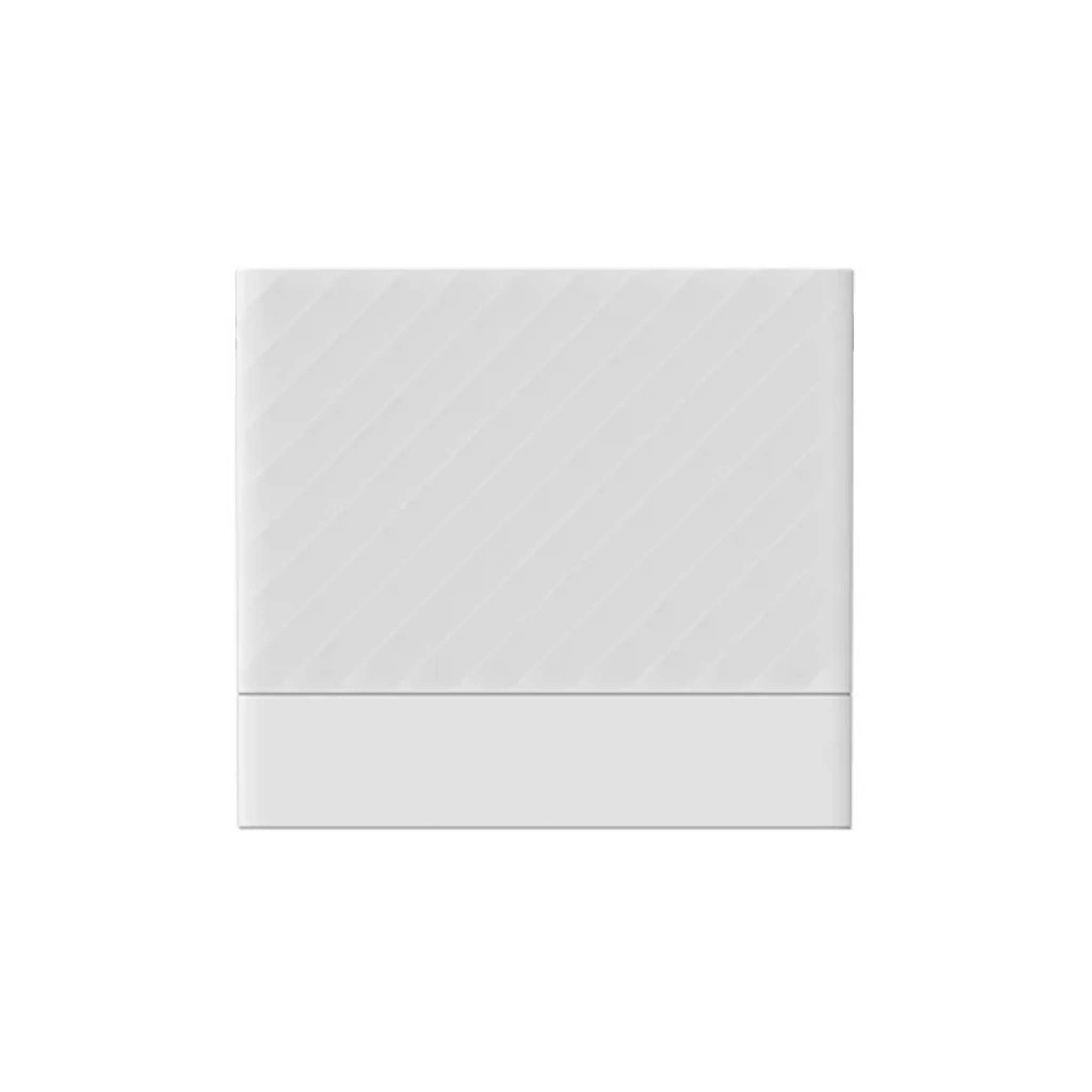

Fox Ess PQ1 5kW 1ph Hybrid Inverter

The Fox ESS PQ1 is a versatile and modular 1-phase stackable All-in-One (AIO) energy storage system designed for flexible and reliable power solutions.

Key Features

• Modular Design: Configurable with 3.7kW to 12kW inverters and 2 to 6 EQ5000-S batteries (9.84kWh to 29.52kWh storage) to meet specific installation needs.
• Seamless Backup: Features a built-in 63A bypass with a rapid 4ms switchover time from on-grid to off-grid for uninterrupted power during outages.
• PV Oversizing: Supports up to 200% PV oversizing, maximizing energy generation potential from your solar array.
• Easy Installation: Designed for single-person installation with integrated configuration and plug-and-play setup.
• Remote Monitoring: Advanced system monitoring via the FoxCloud V2.0 app or web portal for convenient remote access.

Specifications

• Type of Product: Inverter
• Dimensions: 570 x 420 x 380mm
• Max power: 5kW
• Max current: 25A
• Number of phases: 1
• Max PV input power: 15kW
• Max PV array power: 16kW
• Max MPPT input power: 8kW per MPPT
• Max input current: 20A per MPPT
• Max input voltage: 600V
• Start-up voltage: 80V
• MPPT voltage range: 80-550V
• No. of MPPTs: 2
• Strings per MPPT: 1
• Weight: 35kg
• IP rating: IP66
• Efficiency: 97.6%

Applications

Ideal for residential and commercial installations requiring flexible energy storage, grid-tied or off-grid operation, and seamless backup power. Suitable for new installations or as part of an upgrade to existing solar PV systems.

What's Included in the Box

• Fox Ess PQ1 5kW 1ph Hybrid Inverter

Why Buy This Product

• High Energy Efficiency: With an efficiency rating of 97.6%, it ensures maximum energy conversion, reducing waste and optimizing solar power utilization.
• Versatile Scalability: The modular design allows for precise capacity matching, from 9.84kWh to 29.52kWh, ensuring you only pay for the storage you need.
• Robust Durability: Rated IP66, this inverter is built to withstand harsh environmental conditions, ensuring long-term reliability.
• Sustainability: By enabling efficient solar energy usage and storage, it contributes to a reduced carbon footprint and long-term energy cost savings.
• Long Warranty: Backed by a 12-year warranty, providing peace of mind and reassurance of the product's durability and manufacturer support.

The Fox ESS PQ1 series represents a leap forward in integrated energy storage, offering unmatched flexibility and performance for modern solar power systems.
